Summary of Contents for thomann t.racks DL2/918
- Page 1 Instruction Manual...
-
Page 2: Important Safety Instruction
The lightni ng flash with a rrowhead synbol within an e quilateral triangle is intended to alert the us er to the pr esence of CAUTION uninsulated dangerous voltage within the product's enclosure, RISK OF ELECTRIC SHOCK that may be of sufficient m agnitude to co nstitute a risk of electric DO NOT OPEN shock to per sons. - Page 3 the t.racks model DL2/918 ◆ ∑ △ 24-bit, AD/DA, 48kHz sampling rate ◆ Stereo processor, delay, limit, noise gate independent channel control ◆ Maximal delay 2.7s/per channel (delay units representable in milliseconds, meters, feet). ◆ Delay adjust step: 1ms and 100ms selectable ◆...
-

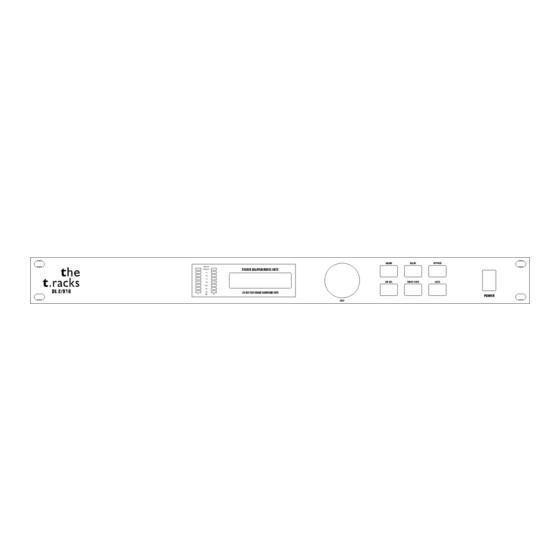

Page 4: Front Panel
FRONT PANEL 1, INPUT LED input level meter for Right/Left Channel 2, LCD: 16 2 characters LCD with backlit to display functions and operating status. 3, JOG-WHEEL: select the submenu and adjust the parameters value. 4, MENU: select the delay units and delay adjust step 5, DELAY: Delay operating button 6, BYPASS: Enable or disable the delay function 7, CH-SEL: To select the channel/ control MIDI function... -
Page 5: Rear Panel
REAR PANEL CAUTION TO REDUCE THE RISK OF FIRE REPLACE ONLY WITH THE SAME TYPE FUSE:T1A/ 250V 90V-250VAC ～ 50/60Hz 1, AC RECEPTACLE: Plug the power cord in here 2, XLR ANALOG OUTPUT-SOCKET 3, XLR ANALOG INPUT-SOCKET 4, INPUT LEVEL ADJUST 5, TRS ANALOG OUTPUT-SOCKET 6, TRS ANALOG INPUT-SOCKET 7, RS232: RESERVED, NOT AVAILABLE FOR USERS... -
Page 6: Operation
OPERATION 1, Default LCD open display as fig.1. In the upper area, the display shows the channel Left will be adjusted and delay function is on. Below, the delay time is displayed. Turn jog-wheel directly to adjust delay time. : Left D EL AY ON D el y 620m s... - Page 7 ＂ ＂ P ress the bypass button again, restore the delay function, the display show DELAY ON as fig.5. : Left DELAY ON D elay: 10 mSec. Fig.5 5, P ress the CH-SEL button, the display shows as fig.6, you can adjust the desired channel via the jog-wheel. Three options are available: Left, Right and Channel-link.
-
Page 8: Analog Input
ANALOG INPUT ＂ Receptacle XLR and 1/4 jack Type Balanced input Impedance Balanced: 40k ohm; Unbalanced: 20k ohm Input level -20dB~+4dB ANALOG OUTPUT ＂ Receptacle XLR and 1/4 jack Type Electronic balanced output Impedance Balanced: 66 ohm; Unbalanced: 33 ohm SYSTEM SPECIFICATION ±...
