Summary of Contents for Haier HW105-BP1239S8

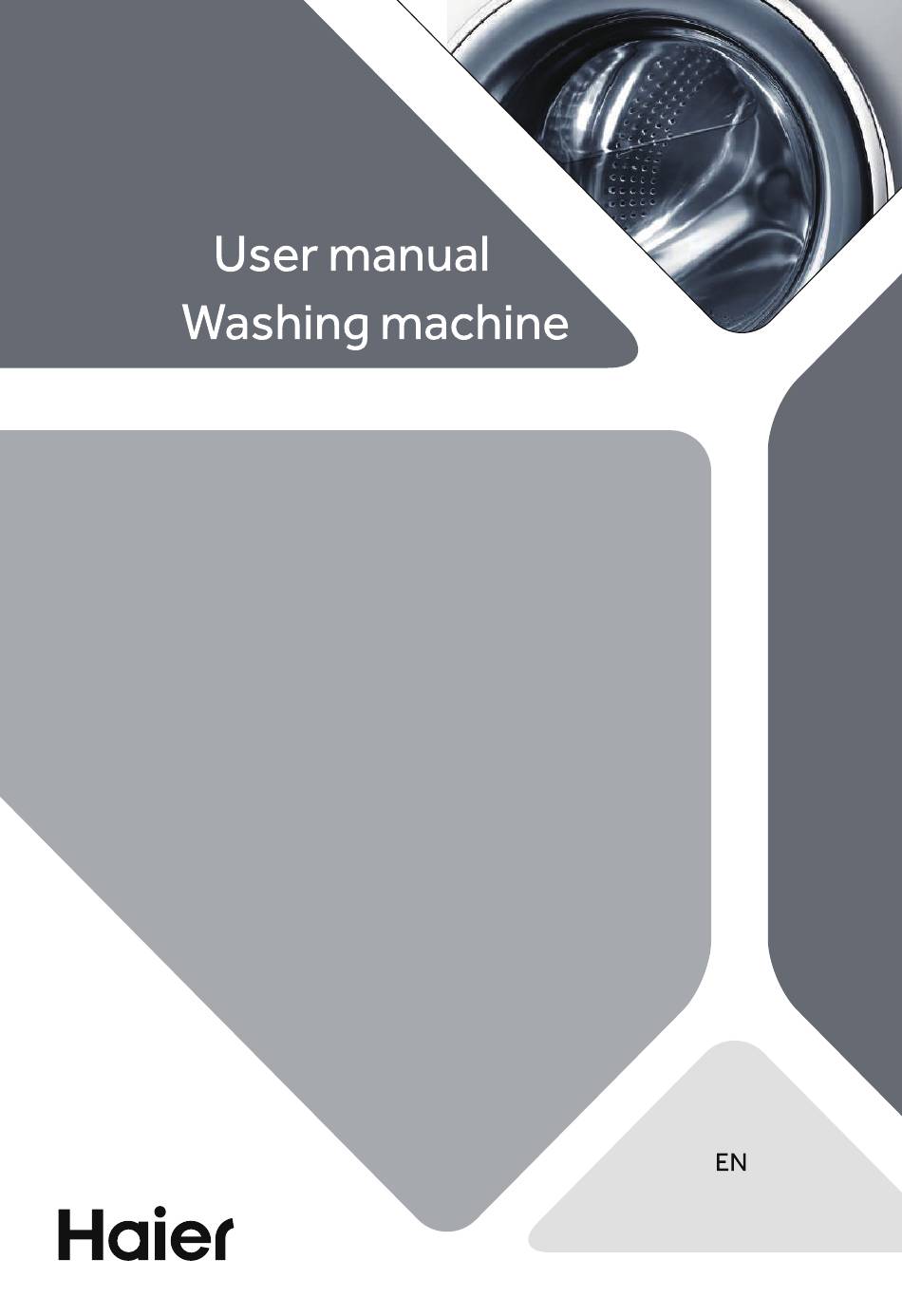

- Page 1 HW105-BP1239S8 HW80-BP1239S8...
- Page 2 Thank You Thank you for purchasing a Haier Product. Please read these instructions carefully before using this appliance. The instructions con- tain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.
-
Page 3: Table Of Contents
Content 1-Safety information ........................... 4 2-Product description ......................... 7 3-Control panel ............................ 8 4-Programmes ...........................11 5-Extra function ..........................12 6-Daily use ............................13 7-Environmentally responsible use ....................18 8-Care and cleaning ..........................19 9-Troubleshooting ..........................22 10-Installation .............................25 11-Technical data ..........................29... -
Page 4: 1-Safety Information
1-Safety information Before switching on the appliance for the first time read the follow- ing safety hints! WARNING! Before first use Make sure there is no transport damage. Make sure all transport bolts are removed. Remove all packaging and keep out of children´s reach. Handle the appliance always with at least two persons because it is heavy. - Page 5 1-Safety information WARNING! Daily use Do not remove or insert the plug in the presence of flammable gas. Do not hot wash foam rubber or sponge-like materials. Do not wash any laundry which is polluted with flour. Do not open detergent drawer during any wash cycle. Do not touch the door during the washing process, it gets hot.
- Page 6 1-Safety in formation WARNING! Installation Install or use the appliance only where the temperature is above 5 °C. Do not place the appliance directly on a carpet, or close to a wall or furniture. Do not install the appliance in direct sunlight or in the near of heat sources(e.g.
-
Page 7: 2-Product Description
2-Product description Note: 2.1 Picture of appliance Front (Fig. 2-1): Rear side (Fig. 2-2): 1 Transportation bolts (T1-T4) Power cord 1 Detergent / 5 Washer door Softener drawer Drain hose 6 Service flap 2 Work top Water inlet valve 7 Adjustable feet 3 Programme selector 4 Panel 2.2 Accessories... - Page 8 3.1 OFF Turn the knob to any position (except OFF) to start the machine. Turn knob the OFF position to shut down the machine(Fig. 3-2). By turning the knob(Fig. 3-3), one of 15 programmes (the OFF is not included) that can be selected, its def- ault settings will be displayed.
- Page 9 3.5.2 3.5.3 3.5.4 cted. Note: Factory settings To get the best results in each programme, Haier has well def ined specific default settings. If there is no special requirement, default settings are recommended. 3.5.1Function button “ Delay“ amme Press . g i with a delay.
-
Page 10: 3-Control Panel
3-Cont rol panel 3.5.3 Function button “Temp.“ Press this button (Fig. 3-9) to change the washing tem- perature of the programme. If no value is illuminated (the display“--°C”) the water will not be heated. 3.5.4 Function button“Speed“ 3-10 Press this button (Fig. 3-10) to change or deselect the spin of the programme. -
Page 11: 4-Programmes
4-Programmes Detergent compartment for: Detergent Softener or care product • Yes, Optional, º Temperature Max. load in °C Preset spin Programme Fabrics type washing in kg speed in rpm selectable range 10.5kg 8kg • Cotton * to 90 Cotton 1000 º... -
Page 12: 5-Extra Function
5-Extra function Options Programme Delay Steam Extra Rinse Cotton º º º º º º Hygiene º º º Baby Care º º º Jeans º º º Synthetics º º º Delicate º º Quick 15’ º º Softener Soak º... -
Page 13: 6-Daily Use
6-Daily use 6.1 Power supply Connect the washing machine to socket (220-240V/50Hz: Fig. 6-1). Please refer to section INSTALLTION (see P28). 6.2 Water connection Before connecting check the cleanliness and clar- ity of the water inlet. Turn on the tap (Fig.6-2). Note: Tightness Turning the tap to check for the joint leakage between the tap and water inlet hose before using. - Page 14 6-Daily use Care chart Washing Washable up to 95°C Washable up to 60°C Washable up to 60°C normal process normal process mild process Washable up to 40°C Washable up to 40°C Washable up to 40°C normal process mild process very mild process Washable up to 30°C Washable up to 30°C Washable up to 30°C...
- Page 15 6-Daily use 6.5 Selecting detergent Use only machine wash approved detergent. See tips for countertop detergent stickers. Do not use dry cleaning agents such as trichloroethylene and similar products. Choose the best detergent Kind of detergent Programme Universal Colour Delicate Special Softener Cotton...
- Page 16 6-Daily use 6.6 Adding detergent Slide out the detergent drawer. 2. Put the required chemicals into corresponding compartments (Fig. 6-4), 3. Push back the drawer gently. Note: Remove detergent residues before next wash cycle from the detergent drawer. Do not overuse detergent or softener. Please follow the instruction on the detergent package.
- Page 17 6-Daily use 6.10 Start wash programme Press “Start/Pause” button (Fig. 6-8) to start. Appliance operates according to present settings. Changes are only possible by cancelling the programme. 6.11 Interrupt / cancel wash programme To interrupt a running programme press gently “Start/Pause“. Press it again to resume operation.
-
Page 18: 7-Environmentally Responsible Use
7-Environmentally responsible use Environmentally responsible use To achieve best use of energy, water, detergent and time you should use the recom- mended maximum load size. Do not overload (hand width clearance above laundry). For slightly soiled laundry select the Quick 15’ programme. Apply exact dosages of each washing agent. -
Page 19: 8-Care And Cleaning
8-Care and cleaning 8.1 Cleaning the detergent drawer Take always care there are no detergent residues. Clean the drawer regularly (Fig. 8-1): 1. Pull out the drawer until it stops. 2. Press the release button and remove the drawer. 3. Flush the drawer with water until it is clean and insert the drawer back in the appliance. - Page 20 8-Care and cleaning 8.5 Long periods of disuse If the appliance is left idle for a longer period: 1. Pull out the electrical plug (Fig. 8-6). 3. Open the door to prevent formation of moisture and odours. Let door open while not used. Before next usage check carefully power cord, water inlet and drain hose.
- Page 21 8-Care and cleaning 8-14 8-15 (Fig. 8-14). 11. Close service fl ap. CAUTION! Pump filter sealing must be clean and unhurt. If the filter not fully tightened, water leakage will be occurred. The filter must be well-installed or it may lead to water leakage.
-
Page 22: 9-Troubleshooting
9-Troubleshooting of a problem please check all shown possibilities and follow below instructions before you WARNING! Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket. improper repairs can cause considerable consequential damages. A damaged power cable should only be replaced by the manufacturer, its service For the safety of the end-user ,self-repair or non-professional repair is not recommended. - Page 23 9-Troubleshooting Problem Cause Solution Temperature sensor error. Contact the After sales service. Contact the After sales service. Heating error. Motor error. Contact the After sales service. Contact the After sales service. Water level sensor error. FC0 / FC1 Abnormal communication error. Contact the After sales service.
- Page 24 9-Troubleshooting Problem Cause Solution Excessive foam • Detergent is not a appropriate. • Check detergent recommen- dations. • detergent drawer. Excessive use of detergent. • Reduce amount of detergent. • Automatic adjust- Washing programme duration will • This is normal and doesn‘t af- ment of washing be adjusted.
-
Page 25: 10-Installation
10-Installation 10.1 Preparation Take the appliance out of the packaging. keep them out of childrens reach. While opening the package, water drops may be seen on plastic bag and porthole. This normal phenomenon results from water tests in the factory. Note: Packaging disposal Keep all packaging materials out of children´s reach and dispose them in an environmen- tally friendly manner. - Page 26 10-Installation Note: Keep in safe place Keep all parts of the transport protection in a safe place for later use. Whenever the ap- 10.4 Moving the appliance If the machine need to be moved to a distant location, install the transportation bolts removed before installation to pervert damage.
- Page 27 10-Installation 10.6 Drain Water Connection Fix the water drain hose properly to the piping. The hose has to reach at one point a height between 80 and 100 cm above the appliance bottom line! If possible keep always drain WARNING! Use only the supplied hose set for the connection.
- Page 28 10-Installation 10.7 Fresh Water Connection 10-10 10-11 Make sure that the gaskets are inserted. 1. Connect the water inlet hose with the angled end to the appliance (Fig. 10-10). Tighten the screw joint by hand. 2. The other end connect to a water tap with a 3/4“...
-
Page 29: 11-Technical Data
11- T echnical data 11.1 Additional technical data HW105-BP1239S8 HW80-BP1239S8 Voltage in V 220-240V/50Hz 220-240V/50Hz Current in A Max. power in W 1850 1950 Water pressure in MPa 0.03≤P ≤1 0.03≤P ≤1 Netto weight in kg 11.2 Product dimensions FRONT VIEW... - Page 32 0020509869J...
