Item #1010 455 168
Model ##VW5024

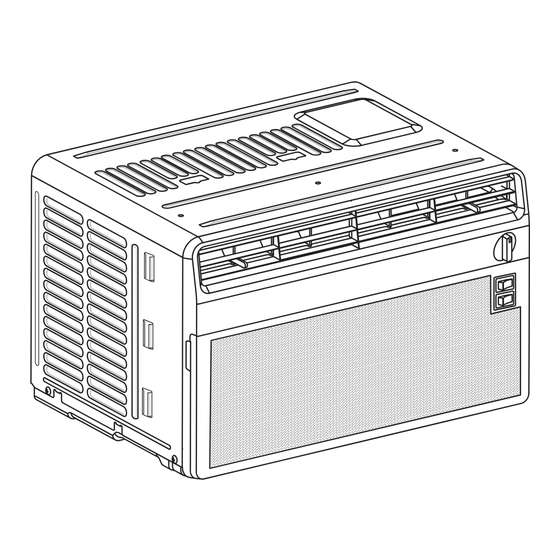

USE AND CARE GUIDE
AIR CONDITIONER
Questions, problems, missing parts?
Before returning to the store, call Vissani Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-VISSANI (1-855-847-7264)
HOMEDEPOT.COM
THANK YOU
We appreciate the trust and confidence you have placed in Vissani through the purchase of this aire conditioner.
We strive to continually create quality products designed to enhance your home. Visit us online to see our full line
of products available for your home improvement needs. Thank you for choosing Vissani!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vissani VW5024
Summary of Contents for Vissani VW5024
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Vissani through the purchase of this aire conditioner. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line...
-
Page 2: Table Of Contents
Table of Contents Safety Information ............2 Installation ..............9 Important Safety Instructions ........2 Operation..............11 Refrigerant (For R32 Only) ........5 Maintenance ..............12 Pre-Installation ............5 Cleaning ..............12 Electrical Data ............5 Troubleshooting ............13 Tools Required ............6 Before Calling for Service ........13 Hardware Included ...........6 Normal Sounds You May Hear ........13 Package Contents ............7 Exterior Parts ............7... - Page 3 □ Do not start/stop operation by plugging/ □ unplugging the power cord. Do not run cord under carpets or mats where it could be stepped on and damaged. HOMEDEPOT.COM Please contact 1-855-VISSANI (1-855-847-7264) for further assistance.
- Page 4 Safety Information (continued) □ When installing or moving the appliance, be careful GROUNDING INSTRUCTIONS not to pinch, crush, or damage the power cord. □ The power cord of this appliance is equipped with □ The supply and return air openings in the a three-prong (grounding) plug.
-
Page 5: Refrigerant (For R32 Only)
FOR 120V Use Wall Receptacle Power Supply Use 15 A, time delay fuse or 15 A, circuit breaker. Standard 120 V, 3-wire grounding receptacle rated 15 A / 120 VAC / 60 Hz HOMEDEPOT.COM Please contact 1-855-VISSANI (1-855-847-7264) for further assistance. -
Page 6: Tools Required
Pre-Installation (continued) WARNING: CAUTION: The conductors inside this cord are surrounded by shields, which monitor leakage current. □ This appliance should be installed in accordance with These shields are not grounded. Periodically examine the National Electrical Code. the cord for any damage. Do not use this product in the □... -
Page 8: Planning Installation
Pre-Installation (continued) PLANNING INSTALLATION How to install the unit CAUTION: DO NOT cover or block any of the side and top louvers. All side louvers of the cabinet must remain exposed to the outside of the structure and unobstructed. □ To prevent vibration and noise, make sure the unit is installed securely and firmly. -
Page 10: Installation
Installation (continued) Preparation of the chassis Unit installation NOTE: The bracket helps to hold unit securely in place. CAUTION: During the following step, hold unit firmly Be sure to place bracket edge flush against back of until window sash is lowered to top channel behind side inner sill. -
Page 11: Operation
□ Adjusting Horizontal Airflow Direction - The horizontal airflow is adjusted by moving the levers of the vertical louvers to the left or right. HOMEDEPOT.COM Please contact 1-855-VISSANI (1-855-847-7264) for further assistance. -
Page 12: Maintenance
□ For repair and maintenance, contact an Authorized Service Center. See the warranty page for details or call 1-855-VISSANI (1-855-847-7264). Have your model number and serial number available. They can □ Wash the filter using lukewarm water below be found on the side of the cabinet. -
Page 13: Troubleshooting
Unit may vibrate and make noise because of poor wall or window construction or incorrect installation. 5. Pinging or Swishing Droplets of water hitting condenser during normal operation may cause pinging or swishing sounds. HOMEDEPOT.COM Please contact 1-855-VISSANI (1-855-847-7264) for further assistance. - Page 14 Troubleshooting (continued) Problem Possible Cause Solution □ Make sure the air conditioner plug The air conditioner is unplugged. is pushed completely into the outlet. □ Check the house fuse/circuit The fuse is blown/circuit breaker is breaker box and replace the fuse tripped.
- Page 15 Window vibration - poor installation. or check with installer. □ Turn the knob toward the Cool The temp control may not be set Room too cold. area for the indoor air to become correctly. warmer. HOMEDEPOT.COM Please contact 1-855-VISSANI (1-855-847-7264) for further assistance.
- Page 16 Questions, problems, missing parts? Before returning to the store, call Vissani Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-VISSANI (1-855-847-7264) HOMEDEPOT.COM Retain this manual for future use.
