SKU #1007086601
Model #VPA06

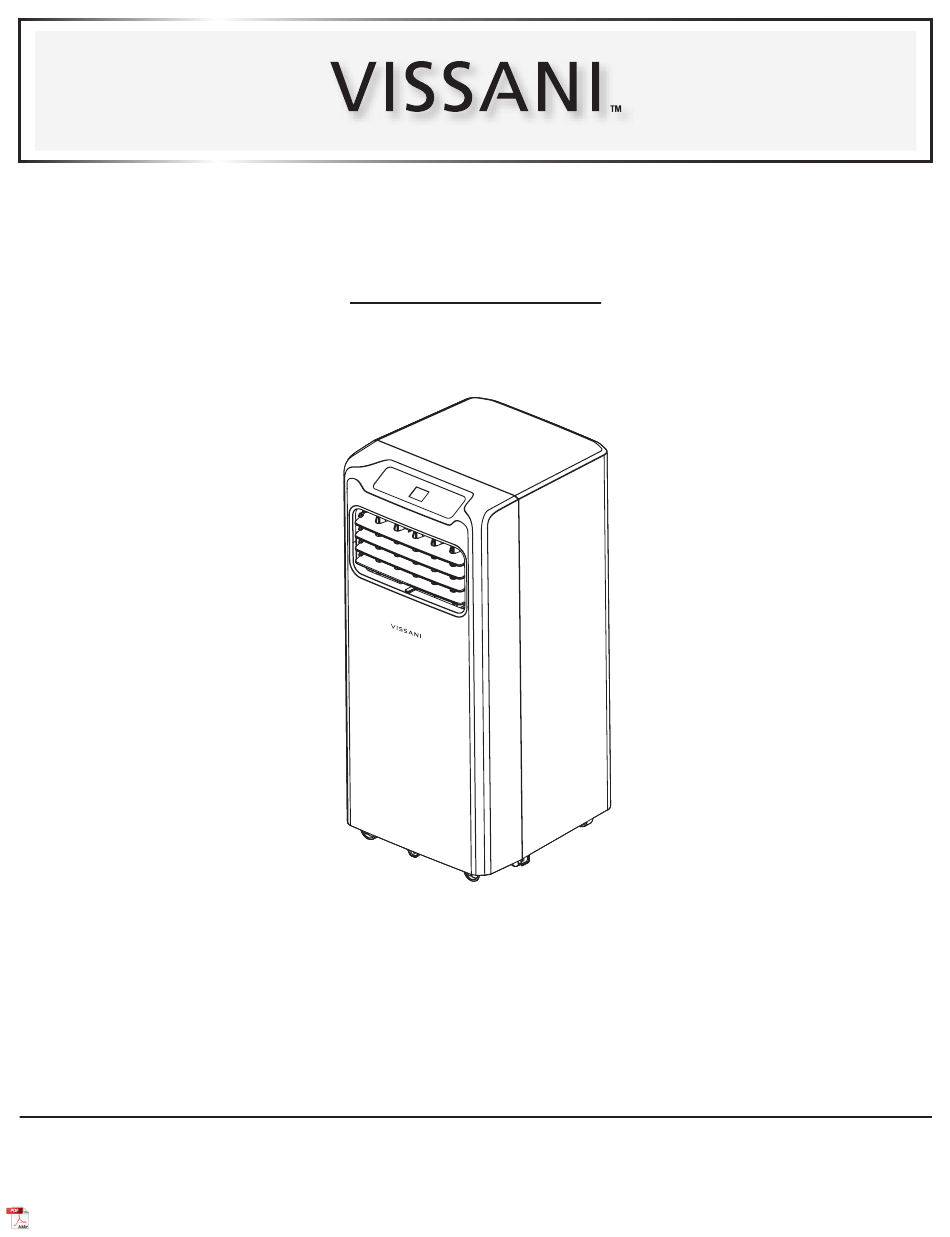

USE AND CARE GUIDE
PORTABLE AIR CONDITIONER
Questions, problems, missing parts? Before returning to the store,
call Vissani Customer Service
8 a.m. – 7 p.m., EST, Monday–Friday, 9 a.m. – 6 p.m., EST, Saturday
1-877-527-0313
HOMEDEPOT.COM
THANK YOU
We appreciate the trust and confidence you have placed in Vissani through the purchase of this air conditioner. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Vissani!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vissani VPA06
Summary of Contents for Vissani VPA06
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Vissani through the purchase of this air conditioner. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Safety Information ........2 Location Requirements . -
Page 3: Pre-Installation
Pre-Installation PLANNING INSTALLATION Gather the required tools and parts before starting installation. Check that all parts are included in parts package. Read and follow the instructions provided with any tools listed here. TOOLS REQUIRED Phillips Cordless Scissors Pencil 1/8 in. bit screwdriver drill HARDWARE INCLUDED... -
Page 4: Package Contents
Pre-Installation (continued) NOTE: □ Mercury free super heavy duty R03 UM-4 size AAA 1.5V. □ Best used before date code (month-year) on the bottom. □ Caution for ingestion: the battery may cause suffocation if swallowed by children. □ Do not mix old and new batteries. Do not mix alkaline, standard (carbon - zinc), or rechargeable (nickel - cadmium) batteries. □... -
Page 5: Electrical Requirements
Pre-Installation (continued) ELECTRICAL REQUIREMENTS WARNING: □ Plug into a grounded 3-prong outlet. □ Do not remove ground prong. □ Do not use an adapter. □ Do not use an extension cord. □ Failure to follow these instructions can result in death, fire, or electrical shock. Recommended Grounding Method This portable air conditioner must be grounded. -
Page 6: Location Requirements
Pre-Installation (continued) LOCATION REQUIREMENTS The flexible exhaust hose allows placement of the air conditioner at least 20 in. from window or door. Confirm you are using the correct size air conditioner for the space to be cooled, per sizing recommendations, below: Area to be cooled DOE capacity needed (BTUs) Up to 10 ft x 15 ft room... -
Page 7: Unpack The Air Conditioner
Pre-Installation (continued) UNPACK THE AIR CONDITIONER WARNING: Use two or more people to move and install air conditioner. Failure to do so can result in back or other injury. Remove Packaging Materials □ Remove and recycle packaging materials. □ Remove tape and glue residue from surfaces before turning on the air conditioner. Rub a small amount of liquid dish soap over the adhesive with your fingers. -
Page 8: Installation
Installation Attaching Exhaust Hose and Adapter to Air Conditioner □ Roll the air conditioner to selected location. See “Location Requirements” on page 6. □ Press the flexible exhaust hose (CC) into the coupling (BB) and the window exhaust adapter (DD). Both the coupling and window exhaust adapter have integral clips that snap onto the hose. - Page 9 Installation (continued) Installing in Vertical Sliding Window NOTE: The window installation kit can be used with vertical sliding windows between 18 in. and 50 in. wide. □ Cut the foam seal (LL) (adhesive type-long) and foam seal (MM) (adhesive type-shorter) to the proper length, and attach it to the window sash and frame.
- Page 10 Installation (continued) Installing in Vertical Sliding Window (continued) □ Align the tabs on the window exhaust adapter (DD) with the slots (1) in the vent panel (HH). Insert the window exhaust adapter (DD) into the opening in the vent panel (HH). □...
- Page 11 Installation (continued) Installing in Horizontal Sliding Window (continued) □ Cut the foam seal (AA) (non-adhesive type) to the window width. □ Stuff the foam seal (AA) between the glass and the window to prevent air and foreign objects from getting into the room.
-
Page 12: Operation
Operation Operating your portable air conditioner properly helps you to obtain the best possible results. This section explains proper air conditioner operation. □ Do not stay in direct airflow from the air conditioner for extended periods of time. IMPORTANT: Keep upright at least 2 hours before use to prevent damaging the □... - Page 13 Operation (continued) FAN SPEED □ Press and release FAN to choose the desired fan speed. □ High - for maximum fan speed □ Low - for minimum fan speed TEMPERATURE □ Press the PLUS button to raise the temperature. Press the PLUS button once to increase the set temperature by 1 °F (1 °C).
- Page 14 Operation (continued) Using the Remote Control (continued) HOW TO USE □ To operate the room air conditioner, aim the remote control at the signal receptor (1). □ The remote control will operate the air conditioner at a distance of up to 23 ft.
- Page 15 Operation (continued) Using the Remote Control (continued) DIMMER □ Press the DIMMER button to turn off the control panel display. NOTE: When in DIMMER mode, new control inputs will return display to normal. SLEEP MODE □ Sleep mode can only be set in Cooling or Drying modes. When in sleep mode the unit will utilize lower, quieter fan speeds and automatic temperature adjustments offering 8 hours of optimal sleeping conditions before shutting off.
- Page 16 Operation (continued) Using the Remote Control (continued) TIMER □ Use the TIMER function to turn the air conditioner ON/OFF automatically. Setting the Air Conditioner to Turn On: □ Plug in the air conditioner and use the remote to power it ON. □...
-
Page 17: Care And Cleaning
Care and Cleaning Draining the Air Conditioner WARNING: Excessive Weight Hazard Use two or more people to move and install the air conditioner. Failure to do so can result in back or other injury. □ Unplug the air conditioner or disconnect power. □... - Page 18 Care and Cleaning (continued) Cleaning the Air Filter □ Press ON/OFF to turn off the air conditioner. □ Open the filter panel door (1) on the back of the air conditioner and remove. □ Use a vacuum cleaner to clean the filter. If the filter is very dirty, wash the filter in warm water with a mild detergent.
-
Page 19: Troubleshooting
Troubleshooting Before calling for service, please try the suggestions below. Problem Solution Air conditioner will not operate DANGER: ELECTRICAL SHOCK HAZARD □ Plug into a grounded 3-prong outlet. □ Do not remove ground prong. □ Do not use an adapter. □... - Page 20 Troubleshooting (continued) Problem Solution □ A door or window is open. Keep doors and windows closed. Air Conditioner seems to run too much □ The current air conditioner replaced an older model. The use of more efficient components may cause the air conditioner to run longer than an older model, but the total energy consumption will be less.
- Page 21 HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
- Page 22 Questions, problems, missing parts? Before returning to the store, call Vissani Customer Service 8 a.m. - 7 p.m., EST, Monday -Friday, 9 a.m. - 6 p.m., EST, Saturday 1-877-527-0313 HOMEDEPOT.COM Retain this manual for future use.
