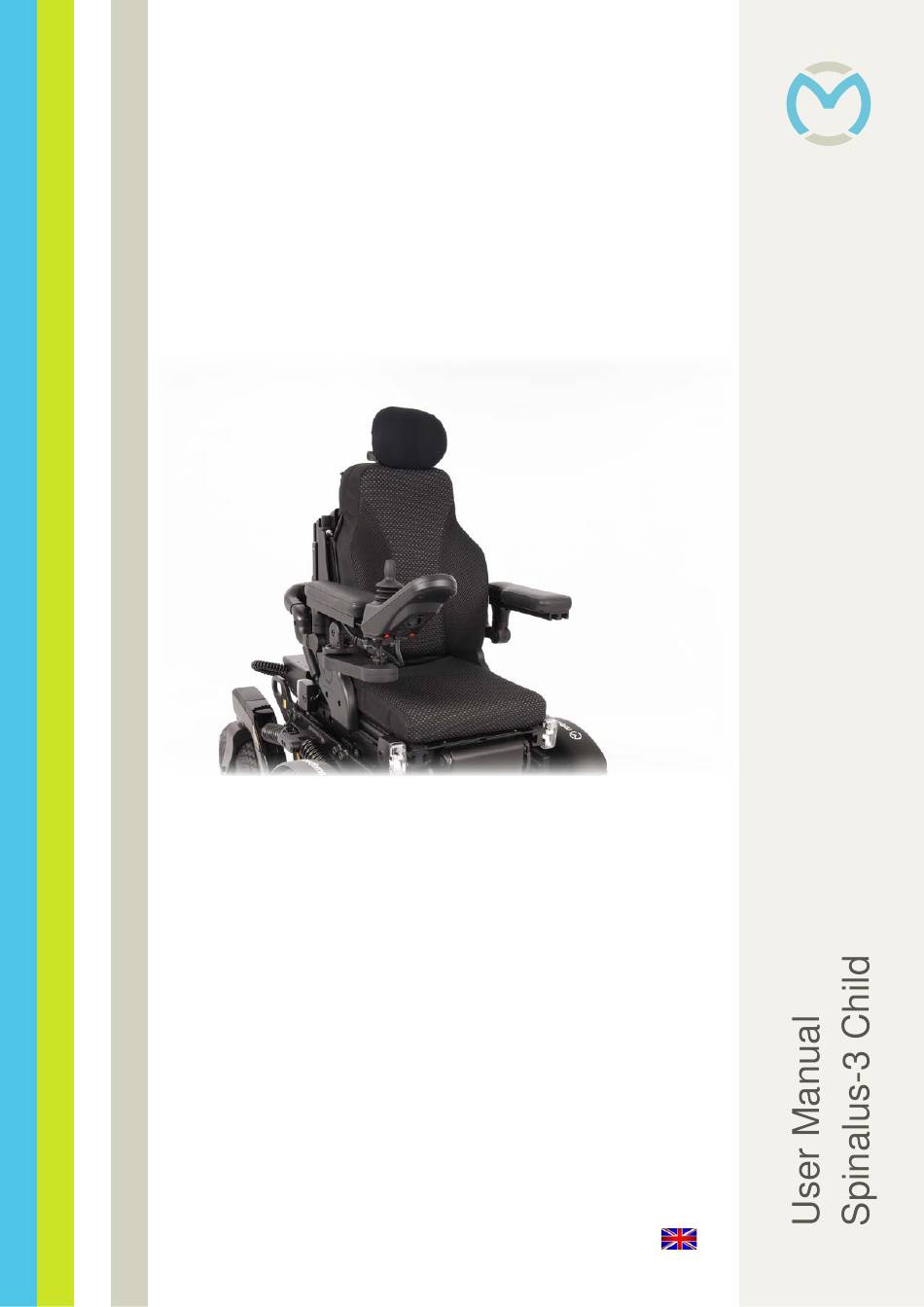

  • Page 1 2433-2038-B ver. 1.0.0 - 2024 - 03...
  • Page 2 Medema Production A/S Serial number: ___-______________-______-_______ Delivery date: ________________ Year 20______ This vehicle was supplied by: Date: Dealer: User guide 2433-2038-B 2 of 20 Version 1.0.0/2024...

  • Page 3: Table Of Contents

    Medema Production A/S Contents Spinalus-3 settings..............4 Adjusting the height of the backrest ........4 Stepless adjustment of seat depth ........5 Adjustment of armrests ............6 Dismantling the armrest ............8 Adjusting the headrest ............9 Adjustment of the seat width ..........10 Dynamic recline ..............

  • Page 4: Spinalus-3 Settings

    Medema Production A/S Spinalus-3 settings Spinalus-3 is designed to stay safe to use for at least 10 years Adjusting the height of the backrest The backrest can be ad- justed up/down in several sections. The top part of the backrest is, from the factory, mount- ed in the top hole.

  • Page 5: Stepless Adjustment Of Seat Depth

    Medema Production A/S Stepless adjustment of seat depth Seat depth are step less adjusted between 15 and 45 cm. Due to the construction of the back, the seat depth adjustment have no influ- ence on the other geometry in the backrest. Remove the cover on both sides.

  • Page 6: Adjustment Of Armrests

    Medema Production A/S Adjustment of armrests Forward/backward Adjust the armrest forw./backw. Loosen these two screws - adjust - tighten the screws again. Further forward Remove the armrest, see above, and turn the bracket 180° by loosen the screw - turn bracket - tighten screw again. Angle up/down (first joint) Loose the screw - adjust - and tighten the screw again.
  • Page 7 Medema Production A/S Angle up/down (second joint) Loosen the two nuts, and by screwing the screw in or out the angle changes. By using the Angle up/down in both first and sencond joints in combination, you can raise or lower the armrest. Angle in/out Loosen the two sucket set screw so they are not visible in the “window”.

  • Page 8: Dismantling The Armrest

    Medema Production A/S Armrest up/down Second joint Adjust the armrest up/down. Loosen these three screws - adjust - tighten the screws again. Adjust the angle up/down in second joint, to make the armrest level again. See earlier descroption. Dismantling the armrest Remove the armrest com- pletely, by loosen the sucket set screw that holds it in place.

  • Page 9: Adjusting The Headrest

    Medema Production A/S Adjusting the headrest The headrest is designed to stay safe to use for at least 10 years. The headrest is multi-adjustable. Adjustments can be made in all joints. Tool: Allen key 4 mm The headrest pad can be adjusted in all directions, by loosen the four screws.

  • Page 10: Adjustment Of The Seat Width

    Medema Production A/S Adjustment of the seat width The Spinalus-3 seating sys- tem is full modular seating system from 28 to 38 cm in seat width. In steps of 5 cm. When changing from one seat width to another, all that need to be changed, is the cushions.

  • Page 11: Dynamic Recline

    Medema Production A/S Dynamic recline In the outer holes (hole 1) the seat back is lowered 50 mm. You can adjust how far the seat back moves down during re- cline. Move the two screws (in both sides) as shown in the set of holes.

  • Page 12: Swing-Away Fitting For Spinalus-3

    Medema Production A/S Swing-away fitting for Spinalus-3 Our Swing away fitting for Spinalus-3 have many adjustment features, to place the joystick to fit you perfectly. The Swing away is designed to stay safe to use for at least 10 years. Justering av hardhet.

  • Page 13: Adjustment In The Depth Of The Armrests

    Medema Production A/S Adjustment in the depth of the armrests Fold up the armrest. Two screws hold the control box to the armrest. Loosen the screws. Control box Fixing and thus the Joystick can now be moved in depth to the desired position.

  • Page 14: Joystick Height Adjustment

    Medema Production A/S Joystick height adjustment By loosening this screw, the joystick can be adjust- ed up / down, with center in this axis. Tool: Torx T30 Find the right location. And tighten the screw again. Tool: Torx T30 This setting also affects how far the joystick folds under the armrest.

  • Page 15: Replace Joystick

    Medema Production A/S Replace joystick The Joystick is attached to a bracket with two screws Remove the two screws, and unplug the plug. Mount a new in reverse order. Remember! To fix the cabel again with cable ties. Tool: Allen key 4 mm Switch joystick to opposite armrest Remove the two screws that hold the swing away...
  • Page 16 Medema Production A/S When the Swing away is moved to opposite arm- rests, it no longer sits in the extension of the armrest. It needs to be adjusted. Verktøy: Torx T25 Adjust these two joints for the correct position of the Swing away Attach the cable.

  • Page 17: Technical Data

    Min 440 mm / Max 470 mm Seat surface height at front edge (floor to top of seat frame) Spinalus-3 (not tilted) 390, 430, 450 mm Backrest angle (Spinalus-3 child) Min 0° / Max 50° (**) Backrest height (Spinalus-3 child) Seat width 280 mm...
