Summary of Contents for medemagroup MC 1124

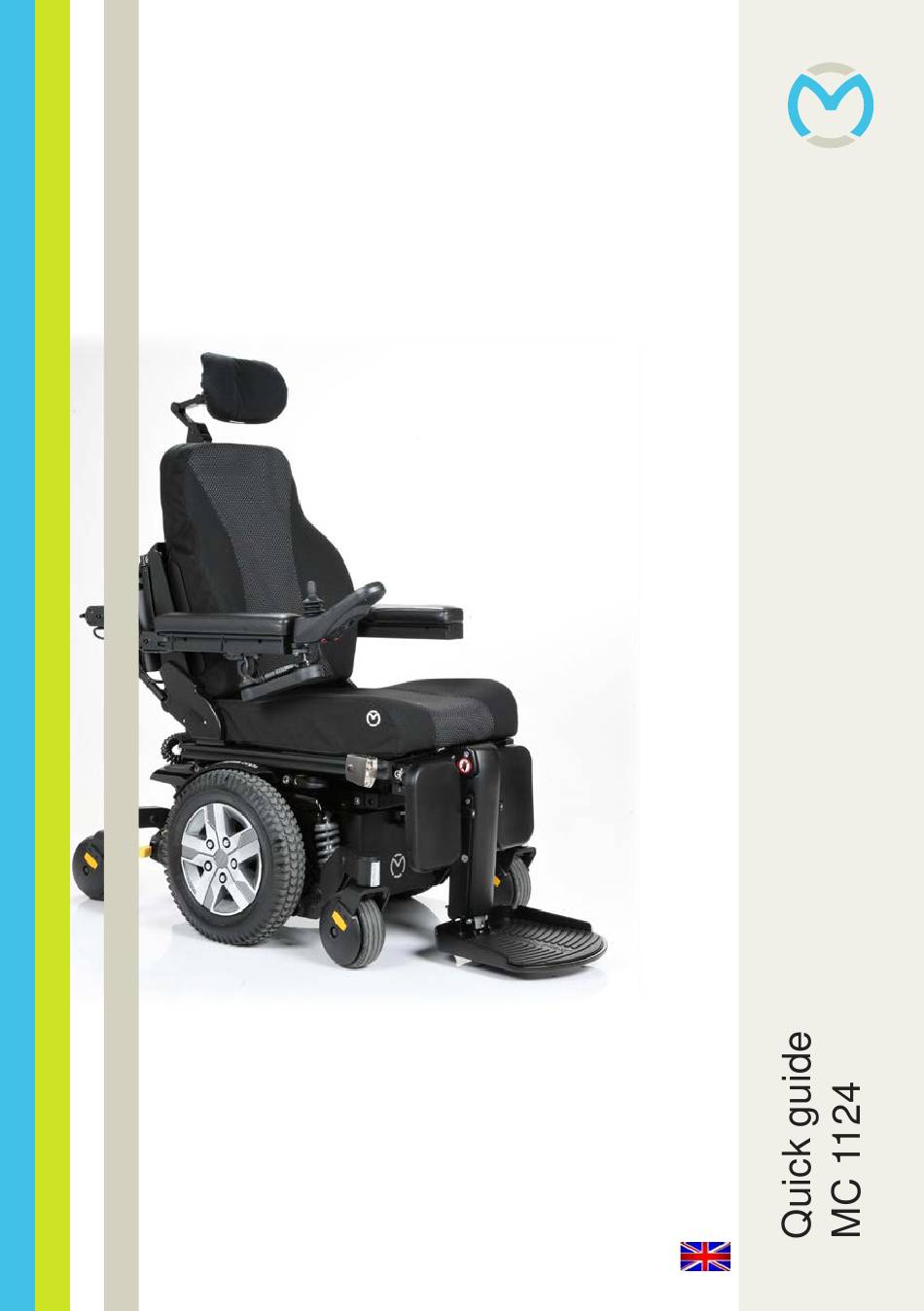

- Page 1 2433-2007-Q ver. 2.0.0 - May 2021...
- Page 2 Medema Production A/S 2 of 20 Quick guide 2433-2007-Q Version 2.0.0/2021...
-
Page 3: Table Of Contents
Set Background ..................9 Adjusting seat and footrest ..............10 Trouble shooting ..................12 Charging ....................13 Driving the MC 1124 ................14 10 tips for driving the MC 1124: ............15 Driving on public roads: .................16 Driving on stairs/escalators: ..............16 Brakes.......................17 Motor braking: ..................17 Parking brake: ..................17... -
Page 4: Quick Guide - Mc 1124
For optimum enjoyment of this vehicle - and to avoid breakdowns and accidents - we recommend that you read the User Manual carefully. If you are a new user, you should pay particular attention to the section “Driving the MC 1124”. Note: This Quick Guide is to be regarded as a supplement to the User Manual. -
Page 5: Part Names
Medema Production A/S Part names The part names given below refer to the descriptions later in the this guide. Headrest Adjusting the headrest Armrest Control panel Charging socket Joystick Release for Swing-away leg supports release Eye for restraints Footplate or footrests Eye for restraints Pivot wheel Leg length... -
Page 6: Introduction Cjsm1
Medema Production A/S Introduction CJSM1 CJSM1 is a full programmable module based controller system, that makes it possible for the user to fully control movement and speed. Designations - buttons CJSM1 Start/stop-button Indicator right Function button Set up / change profile Horn Joystick Speed decrease... -
Page 7: Set Display Time
Medema Production A/S A right joystick deflection will enter a clock adjustment screen in which further joystick deflections are used to set the time. Choose Exit to save and return to the main screen. Set Display Time Choose the menu Display Time with the joystick. -
Page 8: Set Distance
Medema Production A/S Set Distance This sets the functionality of the odometer and a screen as below will appear. Total Distance show the total distance this chair has driven with this Power module. Trip Distance show the dis- tance driven since last reset. Select in this menu which value to show on the main screen. -
Page 9: Set Backlight
Medema Production A/S Set Backlight This sets the intensity of the LCD backlight. The adjustable range is 0% to 100% in steps of 10%. Adjust- ments are made with left and right joystick deflections. Set Background The standard setting from the factory is blue. -
Page 10: Adjusting Seat And Footrest
Medema Production A/S Adjusting seat and footrest Turn on the joystick and press the Function button (Mode) Use the joystick left/right to select the function you want to adjust. Press the joystick up/ down to adjust. Function Icon Tilt ... - Page 11 Medema Production A/S System lock Locking the system Press and hold the ON/OFF button down for four seconds while the system is ON. Push the joystick forward until your hear a beep. Push the joystick back until you hear a beep. Now the system is locked. Unlock the system Push the joystick forward until your hear a beep.
-
Page 12: Trouble Shooting
Medema Production A/S Trouble shooting If a system trip occurs, you can find out what has happened by counting the number of LEDs on the battery gauge that are flashing. Below is a list of self-help actions. Try to use this list before you contact your service agent. -
Page 13: Charging
Medema Production A/S Charging Charging Plug the cable into the control box on the wheelchair Plug the charger into the outlet or switch it on Use the indicator lights on the charger to check that charging has started. When charging has finished, switch off or unplug the charger, and then remove the charger cable from the control box. -
Page 14: Driving The Mc 1124
Medema Production A/S Driving the MC 1124 Before getting on or off the vehicle, you must check the following: That the wheelchair is switched off and that it is not disengaged. That the wheelchair and the seat you are moving to are both stable. -
Page 15: 10 Tips For Driving The Mc 1124
• Not to be used for towing other vehicles, etc. Note: Do not drive the MC 1124 when under the influence. This applies to both medicine and alcohol. Warning! If the vehicle behaves abnormally in any way - makes noises, smells burnt, etc. -
Page 16: Driving On Public Roads
Medema Production A/S Driving on public roads: When driving on public roads, footpaths, pedestrian streets, car parks, shopping centres, etc. you must make sure you adjust your speed and distance for other users. At 7 km/h you must follow the traffic rules applica- ble to cyclists. -
Page 17: Brakes
Medema Production A/S Brakes The MC 1124 is equipped with two sets of brakes: The motor brake and the parking brake. Motor braking: When you drive downhill, the control unit of the MC 1124 applies the motor brake. Parking brake: When the vehicle is stationary and the joystick is not moved, a magnetic brake is automatically applied to each drive unit. -
Page 18: Safety Check
Medema Production A/S Normal position for driving - pushed Position for disengagement - pushed down Safety check See the User Manual Serial number All wheelchairs have a serial number plate showing the year of production, month and serial number. The same serial number can also be found on the front of the User Manual. - Page 19 Medema Production A/S 19 of 20 Quick guide 2433-2007-Q Version 2.0.0/2021...
- Page 20 medemagroup...
