Summary of Contents for Dahua H5B

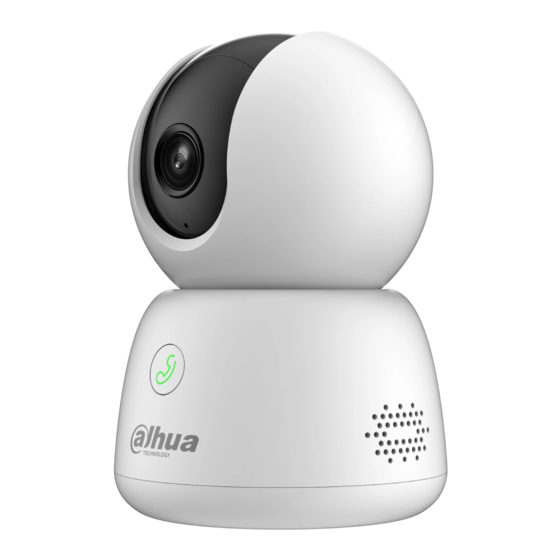

- Page 1 Pan/Tilt Wi-Fi Camera Quick Start Guide ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V1.0.2...
-
Page 2: Foreword
Quick Start Guide Foreword General This manual introduces the installation and operations of network camera. Read carefully before using the device, and keep the manual safe for future reference. Safety Instructions The following signal words might appear in the manual. Signal Words Meaning Indicates a medium or low potential hazard which, if not avoided,... - Page 3 Quick Start Guide All the designs and software are subject to change without prior written notice. Product updates ● might result in some differences appearing between the actual product and the manual. Please contact customer service for the latest program and supplementary documentation. There might be deviations in the description of the technical data, functions and operations, or ●...
-
Page 4: Important Safeguards And Warnings
Quick Start Guide Important Safeguards and Warnings This section introduces content covering the proper handling of the device, hazard prevention, and prevention of property damage. Read carefully before using the device, comply with the guidelines when using it. Transportation Requirements Transport the device under allowed humidity and temperature conditions. - Page 5 Quick Start Guide Do not place heavy stress on the device, violently vibrate or immerse it in liquid during ● installation. An emergency disconnect device must be installed during installation and wiring at a readily ● accessible location for emergency power cut-off. We recommend you use the device with a lightning protection device for stronger protection ●...
- Page 6 Quick Start Guide Maintenance Requirements Strictly follow the instructions to disassemble the device. Non-professionals dismantling the ● device can result in it leaking water or producing poor quality images. For a device that is required to be disassembled before use, make sure the seal ring is flat and in the seal groove when putting the cover back on.
-
Page 7: Table Of Contents
Quick Start Guide Table of Contents Foreword................................I Important Safeguards and Warnings......................III 1 Network Configuration........................... 1 1.1 Initializing the Camera.......................... 1 1.2 Changing the Device IP Address......................2 2 Operating with DMSS............................3 3 Installation............................... 5 3.1 Packing List.............................5 3.2 Installing the Camera..........................5 3.2.1 (Optional) Installing the SD Card.................... -
Page 8: Network Configuration
Quick Start Guide 1 Network Configuration Device initialization and IP configurations can be managed through ConfigTool. Device initialization is available on select models, and is required at first-time use and after the ● device is reset. Device initialization is available only when the IP addresses of the device (192.168.1.108 by ●... -
Page 9: Changing The Device Ip Address
Quick Start Guide Step 4 Click Finish. 1.2 Changing the Device IP Address Background Information You can change the IP address of one or more devices at a time. This section uses changing IP ● addresses in batches as an example. Changing IP addresses in batches is available only when the corresponding devices have the ●... -
Page 10: Operating With Dmss
Quick Start Guide 2 Operating with DMSS This section uses DMSS on the iOS system as an example. Prerequisites Make sure that your phone is connected to Wi-Fi, and Bluetooth is enabled on your phone. Procedure On the Device screen of DMSS, tap , and then tap Scan QR Code. - Page 11 Quick Start Guide Figure 2-2 Configure the device information...
-
Page 12: Installation
Quick Start Guide 3 Installation 3.1 Packing List Tools required for installation, such as the electric drill, are not included in the package. ● The operation manual and information on the tools are on the disk or the QR code. ●... -
Page 13: Attaching The Camera
Quick Start Guide Figure 3-2 Install the SD card 3.2.2 Attaching the Camera Make sure that the mounting surface is strong enough to hold at least 3 times the weight of the camera and bracket. Figure 3-3 Attaching the camera... -
Page 14: Adjusting The Lens Angle
Quick Start Guide 3.2.3 Adjusting the Lens Angle Figure 3-4 Adjust the lens angle...
