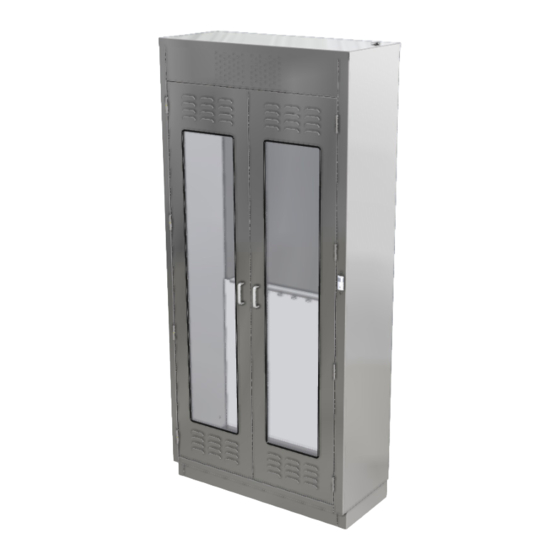

- Page 1 INSTRUCTION MANUAL Interior of Endoscope Cabinet (shown with optional slope top) Vented Endoscope Cabinets Read and understand all of the instructions and safety information in this manual before operating this product. 3/2024 MAN-040 Rev H © 2024 MAC Medical, Inc.
- Page 2 Functional and operational requirements are consistent with all MAC Medical scope cabinets. However, custom scope cabinets may use part numbers not specified in this manual. Call Customer Service for assistance.
-
Page 3: Warnings And Cautions
MAC Medical, Inc., or by other manufacturers, unless such a combination has been specifically endorsed, in writing, by MAC Medical, Inc. - Page 4 Instruction Manual This Page Left Blank Intentionally MAN-040 www.macmedical.com...
-
Page 5: General Specifications
Custom cabinet physical sizes are also available. Call customer service if interested in a custom size. Model # Vent Style Scope Qty Dimensions MSCA23618-301 36” X 18” X 92” MSCA23624-301 36” X 24” X 92” Flat Top MSCA24218-301 42”... - Page 6 Instruction Manual Scope Cabinet Features Item # Description Scope Hangers 9-22 Lower Scope Rack Access Panel Drain Pan Padded Back Digital Time Switch HEPA Filter Electrical Box MAN-040 www.macmedical.com...
-
Page 7: Unpacking And Inspection Instructions
3. Remove the plastic protective wrapping. Carefully inspect the Endoscope Cabinet while unpacking. If it appears damaged or defective in any way, call your MAC Medical representative. Retain all shipping materials until the cabinet is completely unpacked and inspected for damage. -
Page 8: Installation Requirements
Instruction Manual Installation Requirements The following instructions should be followed during the installation of the Endoscope Cabinet. • Check all local building codes prior to installation of the Endoscope Cabinet. • Do not lift cabinets by their handles or by the front flanges on recessed models in order to avoid damaging the cabinets. -
Page 9: Installation
Instruction Manual Installation According to the latest AORN guidelines, endoscope storage cabinets should not be placed in the medical procedure room. 1. Place the scope cabinet in a separate clean and secure location close to the procedure room. 2. IMPORTANT: Clean and thoroughly disinfect the endoscope cabinet prior to its first use. Then afterward follow a regular schedule for cleaning and disinfecting the cabinet. -
Page 10: Accessing The Switch
Instruction Manual Accessing the Switch The switch must be accessed through the access panel located in the interior righthand side of the cabinet. The switch must be partially removed from the cabinet in order to access the switch Calibration button. 1. - Page 11 Instruction Manual Adjust Switch 1. Enter Settings Mode by pressing the Calibration Button (located on the left, behind the faceplate - Fig. 7). LCD Display A. If no input occurs within four seconds, the display flashes then moves to the next setting. B.
-
Page 12: Replacing The Hepa Filter
Instruction Manual Replacing the HEPA Filter 1. Turn off the fan or unplug the cabinet for power vented models. 2. To access the HEPA filter (part #H0213), remove the two screws (shown in green) from the Filter Access Panel (Fig. 9 - shown in yellow). - Page 13 Instruction Manual Operation and Best Practices IMPORTANT: The user is responsible for thoroughly cleaning, performing high-level disinfecting, and thorough leak testing of the endoscopes used in any medical procedures BEFORE placing them in the scope cabinet for storage. Follow your institution’s cleaning and disinfection procedures. According to the SGNA 2016 guidelines, the drying operation provided by the scope cabinet is a critical last step in the disinfection of endoscopes.
- Page 14 Instruction Manual Cleaning the Endoscope Cabinet 1. Remove dirt, blood, and other organic soil. 2. Always clean the cabinet prior to disinfection to avoid compromising the disinfectant’s effectiveness. 3. Dust first, then remove any stubborn deposits with a damp sponge. 4.
- Page 15 Instruction Manual Cleaning Solutions and Materials for Stainless Steel Endoscope Cabinets Stainless steel Endoscope Cabinets must be cleaned on a regular basis to prevent any unnecessary damage to the stainless steel surfaces and to prevent contamination. Spilled liquids and standing water should be cleaned up immediately.
-
Page 16: Replacement Parts
Instruction Manual Replacement Parts Replacement parts listed and illustrated on this page are serviceable by facility technicians and are available for purchase. To obtain MAC Medical, Inc., certified parts, contact your MAC Medical, Inc., representative. Part # Description H0213 HEPA Filter... - Page 17 Instruction Manual Training, Cleaning and Maintenance Record For your convenience, here is a simple chart to use to note which personnel have been trained to safely use and maintain the scope cabinet. Personnel Trained Date of Training Cabinet Operation Cleaning Procedures Disinfecting (Y/N) (Y/N)
- Page 18 Instruction Manual Notes MAN-040 www.macmedical.com...
-
Page 19: Warranty Information
WHETHER EXPRESS OR IMPLIED, OF FITNESS AND / OR MERCHANTABILITY OR ANY OTHER WARRANTY IMPLIED BY CUSTOM, USAGE OR COURSE OF DEALING. Liability of MAC Medical under this warranty is limited to the repair and / or replacement of any products. MAC Medical specifically excludes and disclaims any responsibility for any incidental or consequential damages claimed to have arisen from any defect in workmanship or materials. - Page 20 To place an order, contact our customer service department at 618-476-3550 or 877-828-9975 or by email at sales@macmedical.com Customer needs are our first priority. MAC Medical, Inc. Printed in USA Corporate Office Manufacturing Plant Publication No. MAN-040 Rev H 200 Admiral Weinel Blvd.
