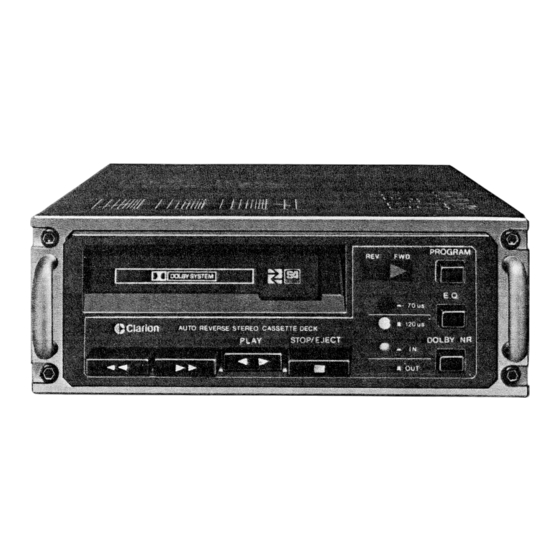

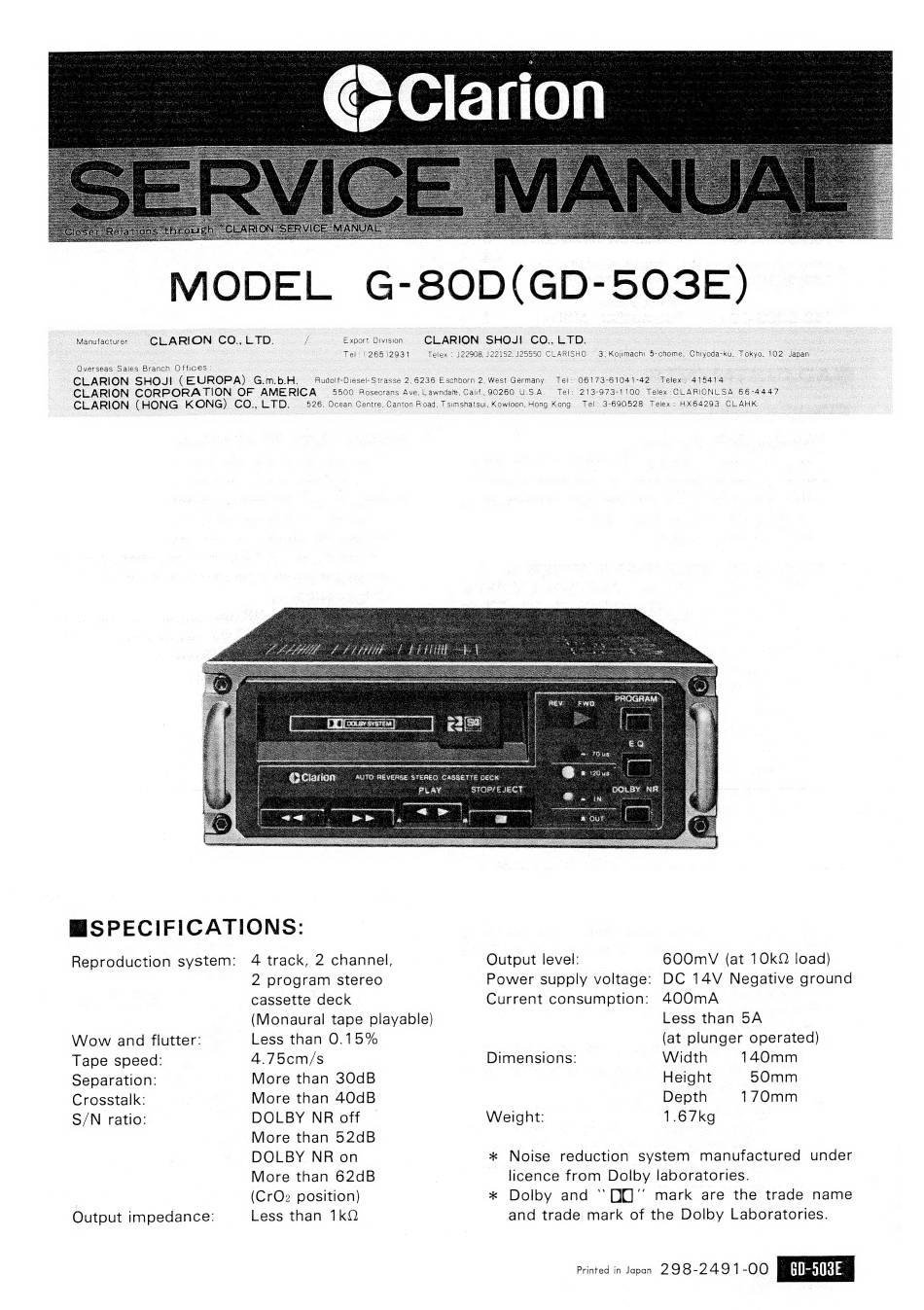

Clarion G-80D Service Manual

CLARION SHOJI. (EUROPA) Gree
CLARION CORPORATION OF 'AMERICA
_ CLARION ( HONG KONG) CO.,LTD
° Export Division
MISPECIFICATIONS:
Reproduction system: 4 track, 2 channel,
Wow and flutter:
Tape speed:
Separation:
Crosstalk:
S/N ratio:
Output impedance:
2 program stereo
cassette deck
(Monaural tape playable)
Less than 0.15%
4.75cm/s
More than 30dB
More than 40dB
DOLBY NR off
More than 52dB
DOLBY NR on
More than 62dB
(CrOz position)
Less than 1kQ
oe CLARION SHOJI CO. LTD.
: Tel:(265)2931 Telex:
oe CLARISHO 3. folnach 5-chome
Rudollt- Diesel Strasse 2, 6236 Econuorn 2, West Germany Tel: 06173- 6104 "42
- 5500 Rosecrans Ave, Lawndale, Calif.90260 USA. Tel: 213- 973- 1100 'Tele ARIONL S:
(526, Ocean Centre, Canton Road, T simshatsui, Kowloon, Hong Kong. Tel: 3- 690528 Telex: HXxé 4293 ah
Output level:
Power supply voltage:
Current consumption:
Dimensions:
Weight:
600mvV (at 10kQ load)
DC 14V Negative ground
400mA
Less than 5A
(at plunger operated)
Width 140mm
Height 5Omm
Depth 170mm
1.67kg
* Noise reduction system manufactured under
licence from Dolby laboratories.
* Dolby and
fg mark are the trade name
and trade mark of the Dolby Laboratories.
