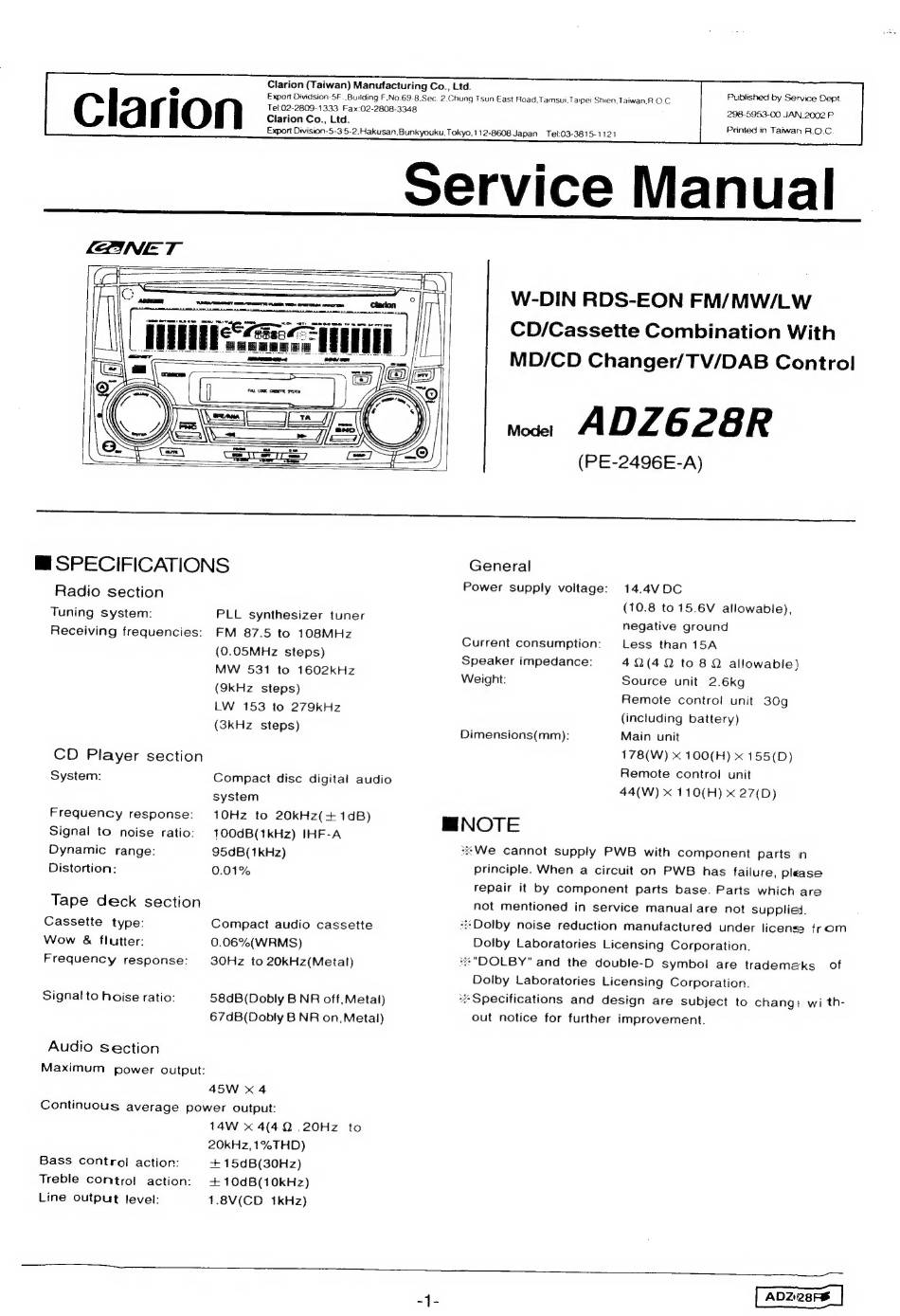

Clarion ADZ62ER Service Manual

Clarion Co., Ltd.
Clarion Clarion (Taiwan) Manufacturing Co., Ltd.
Export Dividsion-5F .._Building F .No.69-8.Sec 2.Chung Tsun East Road, Tamsui.Tapei
Shien. Taiwan.R OC
Tel:02-2809-1333 Fax:02-2808-3348
Published by Service Dept
298-5953-00 JAN.2002 P
Printed in Taiwan R.O.C
=e ve nome re mame ar
267, at T
LT teense TTT
ADZ62ER
(PE-2496E-A)
Mi SPECIFICATIONS
Radio section
Tuning system:
Receiving frequencies:
PLL synthesizer tuner
FM 87.5 to 108MHz
(0.05MHz steps)
MW 531 to 1602kHz
(9kHz steps)
LW 153 to 279kHz
(3kHz steps)
CD Player section
System:
Compact disc digital audio
system
10HzZ to 20kHz{(+1dB)
100dB(1kHz) IHF-A
95dB(1kHz)
0.01%
Frequency response:
Signal to noise ratio:
Dynamic range:
Distortion:
Tape deck section
Cassette type:
Wow & flutter:
Frequency response:
Compact audio cassette
0.06%(WRMS)
30Hz to 20kHz(Metal)
58dB(Dobly B NR off,Metal)
67dB(Dobly B NR on, Metal)
Signal to hoise ratio:
Audio section
Maximum
power output:
45W x4
Continuous average power output:
14W x 4(4Q .20Hz to
20kHz,1%THD)
+ 15dB(30Hz)
+ 10dB(10kHz)
1.8V(CD 1kHz)
Bass control action:
Treble contro! action:
Line output level:
General
Power
Current consumption:
Speaker impedance:
Weight:
Dimensions(mm):
14.4V DC
(10.8 to 15.6V allowable),
negative ground
Less than 15A
40(4Q to 8Q allowable)
Source unit 2.6kg
Remote control unit 30g
(including battery)
Main unit
178(W) x 100(H) x 155(D)
Remote control unit
44(W) x 110(H) x 27(D)
supply voitage:
MNOTE
"~We
AD228R8
