Clarion ( Malaysia) Sdn. Bhd.
Phase 3, Free Trade Zone One, 11900 Bayan Lepas, Penang, Malaysia
Tel: (60) 4-6439-106, Fax: (60) 4-6439-108
Clarion Co. Ltd.
Export Division : 22-3, Shibuya 2 - chome, Shibuyaku, Tokyo, 150-8335 Japan
Tel: 03-3400-1121
Published by Clarion (Malaysia)
298-5734-00 APR. 1999 P
Printed In Malaysia
Clarion

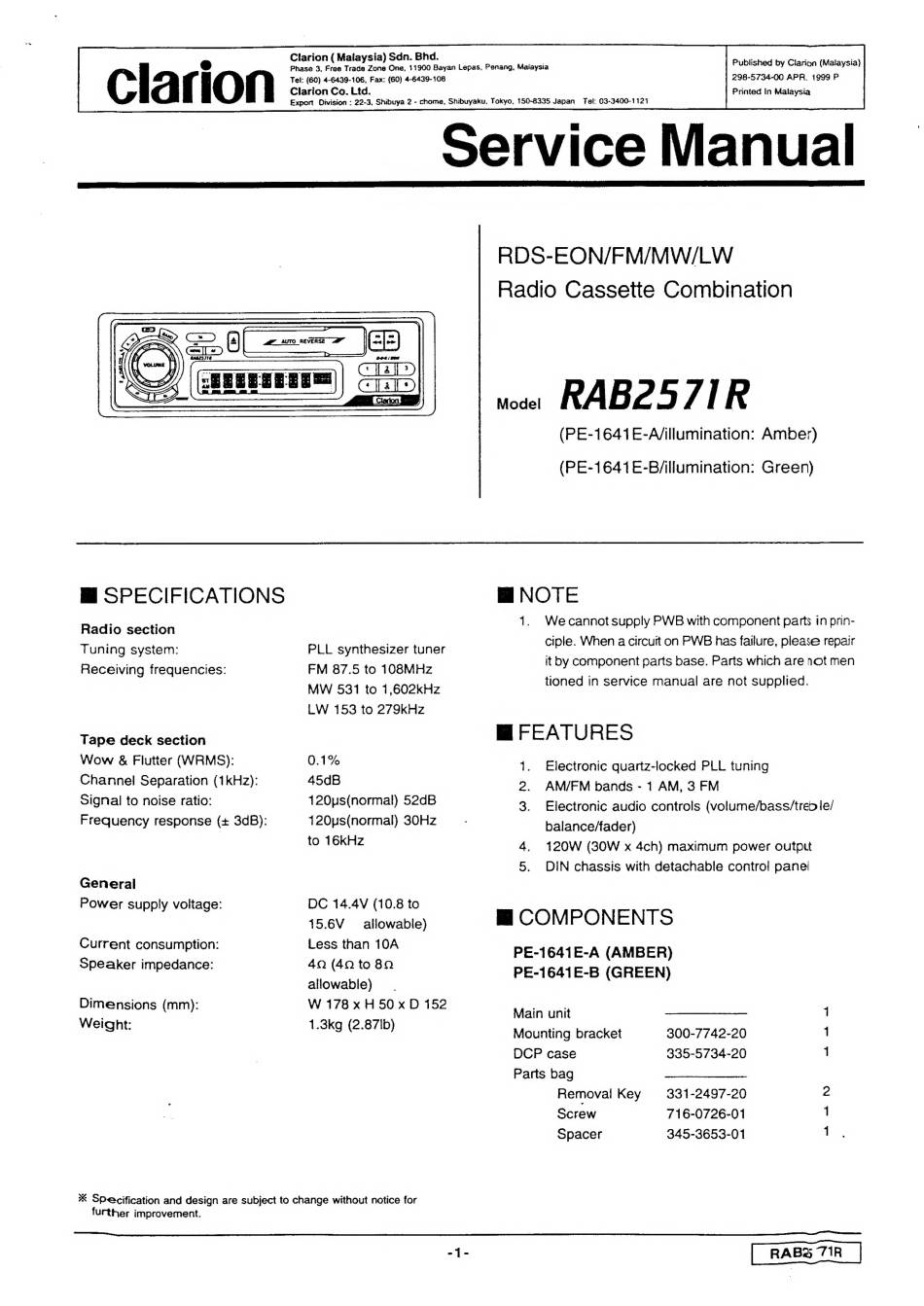

Service Manual
Mi SPECIFICATIONS
Radio section
Tuning system:
Receiving frequencies:
Tape deck section
Wow & Flutter (WRMS):
Channel Separation (1kHz):
Signal to noise ratio:
Frequency response (+ 3dB):
u
S06
/ fee
PLL synthesizer tuner
FM 87.5 to 108MHz
MW 531 to 1,602kHz
LW 153 to 279kHz
0.1 %
45dB
120ps(normal) 52dB
120ps(normal) 30Hz
to 16kKHz
RDS-EON/FM/MW/LW

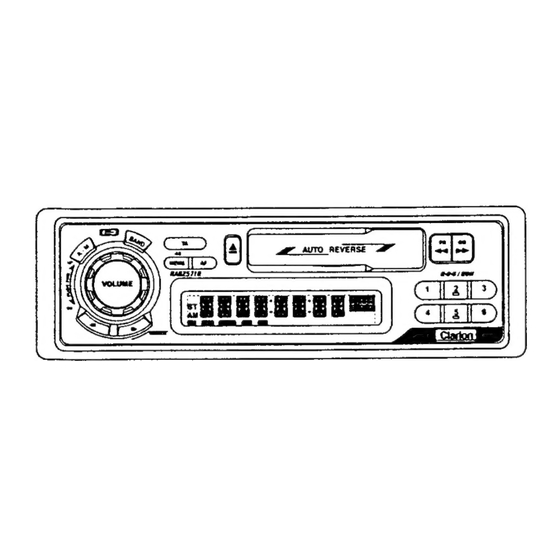

Radio Cassette Combination
vost RABZS7IR
(PE-1641E-A/illumination: Amber)
(PE-1641E-B/illumination: Green)
MNOTE
1.
Wecannot supply PWB with component parts in prin-
ciple. When a circuit on PWB has failure, please repair
it by component parts base. Parts which are not men
tioned in service manual are not supplied.
MFEATURES
1.
Electronic quartz-locked PLL tuning
2.
AM/FM bands - 1 AM, 3 FM
3.
Electronic audio controls (volume/bass/tred le/
balance/fader)
4.
120W (30W x 4ch) maximum power output
5.
DIN chassis with detachable control panel
General
Power supply voltage:
DC 14.4V (10.8 to
15.6V
allowable)
a COMPONENTS
=i
PE-1641E-A (AMBER
PE-1641E-B (GREEN)
allowable)
Dimensions (mm):
W 178 x H 50 x D 152
Main unit
———$<——
1
% Specification and design are subject to change without notice for
further improvement.
as
RAB 71R
