Instructions for
BA3101 and BA3102
Pageant Operator Displays
BEKA associates Ltd. Old Charlton Rd, Hitchin, Hertfordshire,
SG5 2DA, UK
Tel: +44(0)1462 438301
web:
www.beka.co.uk
1. INTRODUCTION
The BA3101 and BA3102 are IECEx, ATEX and UKEX
certified intrinsically safe Operator Displays. They are the
core of the Pageant Operator Display System comprising
a 7 inch backlit display with 8 touch buttons, plus 8 sockets
which can accommodate a single CPU module and up to 7
input and output modules.
BA3101 and BA3102 Operator Displays are mechanically
and electrically identical, except for their display windows
and certification. The BA3101 has a stainless steel front
panel surrounding a toughened glass display window.
The BA3102 has a stainless steel front panel surrounding
an impact resistant polycarbonate window with a scratch
resistant exterior hard coating.
allows the Operator Display to be installed in an Ex e or Ex t
enclosure without invalidating the enclosure's certification.
Pageant Operator Displays are CE marked to show compliance with the European Explosive Atmospheres
Operator Displays are also UKCA marked to show compliance with UK statutory requirements
Equipment and Protective Systems Intended for Use in Potentially Explosive Atmospheres Regulations
UKSI 2016:1107 (as amended) and with the Electromagnetic Compatibility Regulations UKSI 2016:1091.
Issue 5
8th May 2024
e-mail:
sales@beka.co.uk
The BA3102 certification
Directive 2014/34/EU and the European EMC Directive 2014/30/EU.
Both models have third party certified !P66 front panel
ingress protection.
Operator Displays and all of the plug-in modules have
individual intrinsic safety apparatus certificates. Compatible
input and output safety parameters allow any certified
BEKA plug-in Pageant CPU module to be fitted in display
socket 'C'. Similarly, any certified BEKA plug-in Pageant
input or output module may be fitted into sockets 1 to 7,
providing the sum of the percentage power consumption of
all the modules fitted does not exceed 100%. See Pageant
System Operator Panel instructions for further details.
Apart from an earth stud, all field connections to the
Pageant Operator Displays are made via removable
terminals on the plug-in modules.
Operator Display
1 2
3 4
5 6
Sockets for up to
7 plug-in Input and
Output Modules
Socket for plug-in
CPU Module 'C' socket

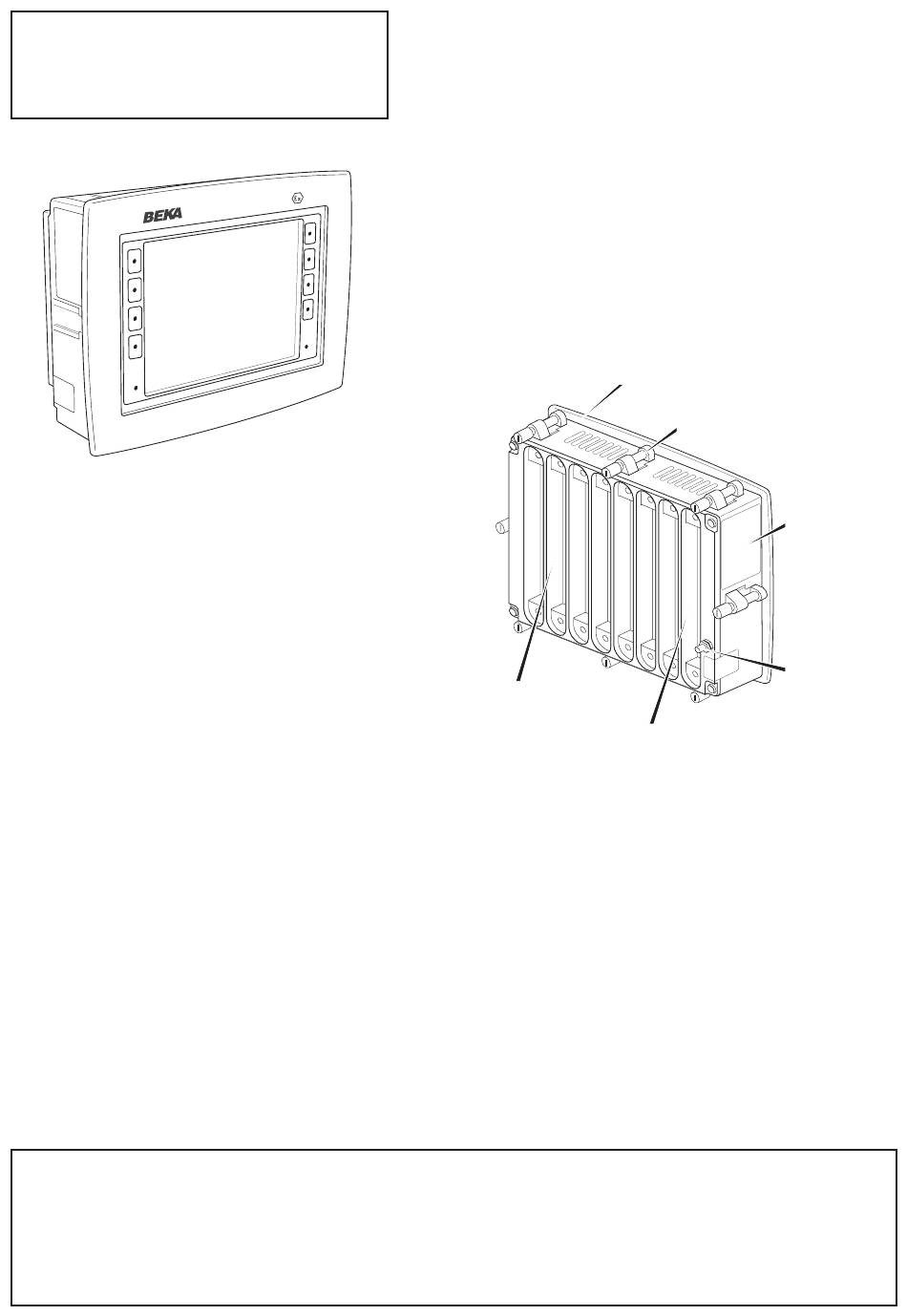

Fig 1
Rear view of BA3101 or BA3102
without plug-in modules
Panel mounting
clamps 8 off
Certification
information
label
7 C
M4 earth
stud
