- Page 1 ORIGINAL INSTRUCTIONS APPROVED BY DEKRA 06/07/17 Laurent Asty GASOLINE LAWNMOWER RAC4000T-2 WARNING: Read and understand all instructions and instructions. RACING 32, rue Aristide Bergès - ZI 31270 Cugnaux – France...
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS 2. YOUR PRODUCT 3. ASSEMBLY 4. FILLING FUEL TANK 5. USE 6. MAINTENANCE AND STORAGE 7. EC DECLARATION... -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS 1) Security instructions for the gasoline lawnmower Instructions • Read the instructions carefully. Be familiar with the controls and proper use of the equipment. • Never allow children to use this mower. If the mower is given to an other people, also give this manual. - Page 4 • Do not start the machine by standing in front of the ejection • Do not place hands or feet near or under rotating parts. Keep clean the mouth of the grass extractor. • Never take or carry the mower while the machine is running. •...
- Page 5 damage. Take the lawnmower to an authorized service center for repair if necessary. • If the mower vibrates abnormally, try to understand the reason and bring your lawnmower to an authorized repair center. • Regularly check that the bolts, nuts and screws are properly tightened for safe use of the mower.
- Page 6 Symbols Read the instructions Watch out for projections! Keep viewers away from work area Danger! Keep your hands and feet away from the cutting element! Do not use the tool under rain. Blades continue to rotate after the engine stops Hazardous products.
-
Page 7: Your Product

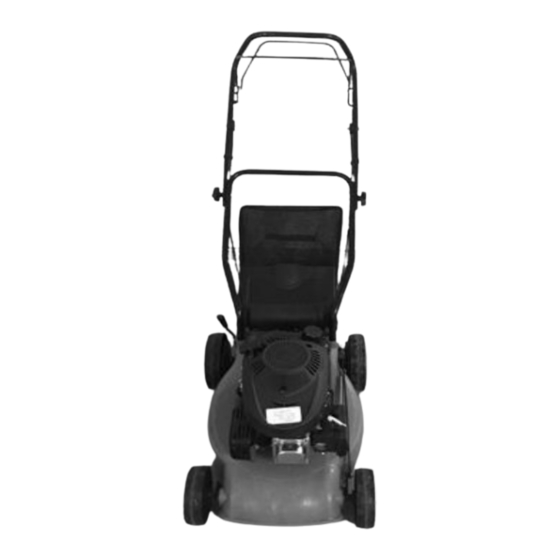

2. YOUR PRODUCT a. Description 1. Handlebar 2. Self-propelled bar 3. Operator control lever 4. Lower bar 5. Hook 6. flap 7. Cutting height lever 8. Start rope 9. Oil dipstick 10. Air filter box 11. Fuel tank 12. Grass catcher... - Page 8 Technical data Model RAC4000T-2 Nominal power 1.8kW Displacement 98cm³ Max engine speed 2850/min Cutting width 400mm Volume of the collection bag Weight 23.5kg Engine type DY1P56F Blade type DY0903-2 Fuel tank capacity 1.3l Oil tank capacity 0.5l Sound pressure level Lpa: 80.9dB(A), K=3,0dB(A)
-
Page 9: Assembly
3. ASSEMBLY a. Handles/bar Install the lower handle on the tool (1); push firmly the bar on the holes (the screw holes of the bar must be aligned with the screw holes of the hole). Screw both side with the provided screws (2). Combine the handle bar and the lower handle with the screws. - Page 10 b. Grass catcher Open and hold the flap. Insert the grass catcher and attach it to the bar with the hooks.. To remove the grass catcher, remove the hooks from the bar and remove the grass catcher. c. Setting of the cutting height According operation to be performed, adjust the desired cutting height;...
-
Page 11: Filling Fuel Tank
4. FILLING FUEL TANK WARNING! Gasoline is extremely flammable. Store fuel in specially designed cans for this purpose. Fill the fuel tank only outdoors and before starting the engine. Do not smoke when filling the fuel tank or handling fuel. Never open the fuel tank cap and never add fuel while the engine is running or when it is hot. - Page 12 Engine oil Recommended oil: We recommend the use of high quality detergent oil classified for SF, SG, SH, SJ or higher. Do not use special additives. Filling oil tank Open the oil tank. Fill directly the oil in the tank. Do not overfill. Close the oil tank.
-
Page 13: Use
5. USE a. Starting the tool Before starting and using the mower, check for the presence and operation of safety devices. Also, check the condition of the blade and its securing bolt. If necessary, replace or repair defective items. Use only genuine original parts. If possible, mow only when the grass is dry. - Page 14 Repeat the above procedure as necessary until the engine starts. Attach the starter rope when the tool is operating. b. Self-propelling The mower can be self-propelled when in use. When the transmission is operated, the rear wheels turn automatically. Push and hold the self-propelled forward. Release this bar to stop this function.
-
Page 15: Maintenance And Storage
6. MAINTENANCE AND STORAGE Before working on the cutting system of the machine, switch off the engine and remove the spark plug’s cap. a. Cleaning the mower Cut grass is damp. Regular cleaning after each use will ensure better functioning of the mower and reduce the risk of corrosion or seizure. - Page 16 c. Mower maintenance Cutting system Before and after each mowing session, check that the blade, its attachment bolts and drive shaft are not damaged or excessively worn. Never try to straighten a bent blade. Replace a damaged, worn or bent blade as soon as possible. Use only genuine parts. Excessive vibration when mowing is a good indication of a problem with the cutting system.
- Page 17 for this). Insert the filter cartridge into its housing and replace the air box lid, ensuring that each component is in place and properly installed. If the filter cartridge is damaged or is very dirty, replace it using a genuine part. The maintenance of a foam pre‐filter is identical to that of a foam cartridge filter, as described above.
- Page 18 32, rue Aristide Bergès -Z1 31270 Cugnaux - France Tel. +33 (0) 5.34.502.502 Fax: +33 (0) 5.34.502.503 Declares that the machine named below GASOLINE LAWNMOWER RAC4000T-2 Serial number: Complies with the following European Directives: Machinery Directive 2006/42/EC EMC Directive 2014/30/EU...
