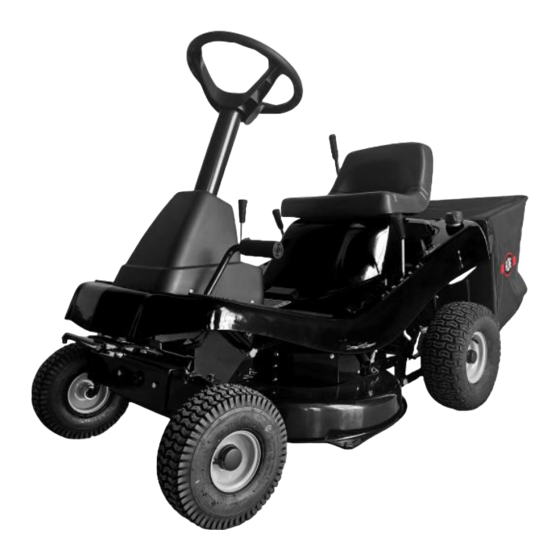

Racing RAC6625PR User Manual

Petrol lawn mower rider
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

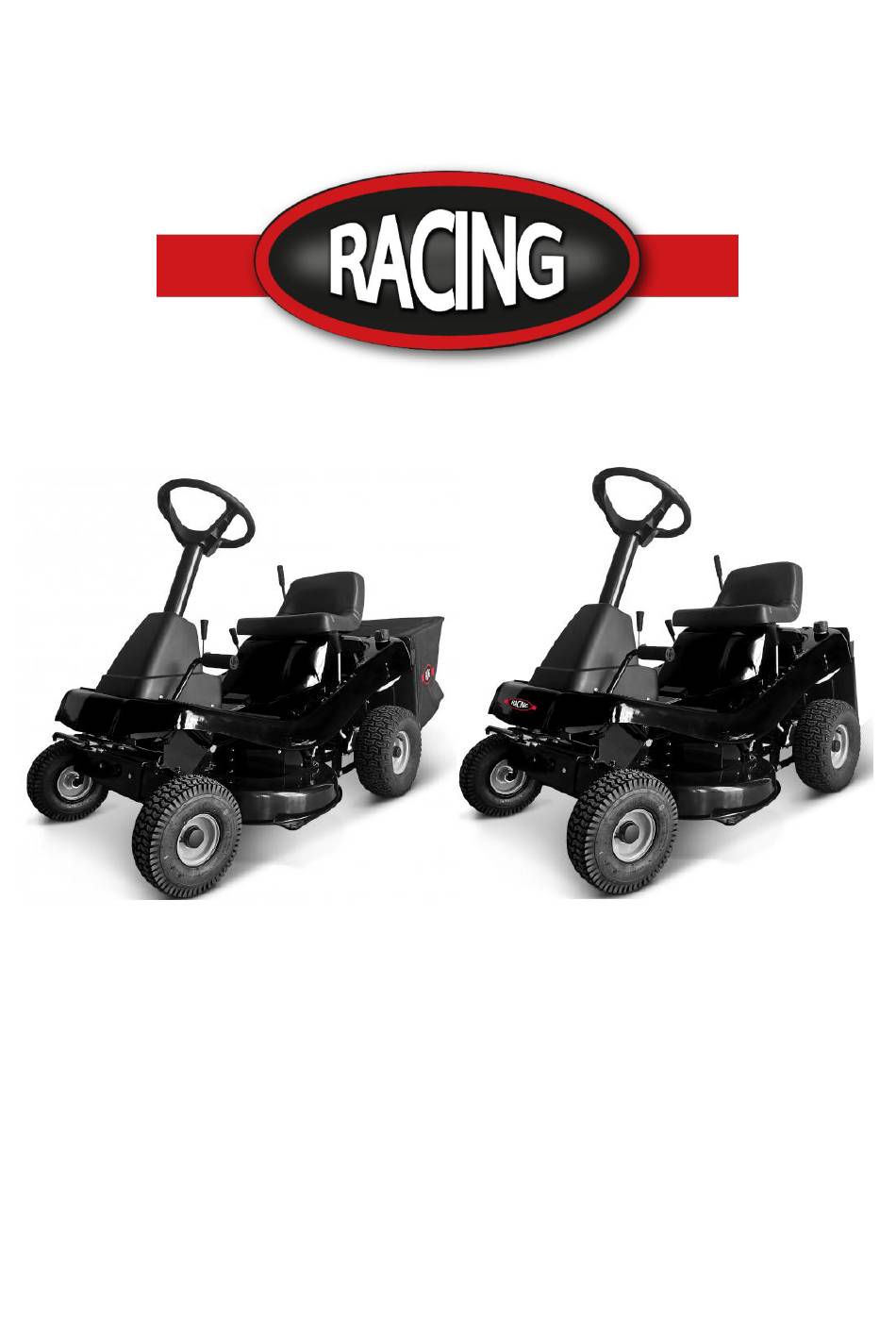

ORIGINAL INSTRUCTIONS=>EN
PETROL LAWN MOVER RIDER
RAC6625PR / RAC6625SDPR
USER GUIDE
CAUTION: Read the instructions before using the machine!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAC6625PR and is the answer not in the manual?

Questions and answers

Related Manuals for Racing RAC6625PR

Summary of Contents for Racing RAC6625PR

  • Page 1 ORIGINAL INSTRUCTIONS=>EN PETROL LAWN MOVER RIDER RAC6625PR / RAC6625SDPR USER GUIDE CAUTION: Read the instructions before using the machine!

  • Page 2: Table Of Contents

    CONTENTS 1. SAFETY INSTRUCTIONS........................3 2. INTENDED USE............................10 3. YOUR PRODUCT..........................12 4. ASSEMBLY............................13 5. BEFORE USE............................18 6. OPERATION ............................19 7. MAINTENANCE AND STORAGE..................... 24 8. TROUBLESHOOTING.........................34 9. DECLARATION OF CONFORMITY....................36 10. WARRANTY............................37 11. PRODUCT FAILURE.........................38 12. WARRANTY EXCLUSIONS......................39...

  • Page 3: Safety Instructions

    1. SAFETY INSTRUCTIONS DANGER: This machine was designed to be operated in accordance with the safe operation practices outlined in this manual. As with any type of power equipment, operator error or carelessness can result in serious injury. This machine is capable of amputating fingers, hands, toes, and feet, and can also throw objects with great force.
  • Page 4 collected.  Mow only under daylight or under good artificial light. Good visibility must always be ensured.  Warning: Do not use the machine where there is a risk of lightning.  Warning: do not use of the unit while being tired, ill or under influence of alcohol or other drugs. ...
  • Page 5 flame or spark.  Allow the machine to cool before storing it in an enclosed area.  To reduce the risk of fire, keep the machine clean without grass, without grease, the muffler and the engine cools, disconnect the battery if necessary and empty the fuel tank ...
  • Page 6 their capacity to operate the riding tractor safely, ensuring the protection of both themselves and others from severe injuries. 2) Before attempting to start the tractor, ensure that the blades are disengaged and the parking brake is set. 3) It is crucial to avoid placing hands or feet in close proximity to rotating parts or underneath the cutting deck.
  • Page 7 20) Never run the engine indoors or in poorly ventilated areas, as the engine exhaust contains carbon monoxide, an odorless and potentially lethal gas. CHILDREN 1) Tragic accidents can occur if the operator is not vigilant about the presence of children. Children are often attracted to the tractor and the mowing activity, and they may not comprehend the associated dangers.
  • Page 8 your clothing can lead to serious injury, as it can ignite. If gasoline is spilled, immediately wash your skin and change clothes. 2) Ensure all cigarettes, cigars, pipes, and other potential sources of ignition are extinguished. 3) Use only approved gasoline containers. 4) Never remove the gas cap or add fuel while the engine is hot or running.
  • Page 9 5) Verify that the blades come to a complete stop within 7 seconds after disengaging the blade control, as per the maintenance schedule. If the blades do not stop within the specified time, have the tractor professionally serviced. 6) Regularly check the safety interlock system's proper functioning as per the maintenance schedule.

  • Page 10: Intended Use

    2. INTENDED USE This equipment is intended for mowing lawns. Any use other than specifically permitted in this instruction may result in damage or injury. This equipment is intended for use by adults. Children or other people who are unfamiliar with the operating instructions must not operate this equipment. 2.1 TO THE USER Welcome to your new Ride-On mower! ...
  • Page 11 Do not expose to rain Keep bystanders away Caution – After the machine stops, the impact attachment continues to rotate. You must wait for it to come to a complete stop. Caution – hot surface keep safety distance. Unplug the spark plug before maintenance and repair. Read the instruction manual.

  • Page 12: Your Product

    2. Parking Brake Lever Blade Rotation Control Front wheel 3. Lift Lever Shift Lever Steering Wheel 4. Throttle Control Tipping Handle Seat 3.2 TECHNICAL DATA Model RAC6625PR RAC6625SDPR Engine RV225-X RV225-X Displacement 224cm 224cm Starting style E-start E-start Engine power...

  • Page 13: Assembly

    Fuel tank capacity Oil tank capacity 0.6 L 0.6 L Cutting width 660mm 660mm Number of forward gears Forward speed 1.5-8 km/h 1.5-8 Km/h Number of rear gears 1 Rear speed 1.8-2.7 km/h 1.8-2.7 km/h Type of discharge Rear, side and catcher Side discharge Mulching function Volume of the grass catcher...
  • Page 14 4.2 BATTERY Warning:To prevent sparks,fasten the red cable to the positive(+) terminal before you connect black cable.Use the fasteners shown below to install the battery cables. 1) Remove the protective caps from the battery terminal. 2) Fasten the red cable to the positive(+) terminal with the fasteners as shown(Figure 3). 3) Fasten the black cable to the negative(-) terminal with the fasteners as shown(Figure 3).
  • Page 15 The steering post will lock onto the pinion gear.Pull on the steering wheel.Make sure that the steering post is locked in place.(Figure 4,Step-b) 4.4 DISCHARGE PIPE AND GRASS CATCHER(OPTIONAL)
  • Page 16 Warning: Hang up grass catcher in Rear Collection Mode,otherwise you may get injured by debris or rocks flying from grass pipe. 1) Assemble lower tube of grass catcher to the main frame of grass catcher. Use R-Clip to fix(Figure 5). 2) Mount grass catcher bag on to grass catcher frame 3) Assemble grass tipping handle with fasteners as...
  • Page 17 4.6 SIDE DISCHARGE CHUTE(OPTIONAL) To discharge the grass out the side,install the side discharge chute as follows. 1) Remove the fasteners that secure the rear discharge pipe assembly or mulch plate. 2) Take out rear discharge pipe assembly or mulch plate. 3) Mount the side discharge chute on to the same bolts that secured the rear discharge pipe assembly(Figure 9) .

  • Page 18: Before Use

    5. BEFORE USE 5.1 SET-UP Note:Before you start mowing,do the following check first! 1) Check the engine oil. 2) Fill the fuel tank with gasoline. 3) Check the level of the mower housing. 4) Check the air pressure of the tires. 5) Make sure the battery cables are attached.

  • Page 19: Operation

    not overfill. Replace the oil tank plug / dipstick. 5.4 CHECK THE LEVEL OF THE MOWER HOUSING Make sure the level of cut is still correct.After you mow a short distance,look at the area that was cut.If it’s incorrect,see the instruction on “How to Level the Mower Housing” in the Maintenance section of this instruction book.
  • Page 20 6.2 BLADE ROTATION CONTROL Use the blade rotation control to engage the blade(Figure 12). 1) Before you start the engine,make sure the blade rotation control is in the DISENGAGE position. 2) To rotate the blade,move the blade rotation control forward to lock the blade in the ENGAGE position.
  • Page 21 3) Remove your foot from the clutch/brake pedal and then release the parking brake lever.Make sure the parking brake will hold the unit. 4) To release the parking brake,completely push the clutch/brake pedal forward.The parking brake will automatically release. Waring: Before you leave the operator’s position,move the shift lever to the neutral(N) position.Set the parking brake.Move the blade rotation control to the DISENGAGE position.Stop the engine and remove the ignition key.
  • Page 22 Note:If you find problems on braking,refer to Maintenance to fix the issue. Warning: Do not depress the pedal in half way.The driving belt would be worn easily in semi- clutch situation. 6.7 STARTING THE MOWER Waring:The electrical system has an operator presence system that includes a sensor switch for the seat.These components tell the electrical system if the operator is sitting on the seat.The system will stop the engine when the operator leaves the seat.
  • Page 23 5) Clean the underside of the mower chassis.Grass and other debris can keep the mower from working correctly. 6.11 GRASS COLLECTION FUNCTION (FOR RAC6625PR) The mower can be installed with a grass catcher. Please refer to Assembly-Discharge pipe and Grass Catcher for installation.

  • Page 24: Maintenance And Storage

    7. MAINTENANCE AND STORAGE 7.1 MAINTENANCE CHART FREQUENCY MAINTENANCE REQUIRED COMMENT Refer Engine Owner's Maintenance engine Manual Check cracks, wear, Examine blade(s) excessive damage Remove debris from unit and mowing area Examine all rotating and sliding Daily or before parts each Check tire inflation Refer to the Maintenance section...
  • Page 25 2) Check the spark plug, drive brake, lubricate the unit, and clean the air filter once a year. 3) Check the fasteners. Make sure all fasteners are tight. 4) Follow the Maintenance section to keep the unit in good operating condition. WARNING: Before you make an inspection, adjustment, or repair to the unit, disconnect the wire to the spark plug.
  • Page 26 4) Check the blade and the blade adapter according to the instructions for "Inspect Blade". Replace a badly worn or damaged blade with an original equipment blade. See an authorized service center in your area 5) Clean the top and bottom of the mower housing. Remove all the grass and debris 6) Mount the blade and blade adapter on the mandrel.
  • Page 27 11) When you move the blade rotation control to the DISENGAGE position, all movement will stop within seven seconds. If there is movement of the belt or the blades continue to rotate, engage and disengage the blade rotation control five times to remove any excess rubber from a new mower drive belt.
  • Page 28 2) Make sure the parking brake is set and the shift lever is in NEUTRAL (N). Turn the hex nut in a clockwise direction until the rear wheels do not turn when the unit is pushed forward. 3) Release the parking brake and push the unit. If the unit does not roll, turn the hex nut in a counterclockwise direction until the unit rolls.
  • Page 29 as follows(Figure 22). 1) Stop the engine. 2) Disconnect the adjuster nut from the shifter yoke. 3) Make sure the shift lever is in the NEUTRAL(N) position. 4) Push the unit forward. Make sure the gearbox is in NEUTRAL(N). 5) To align the adjuster nut with the hole in the shifter yoke, tum the adjuster nut. 6) Connect the adjuster nut to the shifter yoke.
  • Page 30 7.13 HOW TO CHARGE THE BATTERY If the unit is not running for a long time,the battery power could run out,and the engine can’t be ignited electrically.Follow the instruction to charge: 1) Plug out seat safety switch. 2) Plug out grass catcher switch. 3) Use support rod to support the seat support.
  • Page 31 7.17 HOW TO LEVEL THE MOWER HOUSING If the mower housing is level, the blade will cut easier and the lawn will look better. WARNING: Before you make an inspection, adjustment, or repair to the unit, disconnect the wire to the spark plug. Remove the spark plug wire to prevent the engine from starting by accident. 1) Make sure the unit is on a hard flat surface.
  • Page 32 2) Put the mower drive belt around the stack pulley. Make sure the"V" side of the mower drive belt is against the stack pulley.Also, make sure the mower drive belt is not twisted. 3) Attach the front hanger to the frame support with the hanger rod. Fasten with the fasteners as shown.
  • Page 33 7.22 HOW TO REPLACE THE FUSE If the fuse is blown, the engine will not start. The location of the fuse is next to the battery. Remove the fuse and replace with a automotive fuse. 7.23 HOW TO CLEAN THE MOWER HOUSING WARNING: Before you clean the mower housing,stop the engine and disconnect the wire to the spark plug.

  • Page 34: Troubleshooting

    8. TROUBLESHOOTING PROBLEM: The engine will not start. 1) Follow the steps in "Starting The Mower" in this book 2) Electric Start Models: Clean the battery terminals. Tighten the cables. 3) Drain the fuel tank. Clean the fuel line. 4) Remove the spark plug.Move the throttle to the SLOW position. Tum the ignition key to the ON position.
  • Page 35 2) Check the oil. 3) Adjust the carburetor. 4) Replace the fuel filter. PROBLEM: Excessive vibration. 1) Replace the blade. 2) Check for loose engine bolls. 3) Decrease the air pressure in the tires. 4) Adjust the carburetor. 5) Check for a damaged belt or damaged pulley. Replace the damaged parts. PROBLEM: The grass does not discharge correctly.

  • Page 36: Declaration Of Conformity

    32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France Tel. +33 (0) 5.34.502.502 Fax: +33 (0) 5.34.502.503 Declares that the machine named below Petrol lawn mower rider RAC6625PR / RAC6625SDPR Serial number: 20240408625-20240408638 20240408639-20240408651 Complies with the following European Directives:...

  • Page 37: Warranty

    10. WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 5 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.

  • Page 38: Product Failure

    11. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Empty the fuel tank. • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.

  • Page 39: Warranty Exclusions

    12. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
  • Page 40 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in PRC 2024...
