Axminster INDUSTRIAL Series Manual

Axminster INDUSTRIAL Series Manual

Spindle moulder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Code 501004
SS-512ML
Spindle Moulder

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INDUSTRIAL Series and is the answer not in the manual?

Questions and answers

Related Manuals for Axminster INDUSTRIAL Series

Summary of Contents for Axminster INDUSTRIAL Series

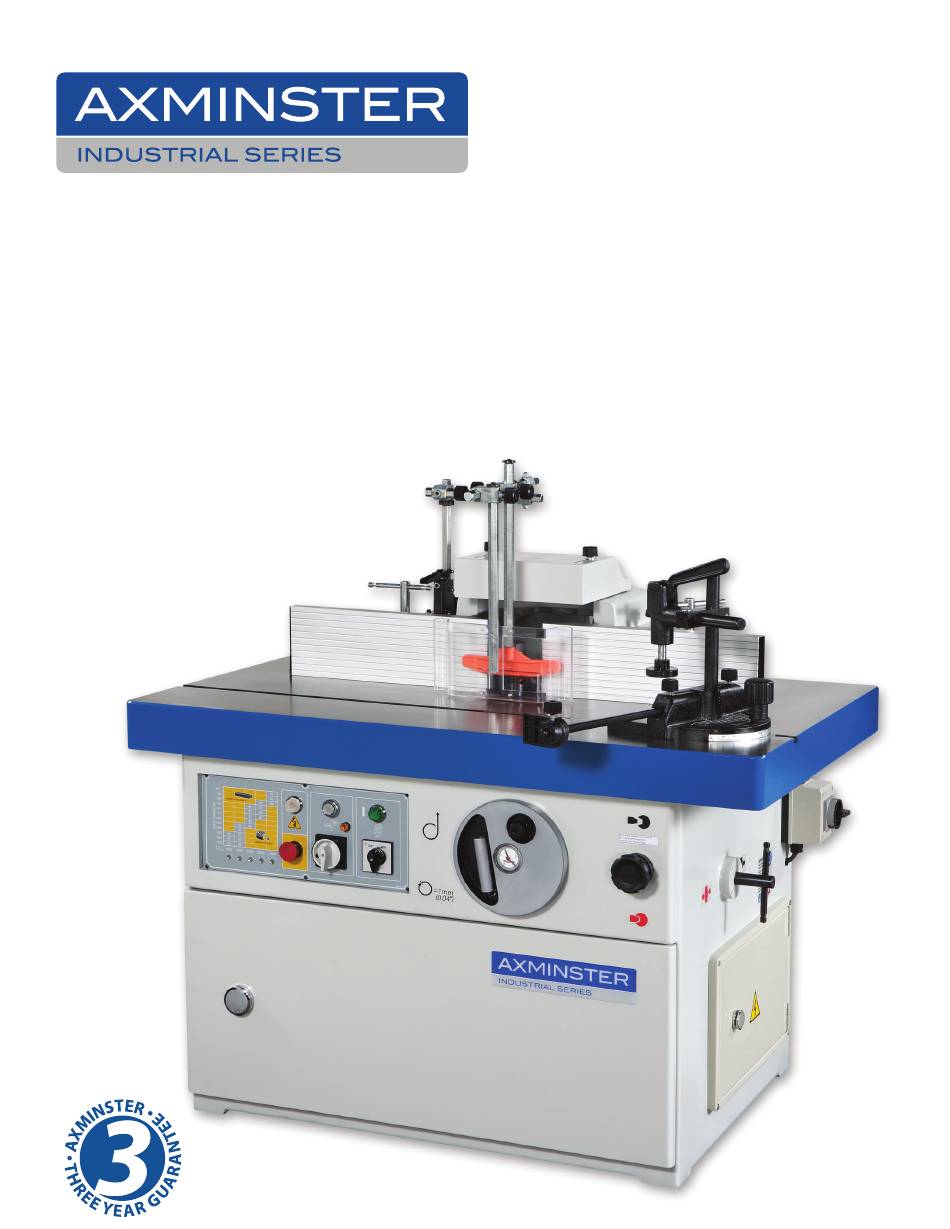

  • Page 1 Code 501004 SS-512ML Spindle Moulder...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS CHAPTER 1. GENERAL INFORMATION 1.0 Outlooking of spindle moulders -------------------------------------------------------------------------------------1-0 1.1 Machine identification ------------------------------------------------------------------------------------------------1-1 1.2 Notes for the user ------------------------------------------------------------------------------------------------------1-1 1.3 Specifications ----------------------------------------------------------------------------------------------------------1-1 1.4 Noise level -------------------------------------------------------------------------------------------------------------1-2 1.5 Safety warnings --------------------------------------------------------------------------------------------------------1-3 1.6 Safe working practice ------------------------------------------------------------------------------------------------ 1-5 1.7 Warning labels ------------------------------------------------------------------------------------------------------- 1-14 1.8 Dimensions for spindle and tools ----------------------------------------------------------------------------------1-15 1.9 Recommended work area ------------------------------------------------------------------------------------------1-16...

  • Page 3: Chapter 1. General Information

    CHAPTER 1. GENERAL INFORMATION 1.0 OUTLOOKING OF SPINDLE MOULDERS SS-510 / plus series SS-511/512 series SS-512T/512L backward tilt SS-512L series/SS-513 series SS-513 pro series SS-513 plus series Page 3 of 47...

  • Page 4: Machine Identification

    1.1 MACHINE IDENTIFICATION Machine model and serial number are punched onto a metallic plate placed on the machines frame giving access to the electric housing. Refer to Fig. 1.1. For information concerning specifically the electric system 、 pneumatic supply you must specify the data punched on the metallic plate.

  • Page 5: Noise Level

    BASIC MODEL IDENIFICATION 1.4 NOISE LEVEL A-weighted sound pressure level measuring at workstation: SS-510TS 99.04 dB(A) SS-513T plus 92.93 dB(A) SS-512TL 93.79 dB(A) SS-512M+TC1 96.01 dB(A) A-weighted sound power level measuring : SS-510TS 110.6 dB(A) SS-513T plus 104.56 dB(A) SS-512TL 104.74 dB(A) SS-512M+TC1 115.57 dB(A) Associated uncertainty K = 4 dB...

  • Page 6: Safety Warnings

    1.5 SAFETY WARNINGS Woodworking can be dangerous if safe and proper operating procedures are not followed. As with all machinery, there are certain hazards involved with the operation of the product. Using the machine with respect and caution will considerably lessen the possibility of personal injury. However, if normal safety precautions are overlooked or ignored, personal injury to the operator may result.
  • Page 7 12. Keep children and visitors away. All children and visitors should be kept a safe distance from work area. 13. Don't force tool. It will do the job better and be safer at the rate for which it was designed. 14.

  • Page 8: Safe Working Practice

    10. Always feed workpiece against the cutter rotation. 11. Make sure spindle draw bar and draw bar nuts are securely tightened before operating. 12. Turn the main switch to “O”, indicate so with a sign and padlock the main switch before making all adjustments or servicing.
  • Page 9 3) for workpiece guiding the use of: i) a fence. ii) a false fence wherever possible to minim is the gap between the cutter(s) and the fence plates. iii) a push block or push stick to aid hand feeding or wherever possible a de-mountable power feed unit. iv) roller or extension table to support long workpiece.
  • Page 10 Fig. 1.1.1 Fig. 1.1.2 Page 10 of 47...
  • Page 11 Fig1.1.3 Fig. 1.1.4 Fig.1.1.5 Page 11 of 47...
  • Page 12 Fig. 1.1.6 2. Stability For the machine to be used safety the machine shall be stable and securely fixed to the floor or a stable structure. 3. Machine setting and adjustment a) The machine shall be isolated from the power source before any adjustments are made. b) For clamping and setting of tools refer tool manufacturers recommendations.
  • Page 13 The false fence greatly reduces the exposure of dangerous parts Fig. 1.1.7 Fig. 1.1.8 c) A power feed device shall be used wherever possible to minimize the gap between the cutters and the main fence. d) When hand feeding against the fence a push stick to aid feeding shall be used in conjunction with the guard. e) Roller trestles or extension table shall be used to support long workpieces.
  • Page 14 7. Direction of rotation It is most important that the tooling is fitted to the machine to operate in the correct direction of rotation. The operator shall ensure that the workpiece is fed to the tools against the direction of spindle rotation. 7a.
  • Page 15 On a vertical spindle molding machine the gap between the two halves of the straight fence has to be wide enough to give clearance for the cutters. This allows unnecessary exposure of the cutters, the cutter block and the spindle, and in addition the leading end of the workpiece may foul the edge of the take-off half of the fence.
  • Page 16 11. Curved work A jig shall be used for all curved work unless the nature of the operation makes it impracticable; that is where the workpiece is so large that the addition of a jig would make the job unmanageable, or where the workpiece is so small, or so complicated that it cannot be held securely in a jig.

  • Page 17: Warning Labels

    1.7 WARNING LABLES This machine has warning labels attached on it as shown below to ensure proper and safe operation. These warning labes are very important, so do not damage or remove them. If damage or lost, contact your dealer or us and quote the warning label identification rumber for servicing. Please refer to Fig.1.9 and Fig.1.10.

  • Page 18: Dimensions For Spindle And Tools

    1.8 DIMENSIONS FOR SPINDLE AND TOOLS Tool shall comply to EN 847-1:2005 and/or EN 847-2:2001. Acceptable dimension for spindles and tools are given in Fig. 1.3 Maximum tool diameter Maximum useable length of (that can be mounted in the spindle diameter d spindle from the guard) shoulder l...

  • Page 19: Recommended Work Area

    1.9 RECOMMENDED WORK AREA Below shows the work area needed for maintenance of the electrical panel located at the rear side of the machine as well work area of pneumatic panel which is located at the side of the machine. Straight work station Tenoning work station 1-16...

  • Page 20: Chapter 2. Installation

    CHAPTER 2. INSTALLATION 2.1 UNPACKING AND CLEANUP To ensure maximum performance from your spindle shaper, clean it properly; and install it accurately before use. As soon as you receive the spindle shaper, we recommend you follow these procedures: 1. Inspect packing crate for damage in transit. Record damage, and report it immediately to shipper. 2.

  • Page 21: Installation And Leveling

    2.2 Installation and leveling The spindle moulder comes assembled except interchangeable spindle, fence assembly, dust chute, miter gauge, clamp attachment and some other loose items. Carefully remove machine from wooden shipping skid. For best shaping performance, locate spindle moulder on a soild, level foundation. With machine in position, check table surface left to right and front to back with a machine level.
  • Page 22 The necessary wiring from the starter to the power source should be completed by a competent electrician. For personal safety, this machine must be properly grounded. The spindle moulder must be grounded while in use to protect the operator from electric shock. Never connect the yellow green wire to a live terminal.

  • Page 23: Chapter 3. Use-Adjustment

    CHAPTER 3. USE-ADJUSTMENT 3.1 Control Unit FOR 5-SPEED SPINDLE MOULDER A control panel is provided with your spindle moulder as shown in Fig. 3.1. & Fig. 3.2. A. power indicator (CE) B. on-off switch C. forward/reverse switch D. start indicator (CE) E.

  • Page 24: Speed Change And Belt Adjustment

    To reverse the rotation of the spindle simply shut off the motor; then rotate the forward/reverse switch after the spindle stop completely. For CE machine, a main switch is mounted on the right side of the machine frame. Turning the switch to zero, indicate so with a sign and padlock it before servicing. The electrical cabinet door is lockable.
  • Page 25 d1: spindle diameter d2: tool cutting diameter b: length of cut l1:maximum useable length of spindle FOR 5-SPEED SPINDLE MOULDER Your machine is supplied with a 5-step motor pulley and a 5-step spindle pulley that provides spindle speeds of 3000, 4000, 6000, 8000 and 10000 RPM as standard; or 1500, 3500, 5500, 7500, 9000 RPM as alternative for some specific models.
  • Page 26 Check machine speed setting before operating. Make sure cutter meets or exceeds speed rating of tool. In the diagram Fig.3.4 a concrete example of choosing a speed in function to the diameter of the utensil, and the most opportune peripheral speed for the type of material to be worked on. Fig.
  • Page 27 The cutting speed shall always exceed 40 m/s to lessen kickback risk but shall never exceed 70 m/s to lessen the risk of tool damage. To change the speed and adjust the proper belt tension, proceed as follows: 1. Disconnect machine from the power source. 2.

  • Page 28: Spindle Lock

    For 3-SPEED SPINDLE MOULDER The 3-speed spindle moulder is supplied with a 3-step motor pulley and a 3-step spindle pulley that provides spindle speeds of 5500, 7500 and 10000 RPM. A speed chart Fig.3.7 is located in the front of the machine for easy reference of the belt position on the pulleys for three speeds available.

  • Page 29: Interchangeable Spindle Installation And Replacement

    STANDARD TYPE A 1. To position the spindle in “loose spindle” (where the spindle will rotate freely), pull out knob (A) Fig.3.10, and turn it clockwise. The knob (A) will then be latched in “loose spindle”. Fig.3.10 illustrated the knob (A) pulled out in the loose spindle position.
  • Page 30 5. Very carefully insert the draw bar (B) and spindle (A) Fig.3.12, down through the shaft as shown. Make sure the tang (C), on the spindle, is engaged with the notch (D), and thread spindle nut (E) onto threads (F). 6.

  • Page 31: Spindle Vertical Travel Adjustment

    3.6 SPINDLE VERTICAL TRAVEL ADJUSTMENT FOR 5-SPEED SPINDLE MOULDER TYPE A 1. Loosen handwheel lock (A) Fig. 3.16, before making adjustment of spindle height. 2. To raise the spindle, turn handwheel (B) counterclockwise and to lower the spindle, turn handwheel (B) clockwise. 3.

  • Page 32: Spindle Tilting Adjustment

    FOR 3-SPEED SPINDLE MOULDER 1. Loosen handwheel lock (a) Fig. 3.20, before making adjustment of spindle height. 2. To raise the spindle, turn handwheel (B) clockwise and lower the spindle, turn handwheel (B) counterclockwise. 3. Tighten handwheel lock (A) when desired spindle height is obtained.

  • Page 33: Assembling Cutters To Spindle

    3. Loose the locking handles (D) on the right side of machine. 4. Turn the handwheel (B) to the required tilting degree and position. A dial indicator showing existing tilting degree is provided for your convenient adjustment. 5. Tighten the knob (C) and locking handles (D). FOR 3-SPEED SPINDLE MOULDER The scale of tilting degree indicates the figures from -5 to 30 degree.
  • Page 34 3.10 ASSEMBLING AND INSTALLING FENCE AND DUST CHUTE ASSEMBLING FENCE 1. Place fence body (A) Fig.3.23 on the table. Fasten bar (C) to the front of the fence half using the locking lever (B) and washer. Assemble the remaining bar to the fence half in the same manner.
  • Page 35 2. Each fence half (E) can be moved independently, in o out, depending on the type of shaping operation that is being performed. To move the fence halves in or out, loosen one of the locking knobs (H) and turn one of the adjusting knobs (I) until the correct setting is obtained and tighten locking knob (H).

  • Page 36: Assembling Miter Gauge And Clamp

    3-13 3.11 ASSEMBLING MITER GAUGE AND CLAMP ASSEMBLING MITER GAUGE For 5-speed spindle moulder with fixed table 1. Locate the miter gauge bar (A) Fig.3.28, and insert washer and (B) of bar into T-slot (C) of machine table. 2. Fig.3.29 illustrates the miter gauge bar (A) in the table slot.
  • Page 37 3-14 For 3-speed spindle moulder with fixed table 1. Locate the miter gauge bar (A) Fig.3.31, and insert washer end (B) of bar into T-slot (C) of machine table. 2. Fig.3.32 illustrates the miter gauge bar (A) in the table slot.
  • Page 38 3-15 Miter gauge clamp A clamp (E) Fig.3.35 is supplied with your miter gauge to securely hold workpieces when shaping small piece across the gain. The clamp (E) can be moved up or down as required on post (F). Fig. 3.35 Stop fence for silding table (optional) 1.

  • Page 39: Sliding Table Adjustment

    3-16 3.12 SLIDING TABLE ADJUSTMENT (For sliding table only) There are six adjustable eccentric rollers (A) Fig.3.40, on sliding table. Wherever the table is unstable or not traveling in line, adjust the sliding table as follow: 1. Use open end wrench (B) to adjust the rollers. 2.

  • Page 40: Installing Tenoning Hood

    3-17 IN DOWN POSITION AS EXTENSION TABLE The tenoning carriage can be lowered to be at the same level of the machine table and used as an extension table for the machine of long workpiece. 1. Loosen the two locking levers (E), and slide the tenoning table (C) just away from machine table.

  • Page 41: Installing Curved Work Guiding

    3-18 3.16 INSTALLING CURVED WORK GUIDING (optional) The machine should be equipped with the curved work guiding when doing curved work. Please buy the safety guard for curved work with a profession manufactures which products are in compliance with of relevant (CE) regulations such as Suva (French), Aigner(German) etc.

  • Page 42: Chapter 4. Operation

    3-19 CHAPTER 4. OPERATION 4.1 STRAIGHT WORK Using the fence is the safest and most satisfactory method of shaping, and should always be used when the work permits. Almost all straight work can be done with the fence. 1. For normal work, where a portion of the original edge of the stock is not touched by the cutter, both the infeed and outfeed fences are in a straight line, as shown in Fig.4.1.

  • Page 43: Position Of Collars

    4.2 POSITION OF COLLARS When shaping with collars, the collar must have sufficient bearing surface, as shown in Fig.4.4. Also the work must be fairly heavy relative to the cut being made. Under no circumstances should a short, light work-piece be shaped against the collars, as shown in Fig.

  • Page 44: Tenoning

    4.3 TENONING The provided miter gauge and clamp can be used for tenoning operations. The tenoning hood fitted with adjustable sections shall be used to guard the tool form above the work-piece and from the sides. 《WARNING》 Keep guards in place and in working order. Always use tenoning hood when processing tenoning machining.

  • Page 45: Chapter 5. Maintenance

    CHAPTER 5. MAINTENANCE Before any maintenance/lubrication works, the electricity power should be shut off to avoid any involuntary retstart. 5.1 LUBRICATION Do not operate machine until properly lubricated. Apply a drop of light machine oil occasionally on the ledge and wall of the table opening to facilitate the changing of table rings.

  • Page 46: Periodical Maintenance

    5.2 PERIODICAL MAINTENANCE Periodically clean the inside of the machine from eventual presence of shaving or dust. Machine cleaning increases the machine life and its performance. To replace the ball bearings you should call skilled technician, then for this necessity contact your local agent.

  • Page 47: Trobule Shooting

    CHAPTER 6. TROBULE SHOOTING TROUBLE POSSIBEL CAUSE SOLUTION Machine will not start. 1. Fuse blown or circuit breaker tripped. 1. Replace fuse or reset circuit breaker. 2. Cord damaged. 2. Have cord replaced by authorized service person. Overload kicks out 1.
  • Page 65 Free Three Year Guarantee on Axminster Hobby, Trade and Industrial Series woodworking and Normal wear and tear, misuse, abuse and neglect are excluded and the machine should not have been engineering machines, Axminster Air compressors and Air Tools, and bench top grinders - no modified in any way.
