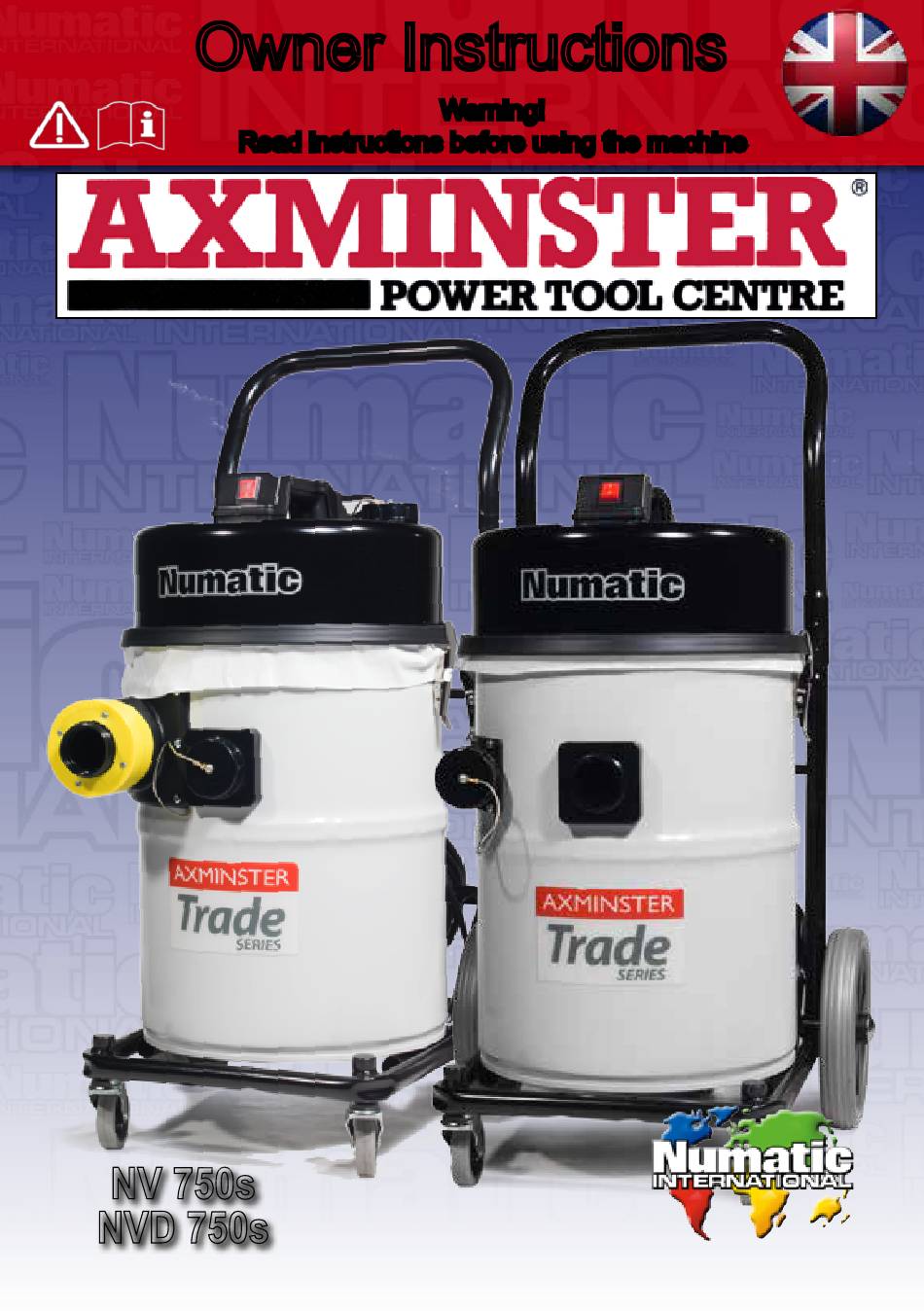

- Page 1 Owner Instructions Warning! Read instructions before using the machine NV 750s NVD 750s www.numatic.com...
- Page 2 750 Fitting the handle 10mm...
- Page 3 Utility Vac Kit 1 603917 603101 NV 750 - Side Inlet for Shavings and Chippings NV 750, 51mm Shavings and Chippings. Fit the 51mm hose to the side inlet Using Blanking Cap attached to machine, to Fit Stainless gulper to hose if required. blank off centre inlet.
- Page 4 Utility Vac Kit 2 613001 601102 601176 NVD 750 - 100mm Hose Attachment for Shavings and Chippings Shavings and Chippings. NVD 750, 100mm Using blanking cap attached to machine, to Fit (613001) hose securely to make sure there blank off centre inlet and remove 51mm is a good seal on to the side inlet.
-
Page 5: Using Your Machine
NV 750 Blower Cap Make sure the air diffuser is fitted to the rear of your machine. NVD 750 Blower Cap Remove blanking cap, before use and Fit the air diffuser before using your machine. Using your Machine Make sure your machine is plugged into a Turn on your machine suitable power supply. -
Page 6: Cleaning The Machine
NVD 750 only - Low Flow Indicator The NVD appliance is fitted with a low flow indicator to show that air flow has reduced. In the event of the indicator light flashing, check the following:- Cause Solution Blanking cap still fitted Remove the cap. - Page 7 Remove the Filter NV 750 NVD 750 Removing the Filter bag - Side inlet - Chipping and Shavings Undo the locking toggle to Remove the used filter bag and empty the contents into a remove the drum from the frame suitable waste bag, dispose of in an environmentally - friendly manner.
- Page 8 Normal Pick up and Power Tools Refit cloth filter and refit machine head. Fit the new 4BH filter bag over the inlet tube. NV 750 - NVD 750 - Single Motor Power Twin Motor Power. Axminster Power Tools - Workshop utility vacuum...
-
Page 9: Changing The Cable
Changing the cable... -
Page 10: About Your Machine
About your machine Voltage Frequency Rated Input Power Weight (ready to work) Company Name & Address Model Machine yr/wk Serial number WEEE Logo Protection Class CE Mark (personal protective equipment) That may be required for certain operations. Ear Protection Safety Footwear Head Protection Safety Gloves Eye Protection... - Page 11 Information for dry use vacuum cleaners Warning! Ensure you read the instruction manual before using the machine. Operators shall be adequately instructed on the use of these machines, as with all electrical equipment, care and attention must be exercised at all times during use, you must also make certain that routine and preventative maintenance is carried out periodically to ensure safe operation.
-
Page 12: Replacement Parts
● Keep your machine clean. ● Keep filters clean. ● Use filter bags, they will enhance performance and help keep machine clean. ● Use a Numatic original filter bag under fine dust conditions. ● Keep hoses and tubes clear. ● Replace any worn or damaged parts immediately. ●... - Page 13 Schematic NV 750S Schematic NVD 750S...
- Page 14 Declaration of conformity EU DECLARATION CONFORMITY We hereby declare under our sole responsibility that the following equipment fulfils all the relevant provisions of the following EU Directives: Machinery Directive 2006/42/EC EMC Directive 2014/30/EU RoHS Directive 2011/65/EU Machine Description: Vacuum Cleaner Type: NV,NVD,NVQ,NVDQ series Manufactured by: Numatic International Limited...
-
Page 15: Warranty
Warranty... - Page 16 Numatic International Limited, Chard, Somerset, TA20 2GB Telephone: 01460 68600 Fax: 01460 68458 UNITED KINGDOM: www.numatic.co.uk GERMANY: www.numatic.de SWITZERLAND: www.numatic.ch FRANCE: www.numatic.fr NETHERLANDS: www.numatic.nl SOUTH AFRICA: www.numatic.co.za PORTUGAL: www.numatic.pt Specification subject to change without prior notice www.numatic.com © Numatic International Limited 903308 06/16 (A01)
