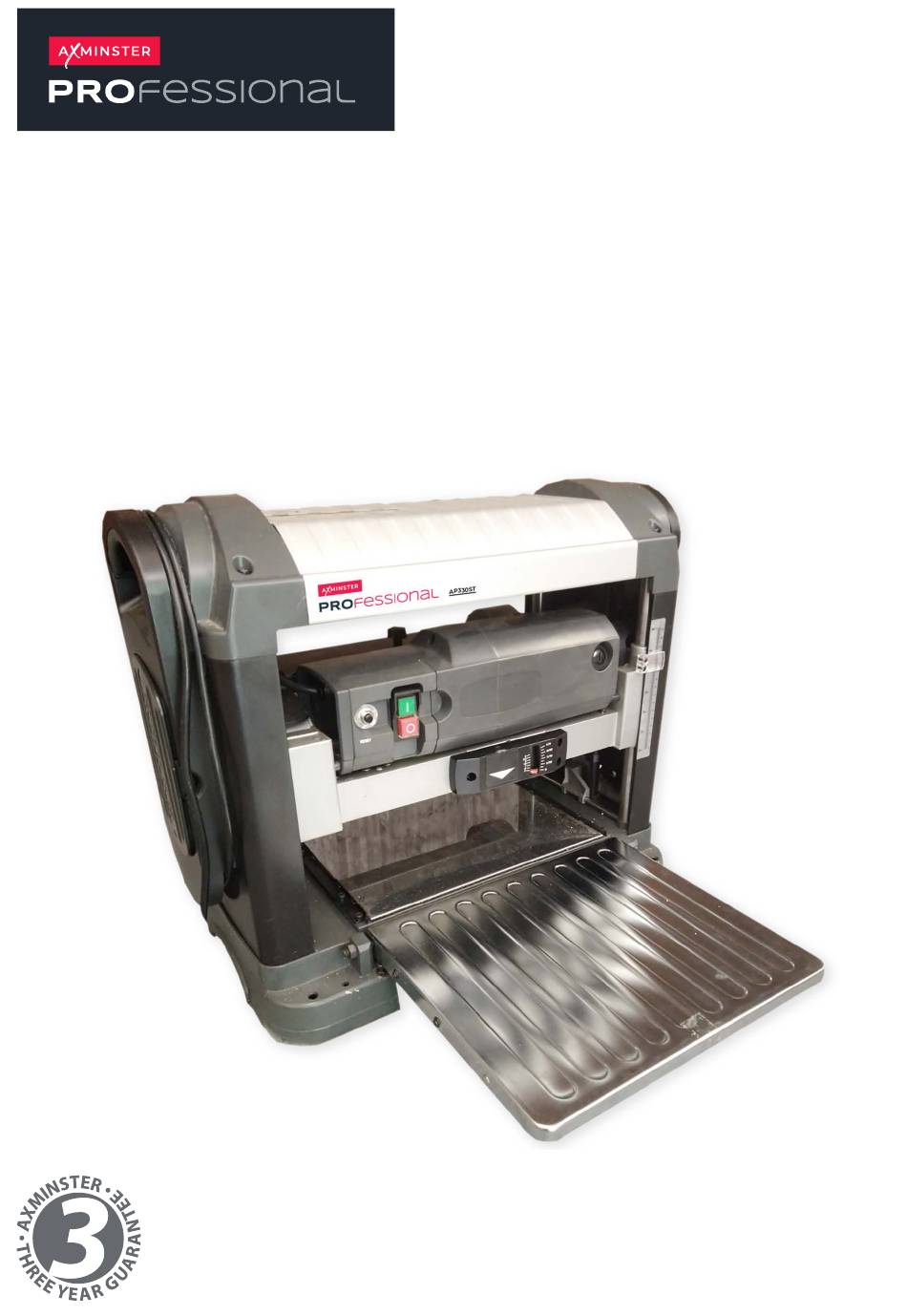

- Page 1 Code 109100 Original Instructions AP330ST 330mm Surface Thicknesser AT: 17/04/2023 BOOK VERSION: 01...
-
Page 2: Table Of Contents
INDEX OF CONTENTS WHAT’S IN THE BOX What’s In the Box Fig A Fig B Safety Assembly 05-06 Set Up 07-08-09 Operation Blade Rotation/Change Troubleshooting Maintenance Exploded Diagram/Parts LIsts 14-15-16 Wiring Diagram Declaration of Conformity 18-19 Fig C Fig D 2023 The machine’s Serial Number is 2003256... -
Page 3: Safety
SAFETY ASSEMBLY Fig 01-02 5. Find the dust extraction hood. Slide the extractor (C) The following is a list of safety precautions you must consider when using a Thicknesser: into the space that occupied the cutter block housing see fig 06. Gently push home until the extractor inlet slots over the motor’s fan outlet, see fig 07. -
Page 4: Set Up
ASSEMBLY SET UP Fig 15 7. Unlock the cutter block head unit by rotating the 8. Turn the rise and full wheel clockwise to raise the Levelling the Tables locking lever to the left, Note: this is located above head sufficiently to remove the polystyrene blocks, For storage &... -
Page 5: Operation
SET UP SET UP Fig 22 Fig 25 Fig 27 Setting the Timber Thickness Scale 1. Using a scrap fairly flat piece of timber, measure the thickness of the timber at each corner, see fig 19 2. Ensure that the cutter head is unlocked, then adjust the cutter head height to match your timber measurement then relock the cutter head, see fig 20. -
Page 6: Blade Rotation/Change
OPERATION BLADE ROTATION/CHANGE 3. Press the green “on” button & wait for the machine Fig 34 There are 26 HSS square cutters in total each with 2 cutter Fig 40 to come up to full speed. edges across the 330mm cutting width, after many hours of use these cutters will need rotating or replacing 4. -
Page 7: Troubleshooting
TROUBLESHOOTING MAINTENANCE Fig 44 PROBLEM POSSIBLE CAUSE SOLUTION DISCONNECT THE MACHINE FROM THE Grain is fussy 1. Planing wood with high 1. Dry the wood MAINS SUPPLY BEFORE CONTINUING! moisture content 2. Blades are dull 2. Sharpen the blades Grain is torn 1. - Page 8 EXPLODED DIAGRAM/PARTS LISTS EXPLODED DIAGRAM/PARTS LISTS DESCRIPTION CLAMP CORD SCR SEMS L/WASH FRAME UPPER CAP LEFT BLOCK SUPPORT INSERT SCALE LENGTH TORX SCREW COVER UPPER CAP RIGHT SHAFT TRANSMISSION RETAINER BEARING WASHER SCR HEX SOC CAP NUT LOCK PULLEY CUTTER HEAD SUPPORT BELT DRIVE SCR SEMS L/WASH...
- Page 9 EXPLODED DIAGRAM/PARTS LISTS WIRING DIAGRAM ROD SUPPORT NUT HEX SPECIAL BASE BOLT ADJUSTING SCR HEX SOC CAP BLOCK STEP WASHER NUT HEX SCREW ELEVATING L.H. PIN STEP BLOCK SCR SEMS L/WASH KNOB STEP RAIL GUIDE SCALE THICKNESS PLATE WEAR COVER SIDE R.H. INFEED OUTFEED TABLE SCR SEMS L/WASH SCR PAN CR TYTT...
- Page 10 Additional information: Additional information Name and address of person authorised to compile the technical file: Axminster Tool Centre Ltd, Unit 10 Weycroft Name and address of person authorised to compile the technical file: Axminster Tool Centre Ltd, Unit 10 Weycroft...
- Page 11 The packaging is suitable for recycling. Please dispose of it in a responsible manner. EU Countries Only Do not dispose of electric tools together with household waste material. By law they must be collected and recycled separately. Axminster Tools, Axminster Devon EX13 5PH axminstertools.com...
