V-TAC VT-39ST Instruction Manual

INSTRUCTION MANUAL

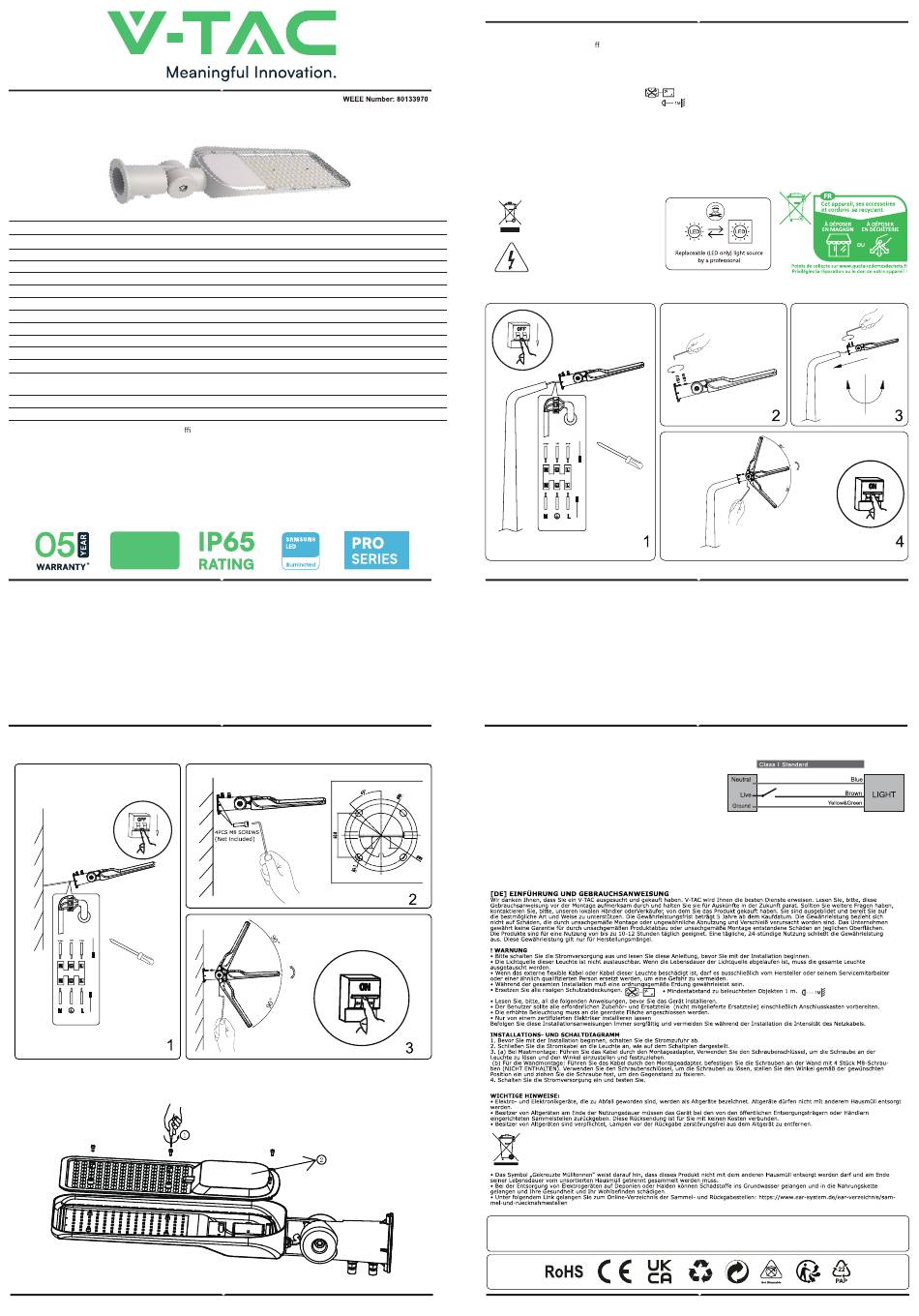

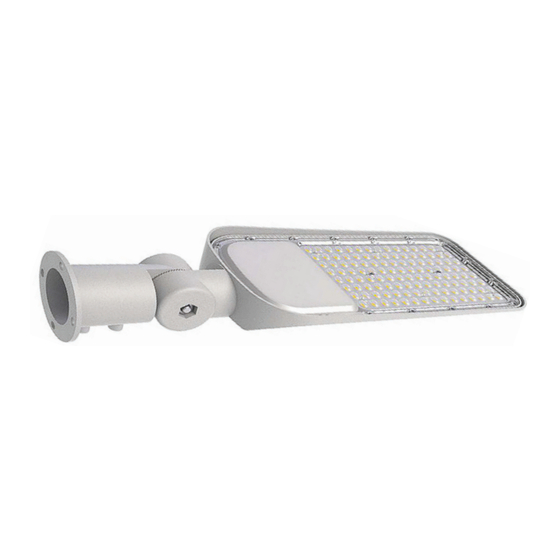

LED STREET LIGHT
TECHNICAL DATA
MODEL VT-39ST
SKU
2120422, 2120423
WATTS 30W
LUMENS
3450 LM
CRI
>70
DF
0.9
BEAM ANGLE
115°
LONG LIFE 25,000 Hours
ON/OFF CYCLE >15000 Times
SURGE PROTECTION GRADE 1KV/2KV
ADJUSTABLE ANGLE
90°
MOUNTING DIAMETER Ø60MM
AC:120-240V
INPUT VOLTAGE
50/60Hz
BODY TYPE
Aluminium
DIMENSION 416x138x99mm
*This product contains a light source of energy e ciency class<D>,where <D> shall be replaced by the energy class of
the contained light source.
INTRODUCTION AND WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before
starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or
local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is valid
for 5 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and
tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The
products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is
warranted for manufacturing defects only.
SUPER BRIGHT
135
+
LM/WATT EFFICIENCY
INSTALLATION INSTRUCTION
DISMANTLING INSTRUCTIONS
(For Market surveillance team only)
Note: Light source removal will void the warranty
VT-59ST VT-79ST VT-139ST
2120424, 2120425 2120438, 2120439 2120426, 2120427 2120428, 2120429
50W 70W 100W
11480 LM
5740 LM 8040 LM
>70 >70 >70
0.9 0.9 0.9
115° 115° 115°
25,000 Hours 25,000 Hours 25,000 Hours
>15000 Times >15000 Times >15000 Times
1KV/2KV 2KV/4KV 2KV/4KV
90° 90° 90°
Ø60MM Ø60MM Ø60MM
AC:120-240V AC:120-240V AC:120-240V
50/60Hz 50/60Hz 50/60Hz
Aluminium Aluminium Aluminium
470x99x149mm 470x99x149mm 567x99x179mm
WARNING
• Please make sure to turn o the power before starting the installation.
• The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole
luminaire shall be replaced.
• If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the
manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
• Replace any cracked protective shield.
• Minimum distance from lighted objects 1m.
• Proper grounding should be ensured throughout the installation.
• Please read through all following instructions before installing the unit.
• User should prepare all the necessary accessories and spare parts (Spare parts not provided) including
junction box.
• The raised lighting must be connected to the earth ground.
• Installation must be performed by a qualified electrician.
• Strictly follow these instructions for installing, avoid the intensity of power cable during installing.
• For outdoor use only.
This marking indicates that this
product should not be disposed
of with other household wastes.
VT-169ST
150W
Caution, risk of electric shock.
17220 LM
>70
INSTALLATION & WIRING DIAGRAM
0.9
115°
25,000 Hours
>15000 Times
2KV/4KV
90°
Ø60MM
AC:120-240V
50/60Hz
Aluminium
633x99x203mm
INSTALLATION INSTRUCTION
1. Switch OFF the power before starting the installation.
2. Connect supply wires to the luminaire as displayed in the
wiring diagram.
3. (a) For Pole: Pass the cable through the mounting adaptor,
tighten the screws on the pole with an M8 Allen wrench.
Use the wrench to loosen the screw on the luminaire and
adjust the angle and tighten them.
(b) For wall: Pass the cable through the mounting adaptor, Fasten screws against the wall by 4PCs of M8 screws
(NOT INCLUDED). Use the wrench to loosen the screw on the luminaire and adjust the angle and tighten them.
4. Turn ON the power to Test
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST
DEALERS. V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
