Back-electret condenser microphone
Hide thumbs Also See for E 614:

Advertisement

Microphones |

General Description

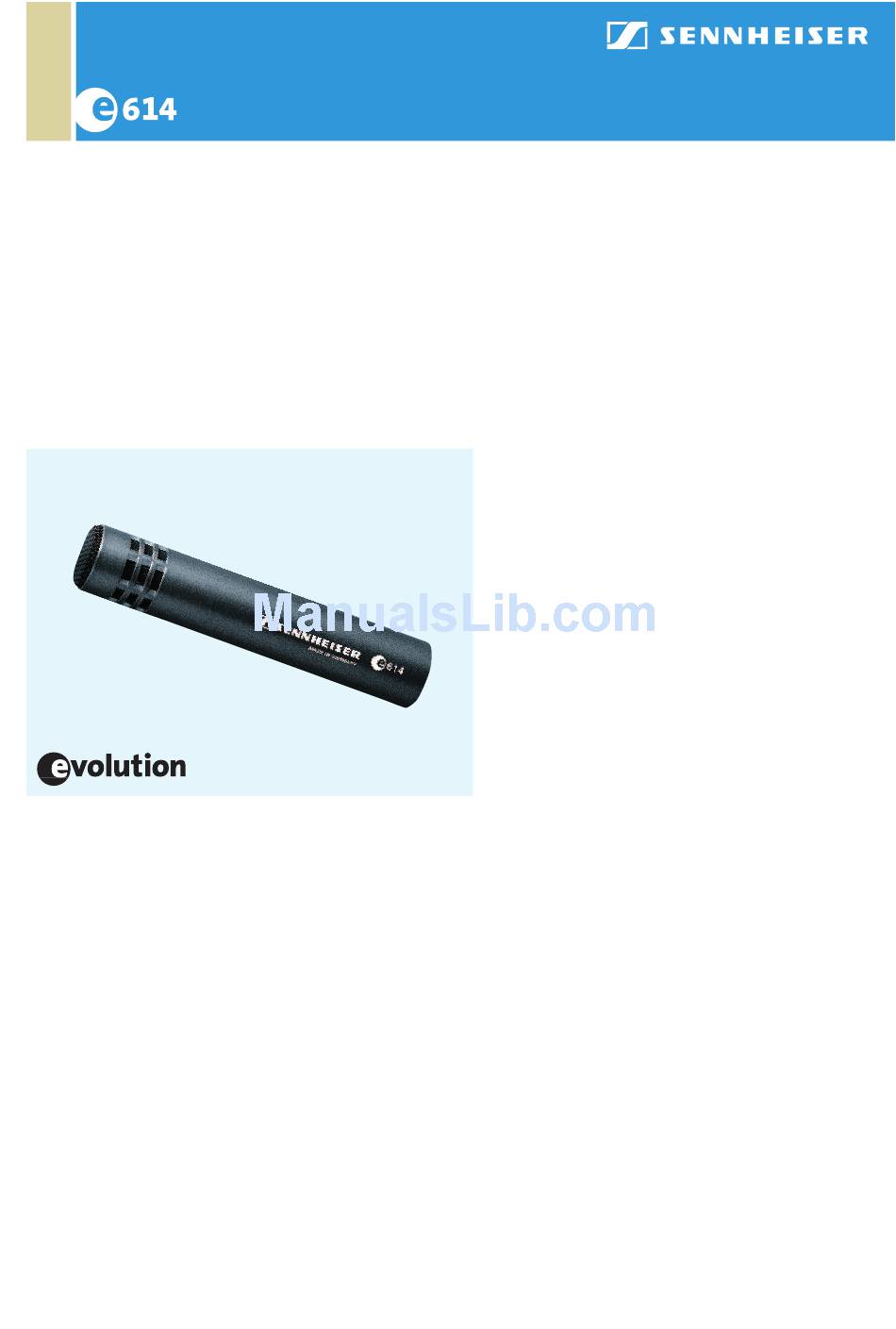

The super-cardioid e 614 is a pre-polarised electret condenser microphone
designed for demanding applications which require a wide frequency re-
sponse, high SPL, fast transient response and a compact design. With its
frequency response of 40 Hz to 20 kHz, the e 614 is able to capture the full
sound of the instrument, while its super-cardioid pick-up pattern isolates
the microphone from other on-stage signals. An excellent microphone for
percussion instruments, the e 614 is also an ideal choice for woodwind and
string instruments. Its excellent acoustic properties also make it a valuable
tool for home recording.

Features

Rugged design
Effective rejection of incidental rear noise
Excellent directivity across the whole frequency range
Full, natural sound
High maximum sound pressure level
Wide frequency response
Back-Electret Condenser Microphone

Technical Data

Pick-up pattern ...........................................................super-cardioid
Frequency response ..................................................40 - 20,000 Hz
Sensitivity
(free field, no load, 1 kHz) ................................. 3 mV/Pa = - 50dB
Nominal impedance ................................................................. 350 Ω
Min. terminating impedance ..................................................... 1 kΩ
Dimensions .................................................... Ø 20 mm, l = 100 mm
Weight w/o cable .........................................................................93 g

Profile

Super-cardioid instrument microphone, hum compensating
coil, frequency response 40 – 20,000 Hz, sensitivity (free field,
no load) 3 mV/Pa = - 50dB (0 dB = 1 V/Pa) at 1 kHz, nominal
impedance 350 Ω, min. terminating impedance 1 kΩ, dimen-
sions Ø 20 mm, l = 100 mm, weight 93 g.
Cat. No. 009895
(0 dB = 1 V/Pa)
