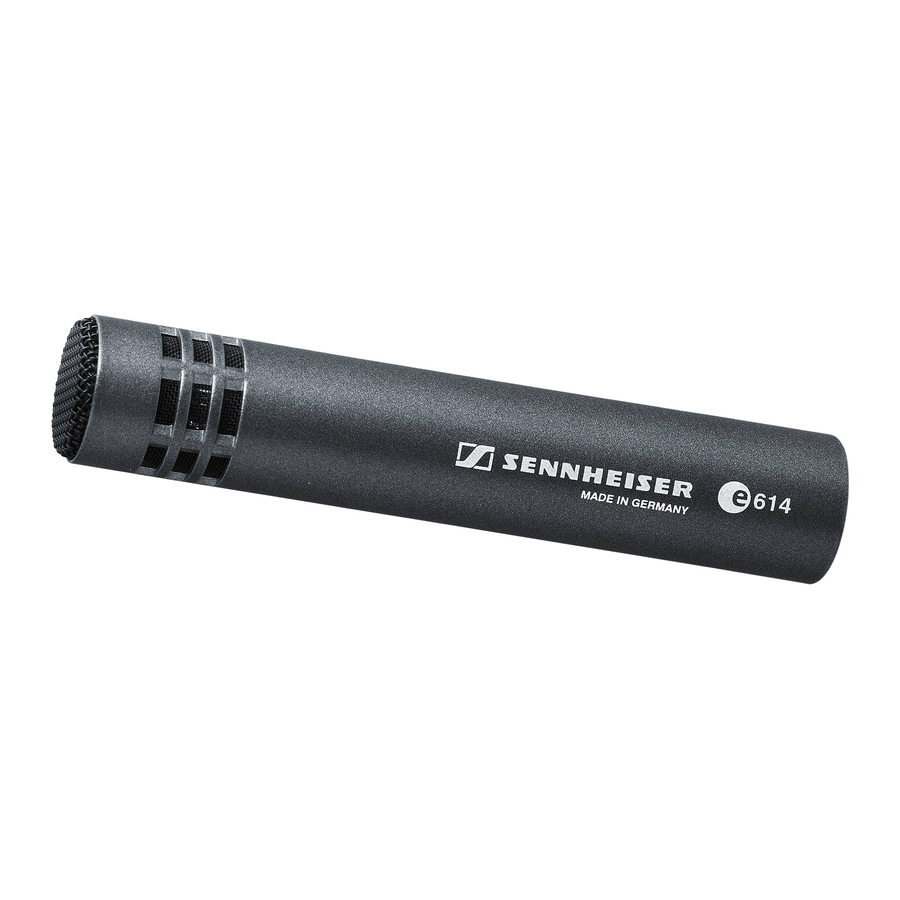

Kondensator-Instrumentenmikrofon

Leistungsmerkmale

Robust und roadtauglich, Farbe: schwarz;
Kompakte Bauform;
Konsistente Richtcharakteristik;
Einsprachekorb: Edelstahl;
Natürlicher voller Klang;
Hohe Pegelfestigkeit;
Weiter Frequenzgang;
Inklusive Mikrofonklemme und Tasche;

Technische Daten

Wandlertyp: Kondensator;
Richtcharakteristik: Superniere;
Übertragungsbereich: 40 - 20.000 Hz;
Freifeldleerlauf-Übertragungsfaktor (1 kHz): 3 mV/Pa;
Nennimpedanz: 350 Ohm;
Min. Abschlussimpedanz: 1000 Ohm;
Anschluss: XLR-3M;
Abmessung: 100 mm x 20 Ø mm;
Gewicht: (ohne Kabel) 93 g;
Fabrikat: Sennheiser / E 614
