Summary of Contents for Sennheiser e614

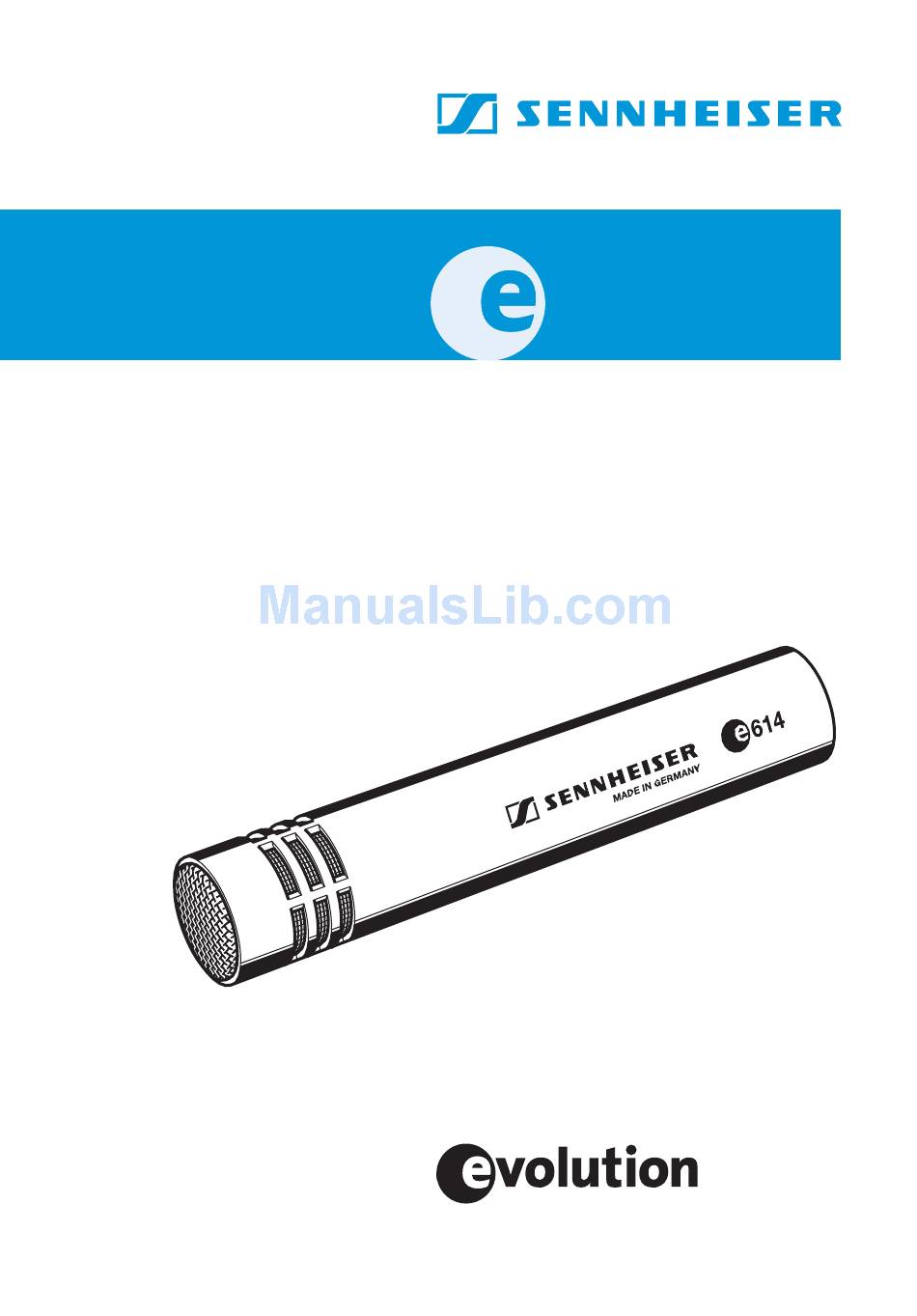

- Page 1 Bedienungsanleitung Instructions for use Notice d‘emploi Istruzioni per l‘uso Instrucciones para el uso Gebruiksaanwijzing...
- Page 3 Deutsch English Français Italian Español Nederlands...
- Page 5 The super-cardioid 614 is a pre-polarised condenser microphone designed for demanding applications which require a wide frequency response, high sound pressure level, fast transient response and a compact design. With its frequency response of 40 Hz to 20 kHz, the 614 is able to capture the full sound of the instrument, while its super-cardioid pick-up pattern isolates the microphone...
-
Page 6: Delivery Includes
Delivery includes 614 microphone Pouch MZQ 100 microphone clamp Instructions for use Warranty Certificate Pin assignment of XLR-3 connector... -
Page 7: Positioning The Microphone
Positioning the microphone Drums / Percussions Position Resulting sound Commentary Natural, clear sound Position the microphone a few centimetres above the outer edge of the hi-hat aiming down. If necessary, remove unwanted low-frequency signal portions by high pass filtering. Attention: When closing the hi-hat, a strong air current is created on the edge. -
Page 8: Frequency Response Curve
Polar diagram 0° 30° 30° 60° 60° 90° 90° 120° 120° 150° 150° 180° 2000 Hz 125 Hz 250 Hz 4000 Hz 500 Hz 8000 Hz 16000 Hz 1000 Hz Frequency response curve - 40 - 50 - 60 - 70 - 80 - 90 5000 10000 20000 Hz... -
Page 9: Specifications
Specifications Transducer principle pre-polarised condenser microphone Frequency response 40..20,000 Hz Pick-up pattern super-cardioid Sensitivity (free field, no load at 1 kHz) 3 mV/Pa Max. sound pressure level at 1 kHz 139 dB/SPL 50 Ω Nominal impedance Min. terminating impedance 1 kΩ Phantom powering 12 –... -
Page 10: Overview Of Microphone Applications
Overview of microphone applications Variant Application Vocals Choirs Studio, acoustic instruments Orchestra Brass / Saxophone Acoustic guitar Acoustic bass Guitar amplifiers Bass amplifiers Leslie Piano, grand piano Kick drums Snare drums Rack toms Floor toms Congas Cymbals Percussion Overheads... -
Page 11: Manufacturer Declarations
Manufacturer declarations Warranty 2 years Approval Sennheiser electronic GmbH & Co. KG declare that this device is in compliance with the applicable CE standards and regula- tions. WEEE Declaration Please dispose of this product at the end of its operational lifetime by bringing it to your local collection point or recycling centre for such equipment. - Page 14 Sennheiser electronic GmbH & Co. KG 30900 Wedemark, Germany Phone +49 (5130) 600 0 Fax +49 (5130) 600 300 www.sennheiser.com Printed in Germany Publ. 02/06 511652/A02...
