  Summary of Contents for Sennheiser 604

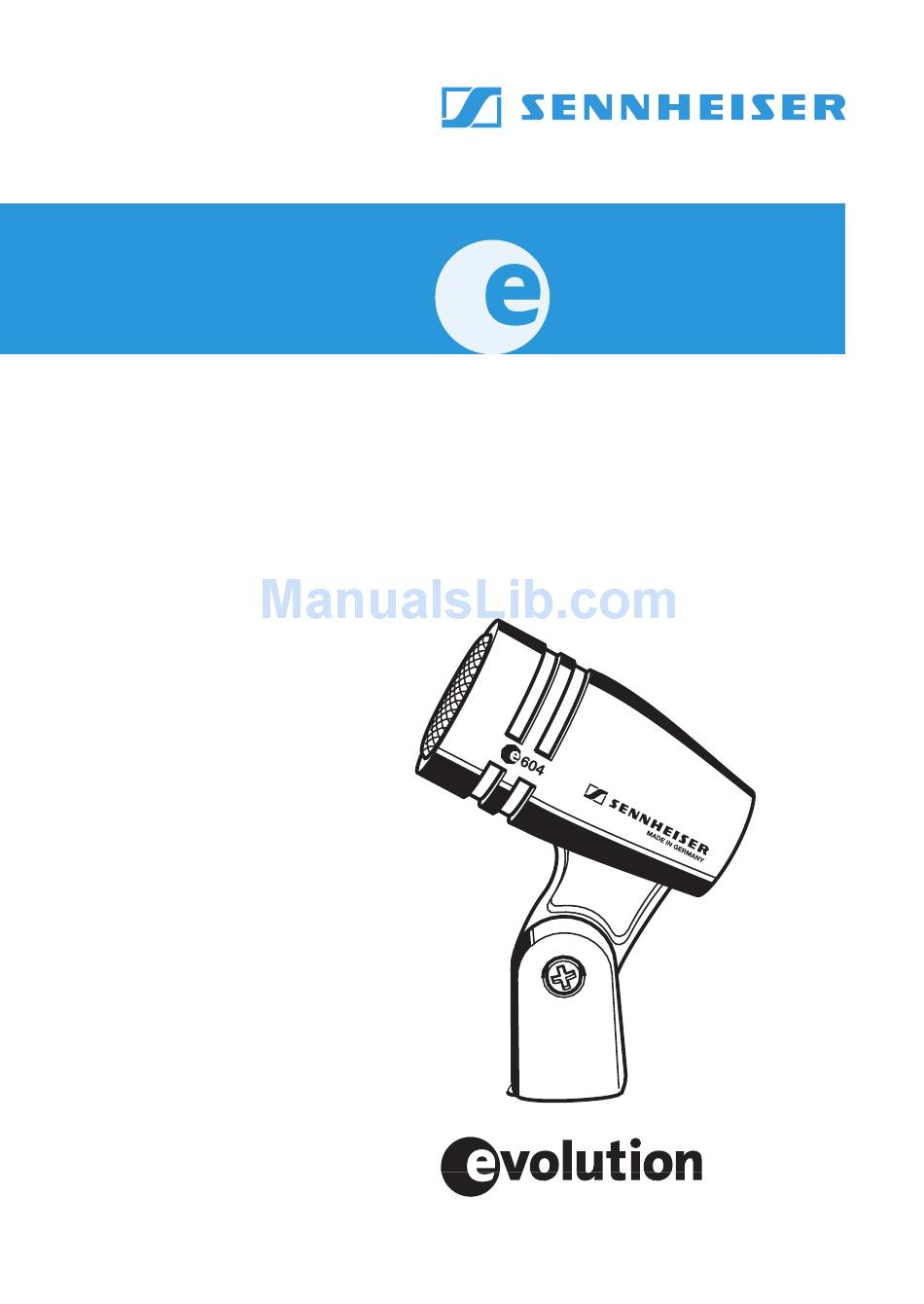

  • Page 1 Bedienungsanleitung Instructions for use Notice d‘emploi Istruzioni per l‘uso Instrucciones para el uso Gebruiksaanwijzing...
  • Page 2 Bedienungsanleitung... 3 Instructions for use ... 9 Notice d’emploi ...15 Istruzioni per l’uso...21 Instrucciones para el uso...27 Gebruiksaanwijzing...33...
  • Page 3 The cardioid 604 is a dynamic microphone suitable for miking drums, percussions as well as brass and woodwind instruments. The frequency response and cardioid pick-up pattern are optimised for use with snares and toms. The mic has a very high sound pressure handling capability (in excess of 160 dB).
  • Page 4: Delivery Includes

    Delivery includes 604 microphone MZH 604 microphone clamp Pouch Instructions for use Warranty Certificate Pin assignment of XLR-3 connector...
  • Page 5: Positioning The Microphone

    The most balanced results are obtained at an angle of 30–60°. Use of a second 604 for picking up the bottom of the drumskin and the snares. NB: The lower microphone must...
  • Page 6: Frequency Response Curve

    Polar diagram 60° 90° 120° 150° 125 Hz 250 Hz 500 Hz 1000 Hz Frequency response curve - 40 - 50 - 60 - 70 - 80 - 90 0°, 1 m ° 30° 180° 500 1000 2000 0°, 5 cm 30°...
  • Page 7 Specifications Transducer principle Frequency response Pick-up pattern Sensitivity (free field, no load) (at 1 kHz) Nominal impedance (at 1 kHz) Min. terminating impedance Connector Dimensions Weight dynamic 40...18,000 Hz cardioid 1.8 mV/Pa 350 Ω 1 kΩ XLR-3 Ø 33 x L 59 mm 60 g...
  • Page 8: Overview Of Microphone Applications

    Overview of microphone applications Variant Application Vocals Choirs Studio, acoustic instruments Orchestra Brass / Saxophone Acoustic guitar Acoustic bass Guitar amplifiers Bass amplifiers Leslie Piano, grand piano Kick drums Snare drums Rack toms Floor toms Congas Cymbals Percussion Overheads...
  • Page 9 Sennheiser electronic GmbH & Co. KG erklären, dass dieses Gerät die anwendbaren CE-Normen und Vorschriften erfüllt. Approval Sennheiser electronic GmbH & Co. KG declare that this device is in compliance with the applicable CE standards and regulations. Certification Sennheiser electronic GmbH & Co. KG déclarons que cet appareil est en conformité...
  • Page 10 Sennheiser electronic GmbH & Co. KG 30900 Wedemark, Germany Phone +49 (5130) 600 0 Fax +49 (5130) 600 300 www.sennheiser.com Printed in Germany Publ. 09/04 511650/A01...
