Summary of Contents for Sennheiser e 609 silver

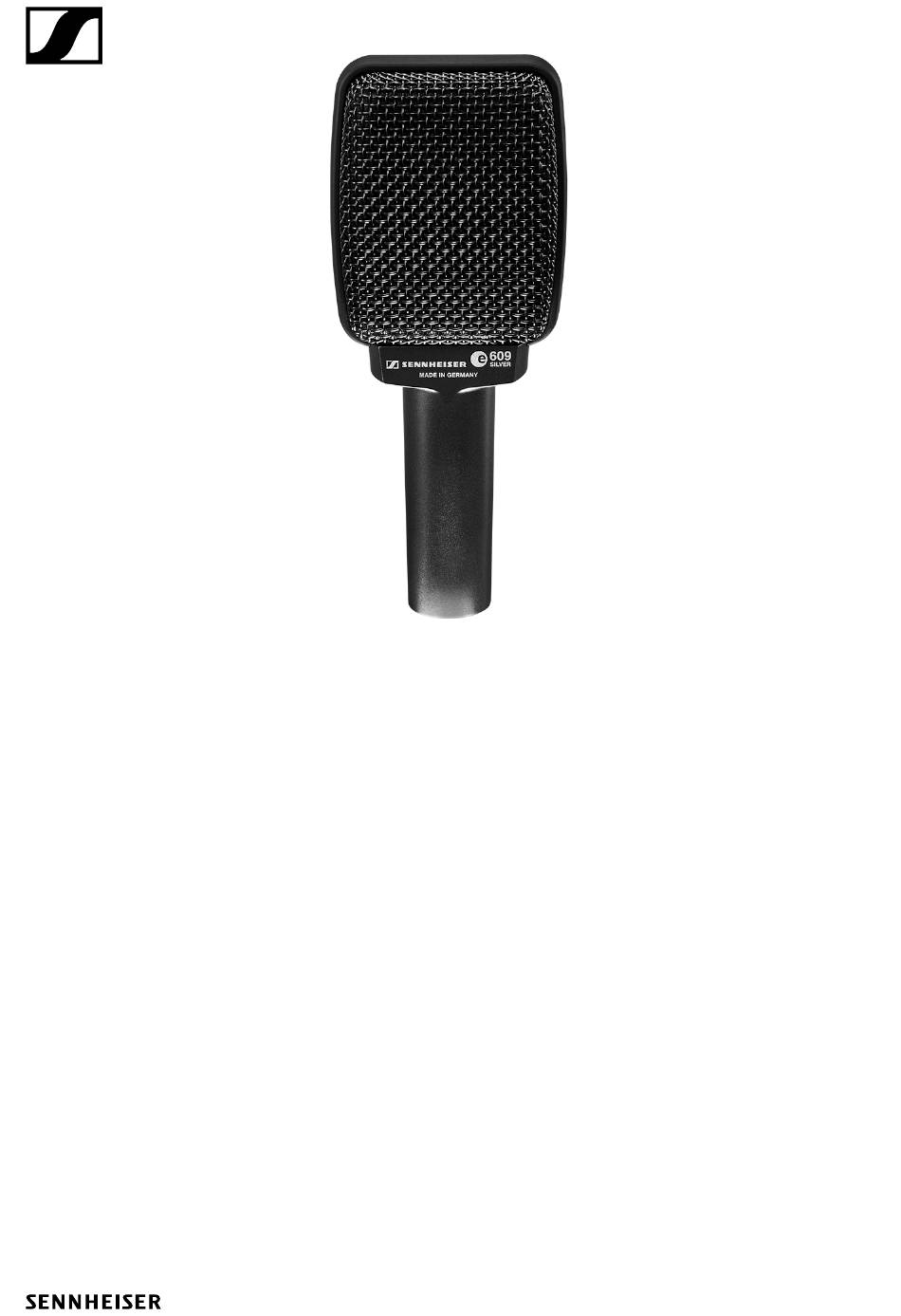

- Page 1 609 silver Instruction manual...
-
Page 2: Delivery Includes
Delivery includes Delivery includes • e 609 silver • pouch • quick guide • safety guide Product overview 1. Sound inlet basket 2. XLR-3 connector 3. Front e 609 | 2/7... - Page 3 Installation Installation Attaching the microphone Screw the microphone clamp to a stand. Place the microphone with its back end into the microphone clamp. Orient the microphone together with the microphone clamp. Connecting the microphone Connect the XLR-3 socket of the microphone cable (optional accessories) to the XLR-3 socket of the microphone.
- Page 4 Operation Operation Positioning the microphone Position the microphone between the dust cap and surround. The front must face the loudspeaker. It is vital to observe the following notes: Position Resulting sound Commentary many trebles microphone directed towards the dome of the aggressive sound loudspeaker less trebles, more lower...
- Page 5 Cleaning and maintaining the e 609 silver Positioning the monitor loudspeakers To prevent feedback and crosstalk, postion your monitor loudspeakers in the angle area of the highest cancellation of the microphone (approx. 135°). 135° Cleaning and maintaining the e 609 silver...
- Page 6 Specifications Specifications Transducer principle dynamic Frequency response 40 - 15,000 H z Pick-up pattern super-cardioid Sensitivity (free field, no load) 1.5 mV/Pa Nominal impedance (at 1 kHz) 350 Ω Min. terminating impedance 1 kΩ Connector XLR-3 Dimensions 55 x 34 x 134 mm Weight 140 ...
- Page 7 Overview of applications Connector assignment UNBALANCED 6.3 mm BALANCED 6.3 mm Overview of applications Primary application Secondary application • • • • • • • e 602 II • • • • • • e 604 • • • • •...
