Summary of Contents for Sennheiser E 606

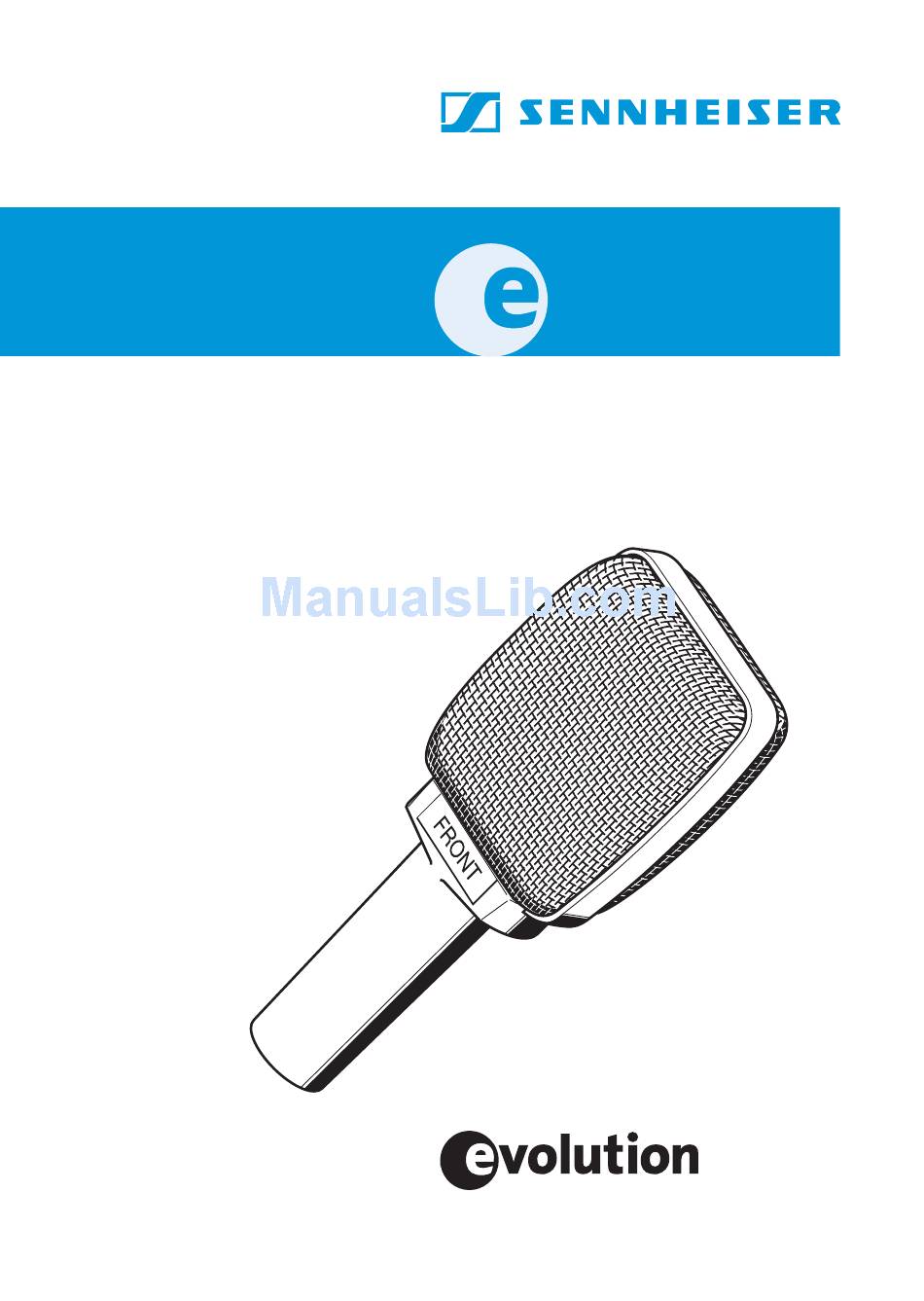

  • Page 1 Bedienungsanleitung Instructions for use Notice d‘emploi Istruzioni per l‘uso Instrucciones para el uso Gebruiksaanwijzing...
  • Page 2 Bedienungsanleitung.............. 3 Instructions for use ..............9 Notice d’emploi ..............15 Istruzioni per l’uso..............21 Instrucciones para el uso............27 Gebruiksaanwijzing...............33...
  • Page 3 606 is a dynamic microphone with super-cardioid pick-up pattern, offering a particularly direct sound when miking guitars amps. The lightweight voice coil construction and rigid dome provide an extended high frequency performance. Its laterally mounted capsule has been specially developed for miking guitars amps face-on and and extremely close to the signal source.
  • Page 4: Positioning The Microphone

    In order to prevent interference due to crosstalk between adjacent sound sources, try to position the microphone so that the interfering sound source is located in the angle area of the highest cancellation of the microphone (approx. 135°; see polar diagram)
  • Page 5: Polar Diagram

    250 Hz 4000 Hz 500 Hz 8000 Hz 16000 Hz 1000 Hz Frequency response curve - 40 - 50 - 60 - 70 - 80 - 90 500 1000 2000 5000 10000 20000 Hz 0°, 1 m 0°, 5 cm...
  • Page 6: Specifications

    Specifications Transducer principle dynamic Frequency response 40..15,000 Hz Pick-up pattern super-cardioid Sensitivity (free field, no load at 1 kHz) 1.5 mV/Pa 350 Ω Nominal impedance (at 1 kHz) Min. terminating impedance 1 kΩ Connector XLR-3 Dimensions 55 mm x 34 mm...
  • Page 7: Overview Of Microphone Applications

    Overview of microphone applications Variant Application Vocals Choirs Studio, acoustic instruments Orchestra Brass / Saxophone Acoustic guitar Acoustic bass Guitar amplifiers Bass amplifiers Leslie Piano, grand piano Kick drums Snare drums Rack toms Floor toms Congas Cymbals Percussion Overheads...
  • Page 9 Sennheiser electronic GmbH & Co. KG erklären, dass dieses Gerät die anwendbaren CE-Normen und Vorschriften erfüllt. Approval Sennheiser electronic GmbH & Co. KG declare that this device is in compliance with the applicable CE standards and regulations. Certification Sennheiser electronic GmbH & Co. KG déclarons que cet appareil est en conformité...
  • Page 10 Sennheiser electronic GmbH & Co. KG 30900 Wedemark, Germany Phone +49 (5130) 600 0 Fax +49 (5130) 600 300 www.sennheiser.com Printed in Germany Publ. 09/04 511651/01...
