- Page 1 User Manual Twistrunner TRr1/TRr6 Version 1.0 -11/25/2019...
- Page 2 All rights reserved. No part of this publication may be reproduced, stored in a computer database or published in any form or in any way electronically, mechanically, by means of photocopying, recordings or in any manner without prior written permission from Qimarox. UM Twistrunner TRr5 v1.0 EN...
-
Page 3: Table Of Contents
Installation Delivery ..........................17 Unpacking ......................... 17 Location ..........................17 On-site transport ....................... 17 Preparations for a Qimarox installation (optional) ............. 18 Installing the machine ....................... 19 Maintenance Specific safety regulations ....................22 Preventive maintenance schedule ..................22 Cleaning ..........................24... -
Page 4: About This Manual

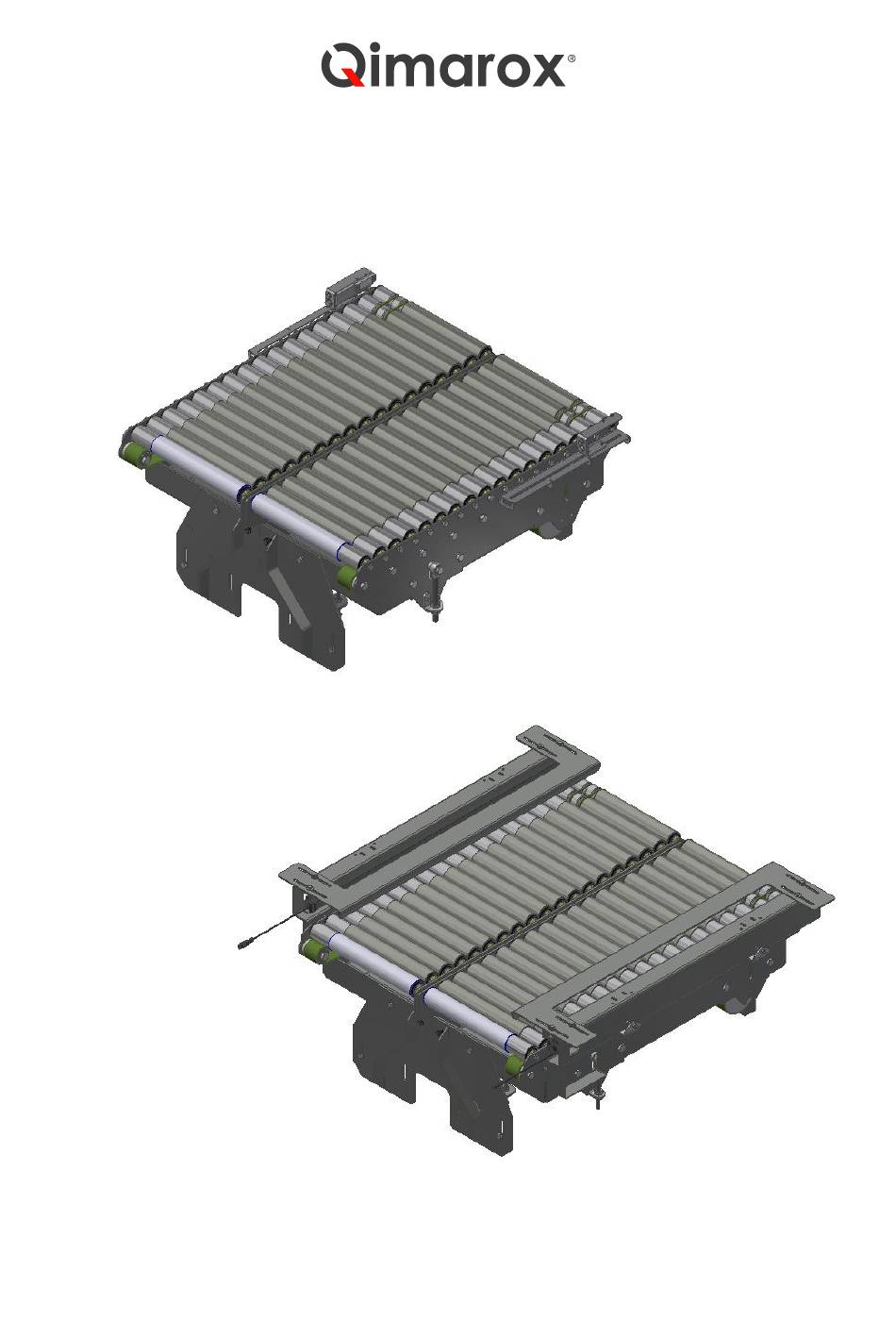

This manual provides information about the Twistrunner TRr1 and TRr6 machine, that is used for turning a product over a transportation surface, if necessary to create a pattern in a formed layer of product. Henceforth the Twistrunner TRr1 or TRr6 will be referred to as the ‘machine’. This manual is intended for: •... -
Page 5: Symbols Used In The Manual
Area around the machine that unauthorized personnel cannot enter for Fenced area safety reasons. Further support and information Qimarox can supply additional expertise and support services, for: Training Global support ... -
Page 6: General
You must obtain written confirmation from Qimarox before using the machine in a modified or unspecified manner. Qimarox cannot be held liable for any accidents and/or damages that may occur through inappropriate unauthorized use of the machine. -
Page 7: Warranty
The reader should consult Qimarox if errors are suspected. In no event shall Qimarox be liable for any damages arising out of or related to this user manual or the information contained in it. Except as specified herein, Qimarox makes no warranties, express or implied, and expressly disclaims any warranty of non-infringement, merchantability or fitness for a particular purpose. -
Page 8: Safety
Before any person operates, sets up, electrically installs or maintains the machine, permission to carry out these tasks must be obtained from Qimarox. Qimarox determines if the person is qualified for carrying out the given task. The machine should only be operated by qualified personnel. -
Page 9: Safety Provisions
If changes and modifications are outside the scope of specifications given by Qimarox in this manual and Qimarox has not granted permission changes and modifications, then the changes and modifications will entirely be the responsibility of those persons responsible for carrying out the changes and modifications. - Page 10 If the fenced area is fitted with a door, it must have a safety switch to shut down the system when opened. If Qimarox supplies the safety fencing, the specifications will be included in the machine layout drawing. Safety controls...
-
Page 11: Potential Risks
Safety Potential risks The machine is intended to be integrated into a palletising system. Qimarox has attempted to protect against as many hazards as possible. The following potential risks should be addressed before machine and assembled parts are put into operation: ... -
Page 12: Description
Description Description General overview The machine consists of two individual conveyors, each conveyor consist of the following parts: A Frame B Gearmotor C Drive belt D Rollers E Pressure rollers F Drive pulley UM Twistrunner TRr5 v1.0 EN... -
Page 13: Working Principle Of The Machine
Description Working principle of the machine The machine can be used to turn a product. The type, weight and size of the product is defined in the specification sheet. The product is turned by the difference in velocity between the two conveyors of the machine. In the examples below the product is turned clockwise, which means conveyor 2 is running at a higher speed than conveyor 1. - Page 14 Description The machine operates in the direction indicated by the arrow. The image below is an example of the machine in a system. Direction A1 Conveyor 1 of the machine A2 Conveyor 2 of the machine B Product C Transition roller Sensors The product needs to be detected when entering the machine.
- Page 15 Description Twistrunner r6 The machine is using a light grid to detect and check if the product is turning and if its fully turned on the end of the machine. The light grid measures the predefined dimensions of the product. First the light gird measures the length of the product, to make sure that the product is fully on the machine.
-
Page 16: Specifications
5. The yellow LED on the receiver illuminates. The light grid is operational. Connection unit If the machine is delivered as a part of transport system supplied by Qimarox the sensors are wired to a connection unit. Refer to User manual of the transport system for the exact mounting locations. -
Page 17: Installation
The machine will be delivered fully assembled. Unpacking 1. Check the packing list when unpacking the machine. 2. Immediately report damaged or missing parts to Qimarox. Location Refer to the machine layout drawing for detailed information about the location of the machine. -
Page 18: Preparations For A Qimarox Installation (Optional)
1. Indicate the contact person to whom the mechanic of Qimarox must report when arriving or leaving before and after the installation. 2. Make sure that the mechanic of Qimarox is assisted by qualified mechanics of the client. Refer to chapter 3. -
Page 19: Installing The Machine
Installation Installing the machine Installing the machine on a support WARNING The machine may only be set up by qualified personnel. Refer to chapter 3. Preparation Make sure that a hoisting system above the machine is available. Refer to section 5.4. ... - Page 20 Installation Tensioning the belt For each conveyor of the machine: 1. Untighten bolt A and nut B 2. Tighten nut C till the belt has the right tension 3. Retighten nut B and bolt A Adjusting the angle of the conveyors It is possible to change the angle of the conveyors of the machine.
- Page 21 Installation Adjusting the light grid of the TRr6 It is important that the light grid sender and receiver are aligned properly. When the sender and receiver are aligned correctly the yellow LED on the receiver illuminated permanently. To adjust the light grid in the horizontal position follow the next steps: 1.
-
Page 22: Maintenance
Adjust the maintenance frequency to the actual number of running hours per year. • If required, Qimarox can carry out the maintenance activities. Specific safety regulations For the proper functioning of the machine the various machine parts must be regularly maintained. - Page 23 Maintenance Monthly maintenance Item Definition Action when required by the check Gear motor Follow the instructions in the Follow the instructions in the manual of the manufacturer of manual of the manufacturer of the gear motor. the gear motor. Bearings Check for play.
-
Page 24: Cleaning
Secure the main power supply switch with a padlock. Remove deposit and dirt by hand. Report any damage to the technically responsible person or to Qimarox and make sure that any damage is remedied before restarting the machine. UM Twistrunner TRr5 v1.0 EN... -
Page 25: Troubleshooting
Troubleshooting Troubleshooting Problem Possible cause Solution The motor does not run. Electrical failure. Remedy the electrical failure. The operation or main switch Set the operation/main switch to is on "OFF". "ON". The door switch or emergency Release the emergency stop stop is active. - Page 26 Troubleshooting Too high use of energy. Check the weight of the product according to the data on the type plate. Check that the motor can move freely. The settings of the frequency Adjust the settings. inverter are incorrect. The motor hums and The power has been Connect the power in the does not run properly.
-
Page 27: Ce Declaration Of Conformity
CE declaration of conformity CE declaration of conformity If the machine is part of a transport system, the CE declaration can be found in the User manual of the complete system. This manual is provided by the system integrator. If the machine is bought as a standalone component, refer to the specification sheet for the CE declaration of conformity. -
Page 28: Electrical Drawings
Electrical drawings Electrical drawings The drawings of this machine can be found in an external document. This document is provided with the machine. Refer to the specification sheet for the required frequency and connection (star or delta) of the drive. Delta connection is used to make sure the torque of the drive does not decrease above 50 or 60Hz. - Page 29 Electrical drawings Nobelstraat 43 3846 CE Harderwijk Tel: +31 341 436 700 Fax: +31 341 436 701 E-mail: info@qimarox.com Internet: www.qimarox.com UM Twistrunner TRr5 v1.0 EN...
