HETRONIC NOVA L Quick Reference

C Y B
HANGING OUR ATTERIES
NOTE: The battery compartment is located on the
bottom of the transmitter.
A B
LKALINE ATTERIES
1. Remove the Battery Adapter Case from the
battery compartment and dispose of the discharged
batteries.
2. Insert 3 fresh batteries (Size AA) into he
Battery Adapter Case, and snap it into place.
R B
ECHARGEABLE ATTERY
1. Remove the discharged battery from the
battery compartment.
2. Snap a fully-charged replacement battery into
the battery compartment.
C Y B
HARGING OUR ATTERY
1. Confirm that your Hetronic battery charger
is powered ON.
2. Insert the discharged battery into the
battery compartment as shown and snap into
place.
The CHARGE LED flashes for 2 seconds, and then
stays lit.
When fully charged, the READY LED lights up and the
CHARGE LED turns OFF.
NOTE: Your battery is damaged if no LEDs light up
(open cell) or the CHARGE
LED flashes constantly
(shorted cell).
A D
VOID ELAYS
To ensure that the
charging process has
begun, ALWAYS
confirm that the battery
charger is powered ON,
and the proper
CHARGE LED lights
remain lit as noted in
these instructions.

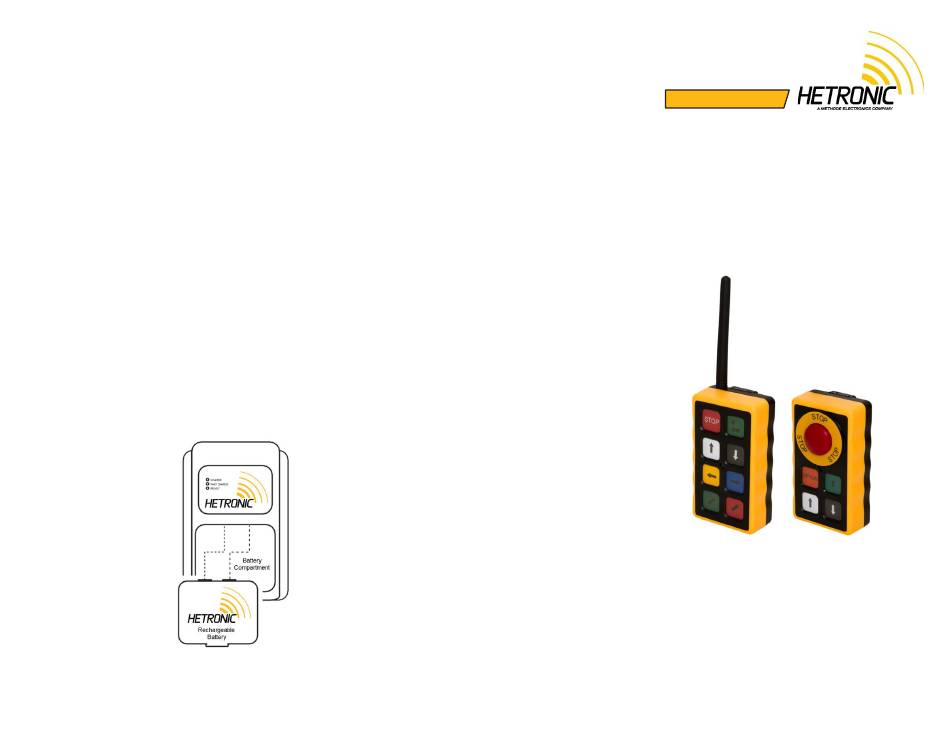

Battery Charger & Rechargeable Battery
F C Y B
AST HARGING OUR ATTERY
1. Insert the discharged battery into the battery
compartment and snap into place. The CHARGE
LED flashes for 2 seconds, then stays lit.
2. Press FAST CHARGE. The FAST CHARGE LED
also lights up and stays lit. When the READY LED
lights up and the CHARGE and FAST CHARGE
LEDs turn OFF, your battery is fully charged.
NOTE: Charging time could take up to 5
hours depending on your battery condition.
T
ROUBLESHOOTING
Batteries not charging:
• No power to the Charger. Supply
power. System not initializing after
normal START:
• Disengage STOP pushbutton.
• Check batteries, replace if needed.
• Confirm that the receiver is powered
ON. Transmitter is activated, but does not
transmit (status light is not flashing
green):
• Check batteries, replace if needed.
• If batteries are fresh or fully charged, there
may be an internal failure (see supervisor).
Unit is transmitting, but the machine not responding:
• Out of range. Restart transmitter within range.
• Confirm that the toggle switch is in the OFF
position (normally the "center" position).
• Receiver is not powered ON or may have a
blown fuse. Turn ON receiver and check
fuses.
• Transmitter/receiver frequency channels do
not match (see your supervisor).
• Transmitter/receiver addresses do not match
(see your supervisor).
All machine functions operate intermittently:
• Receiver antenna connection/ground loose.
• Interference.
• Connector inside receiver is loose.
Some machine functions operate intermittently:
• Machine motion wiring is loose. Check wiring
from receiver to plug, from plug to actuator.
Connector inside receiver is loose.
www.hetronic.com
Q
UICK
R
EFERENCE
M T
INI RANSMITTERS
QRCD_MINI_001.0
