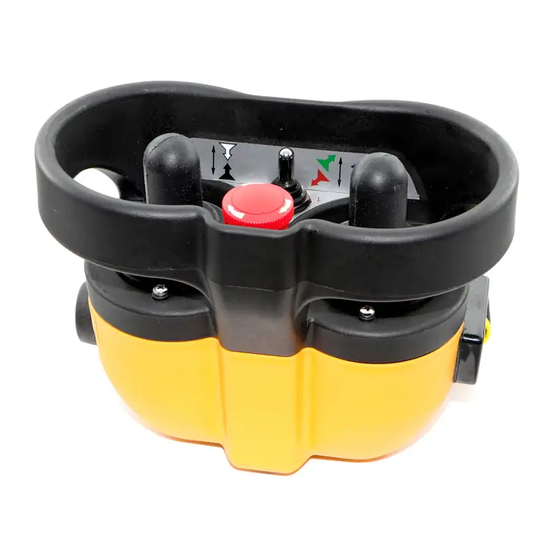

HETRONIC NOVA-M Quick Reference

C Y B
HANGING OUR ATTERIES
NOTE: The battery compartment is located on the
bottom of the transmitter.
A B
LKALINE ATTERIES
1. Remove the Battery Adapter Case from the
battery compartment and dispose of the
discharged batteries.
2. Insert 3 fresh batteries (Size AA) into the
Battery Adapter Case, and snap it into place.
R B
ECHARGEABLE ATTERY
1. Remove the discharged battery from the
battery compartment.
2. Snap a fully-charged replacement battery into
the battery compartment.
C Y B
HARGING OUR ATTERY
1. Confirm that your Hetronic battery charger is
powered ON.
2. Insert the discharged battery into the battery
compartment as shown and snap into place.
The CHARGE LED flashes for 2 seconds, then
stays lit.
When fully charged, the READY LED lights up
and the CHARGE LED turns OFF.
NOTE: Your battery is damaged if no LEDs light up
(open cell) or the CHARGE LED flashes
constantly (shorted cell).
A D
VOID ELAYS
To ensure that the
charging process has
begun, ALWAYS
confirm that the
battery charger is
powered ON, and the
proper CHARGE LED
lights remain lit as
noted in these
instructions.
Battery Charger & Rechargeable Battery
F C
AST
1. Insert the discharged battery into the battery
compartment and snap into place. The
CHARGE LED flashes for 2 seconds, then
stays lit.
2. Press FAST CHARGE. The FAST CHARGE
LED also lights up and stays lit. When the
READY LED lights up and the CHARGE and
FAST CHARGE LEDs turn OFF, your battery is
fully charged,
NOTE: Charging time could take up to 5 hours
T
ROUBLESHOOTING
Batteries not charging:
• No power to the Charger. Supply power.
System not initializing after normal START:
• Disengage STOP pushbutton.
• Check batteries, replace if needed.
• Confirm that the receiver is powered ON.
Transmitter is ON, but does not transmit (status light
is not flashing green):
• Check batteries, replace if needed.
• If batteries are fresh or fully charged, there may
be an internal failure (see supervisor).
Unit is transmitting, but the machine not responding:
• Out of range. Restart transmitter within range.
• Confirm that the toggle switch is in the OFF
position (this is normally the "center" position).
• Receiver is not powered ON. Turn ON receiver.
CHARGE
FAST CHARGE
• Blown Fuse. Check and replace if needed.
READY
• Transmitter/receiver frequency channels do not
match (see your supervisor).
• Transmitter/receiver addresses do not match
(see your supervisor).
Battery
All machine functions operate intermittently:
Compartment
• Receiver antenna connection or ground loose.
• Interference.
• Connector inside receiver is loose.
Rechargeable
Some machine functions operate intermittently:
Battery
• Machine motion wiring is loose. Check wiring
from receiver to plug, from plug to actuator.
• Connector inside receiver is loose.
Y B
HARGING OUR ATTERY
depending on your battery condition.
www.hetronic.com
Q
UICK
R
EFERENCE
N -M T
OVA RANSMITTERS
QRCD_NO_001.0
Local But Global
