User's Manual
Pocket-MFSHL Transmitter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pocket-MFSHL and is the answer not in the manual?

Questions and answers

Related Manuals for HETRONIC Pocket-MFSHL

Summary of Contents for HETRONIC Pocket-MFSHL

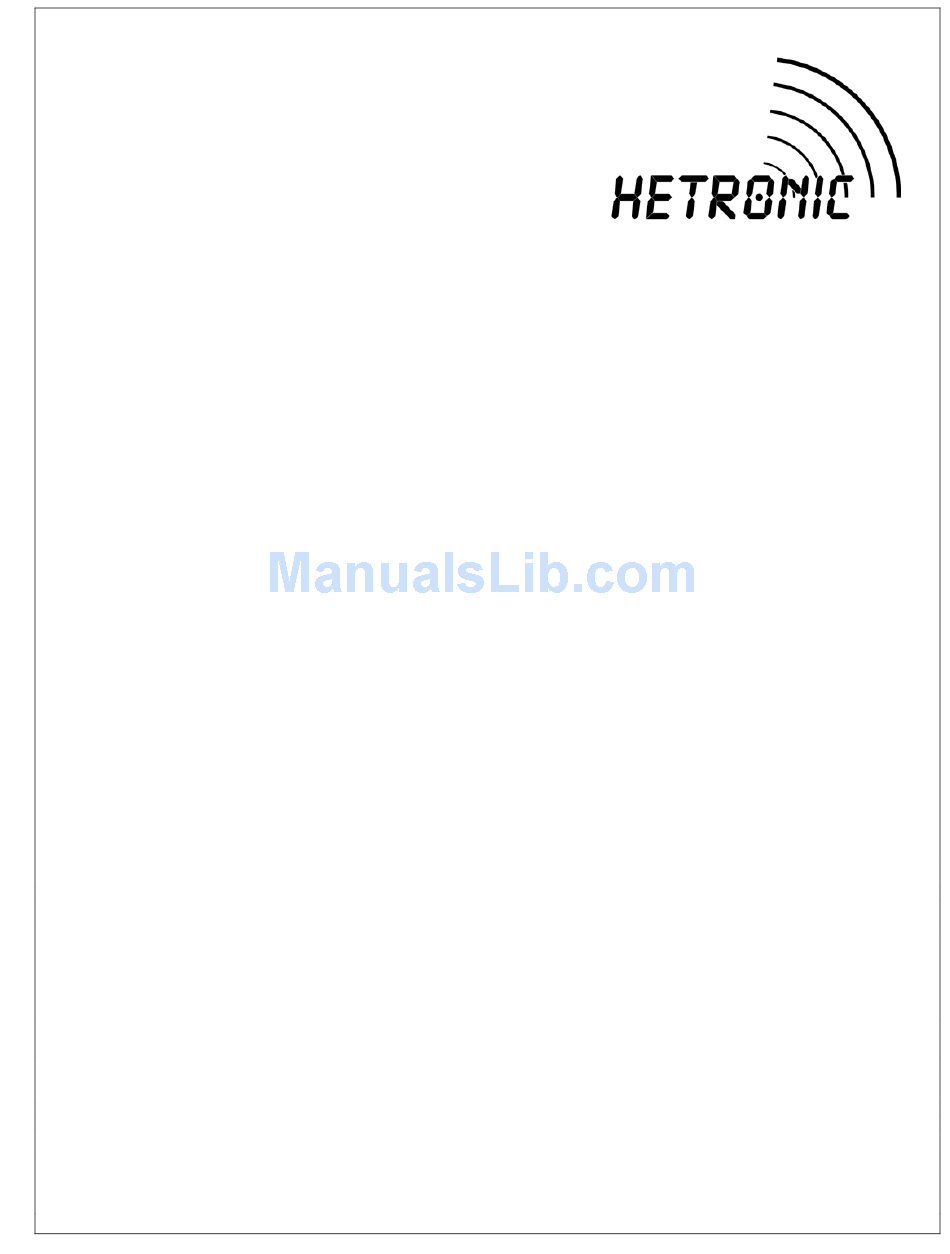

  • Page 1 User’s Manual Pocket-MFSHL Transmitter...
  • Page 2 1. DESCRIPTION The Pocket-MFSHL transmitter has a coder board with 11 digital channel(DK) inputs. It includes a Low Voltage Indicator (LVI) warning, 1% duty cycle and 2 seconds turn off time. It also includes switch detection on power up to ensure that no switch is active when the battery is inserted. The RF section uses FM-RF with 915MHz frequency and 76800 baud rate.

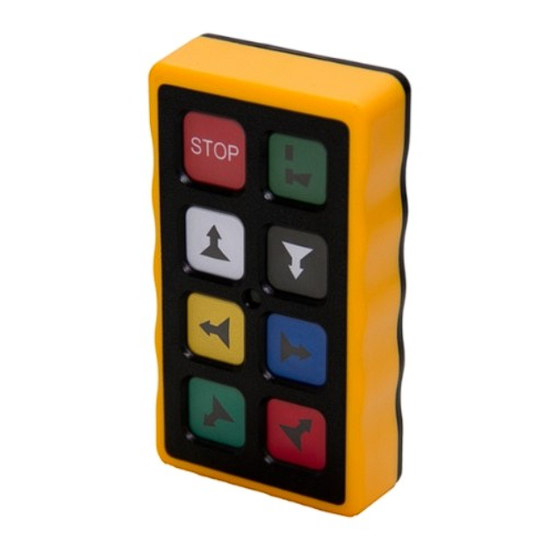

  • Page 3 3. TRANSMITTER PARTS Switches Battery Compartment (3 AA batteries) Battery Cover...
  • Page 4 4. FUNCTIONAL DESCRIPTION 4.1. General Description • This transmitter is designed to transmit with RF-transmission duty cycle of 1%. • The transmitter will turn off automatically 2 seconds after all buttons are released. • STOP (S1) is an emergency stop button that has priority above all other buttons. •...
