Caroma Somerton Smart 829109 Manual

Somerton Smart
1.28/0.8 gpf (4.8/3 lpf)
Easy Height & Elongated
Dual Flush Toilet
Bowl #829109
Tank #810788
Vitreous China Dual Flush
High Efficiency (HET),
Two Piece Washdown Toilet

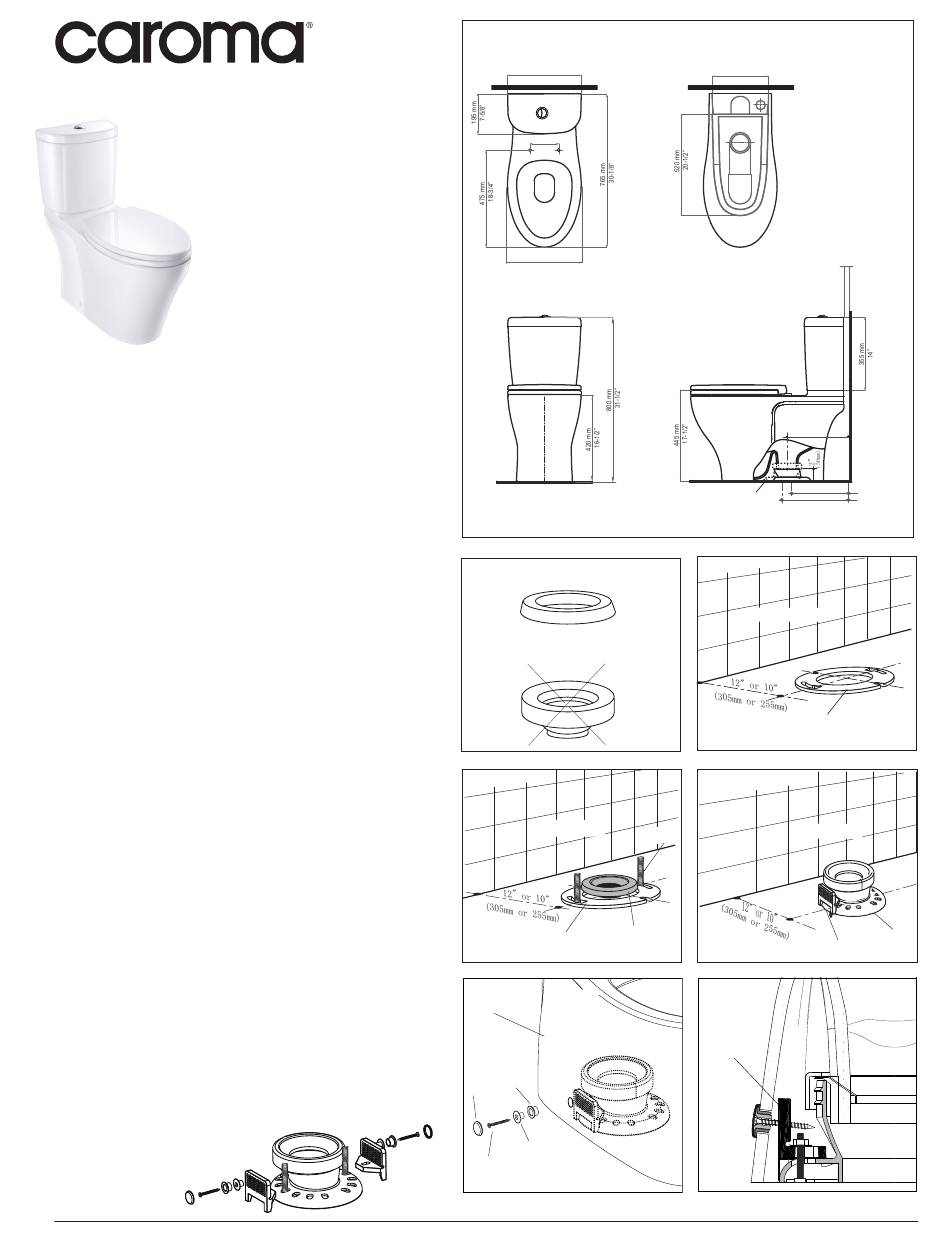

PLUMBER'S INSTALLATION INSTRUCTIONS. PLEASE
READ CAREFULLY BEFORE INSTALLATION.
Rough in:
It is possible to fix the toilet into 10" (255mm) or 12" (305mm)
rough in positions by rotating the offset adaptor as detailed in Fig.1
IMPORTANT:
Reducing wax ring MUST NOT be used when installing this
toilet bowl as detailed in Fig.2.
Working Water Pressure:
USA & Canada: Recommended working water pressure is
20-80psi (140-550Kpa).
Installation Procedure：
1. It is important for the installation of Somerton Smart two
piece washdown bowl that the closet flange be accurately
set out from the finished wall as detailed in Fig.3.
2. Position wax ring and offset adaptor onto closet bolts as
detailed in Fig. 4 and 5, ensuring that the offset adaptor is
positioned for 10" (255mm) or 12" (305mm) rough in as
detailed in Fig.1.
3. Place a fixing bracket onto each closet bolt and secure by hand
tightening nuts and washers onto the closet bolts as detailed
in Fig.5. Apply an additional turn for final installation by a wrench.
4. Ensure that the area around the closet bowl is clean and
free from building materials.
5. Accurately align the closet bowl over the offset adaptor
and lower into position.
6. Insert the plastic bushing and brass bushing into the bowl
fixing hole as shown in Fig.6. Secure the bushings through the
holes in fixing bracket with SS screws as shown in Fig. 7. Spacing
between the outside of the Somerton bowl and the fixing bracket
can vary. To ensure the best possible installation 2 lengths of SS
screws have been supplied. Start with the shorter 30mm (1-3/16")
set of SS screws and fasten as shown in Fig. 7. If when fastening
there is no resistance, (meaning that the screw has not sufficiently
fastened into the fixing bracket), substitute the longer 55mm
(2-3/16") screws. Do not start with the longer hardware as you do
not want the screws to insert past the fixing bracket into the offset
adaptor, as this can affect your seal. Cover the holes with cap.
7. It is recommended that a bead of silicone caulking is applied
fully around base of the closet bowl, leaving 1-2" at the rear.
8. Remove any excess silicone caulking.
Fixing Bracket Assembly
687088
(w/ 30 & 55mm Long Screw)
Caroma International Pty Ltd. ABN 90 35 053 413 157
360 mm
14-1/8"
140 mm
5-1/2"
360 mm
14-1/8"
Fig.1
Standard Wax Ring
Reducing Wax Ring
Fig.2
Finished Wall
Closet Bolt
Wax Ring
Closet Flange
Fig.4
Somerton Bowl
Plastic
Bushing
Cap
Brass Bushing
SS Screw
Fig.6
270 mm
10-5/8"
25 mm (1")
11" (280mm)
10"(255mm)
Offset outlet Connector
12"(305mm)
Finished Wall
Closet Flange
Fig.3
Finished Wall
Fixing
Fig.5
Bracket
Fixing
Bracket
Fig.7
Date of Issue: March 2024
Adaptor
