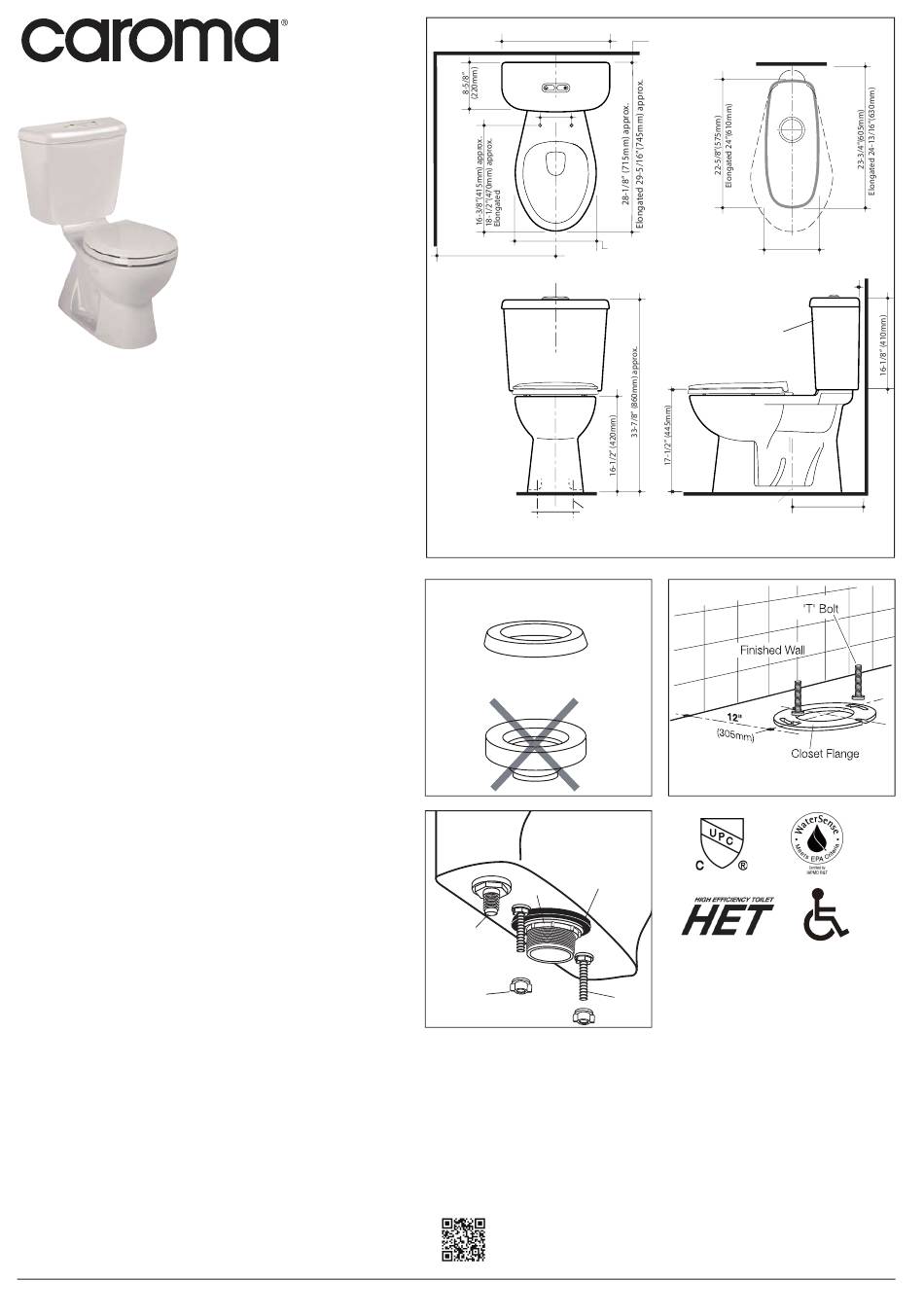

Caroma Sydney Smart II 305 Installation Instructions

PLUMBERS INSTALLATION INSTRUCTIONS. PLEASE
READ CAREFULLY BEFORE INSTALLATION.
Rough in:
It is essential for the installation of the Sydney II 305 Two Piece
Washdown toilet that the closet flange be accurately set out
from the finished wall as detailed in Fig.3.
IMPORTANT:
Reducing wax ring MUST NOT be used when installing this
toilet bowl, as detailed in Fig.2.
Working Water Pressure:
USA & Canada: Recommended working water pressure is
20-80psi (140-550Kpa).
Closet Bowl Fixing Procedure:
1- Position 'T' bolts into closet flange, as detailed in Fig.3.
2- Ensure that the area around the closet bowl is clean and
free from building material.
3- Position wax seal onto closet flange.
4- Accurately align the closet bowl over the closet flange and
lower into position.
5- Secure Closet bowl by hand tightening nuts and washers
onto the 'T' bolts.
Apply an additional / turn for final installation.
1
2
6- It is recommended that a bead of acetic cured silicone
caulking is applied fully around base of the closet bowl.
7- Remove any excess silicone caulking.
Tank Fixing Procedure:
1- Ensure that the foam seal is fitted onto the tail piece on
the underside of the tank, as detailed in Fig.4.
2- Lower tank onto closet bowl, allowing the two tank
fixing bolts protruding below the tank to fit through
the corresponding holes in the closet bowl.
3- Fit the plastic wing nuts provided onto the tank fixing bolts
which are protruding through the closet bowl and gradually
tighten the left and right hand nuts by hand to evenly secure
tank to closet bowl.
4- Connect water supply and check operation.
Note: Tapered rubber seal and wing nut assembled at inlet
valve connection end is for 3/8" hard tube/pipe connection.
Remove them if 7/8" ballcock braided hose is used.
Caroma International Pty Ltd. ABN 90 35 053 413 157
Sydney Smart II 305
1.28/0.8 gal (4.8/3 L)
Round Front Bowl &
Elongated Bowl
Vitreous China Dual Flush
High Efficiency (HET),
Two Piece Ultra Low Flush
(ULF) Washdown Toilet.
18-7/8" (480mm)
140mm
5-1/2"
18"(455mm min.)
6"
Bolt Fixing
(152mm) Centre
Fig. 1
Standard Wax Bowl
Ring
Reducing Wax Bowl
Ring
Fig. 2
Tank Fixing
Detail
Foam
Tank Seal
Nut
Inlet Valve
Connection
end
Wing Nut
Fig. 4
All measurements are subject to accepted manufacturing tolerances. To ensure complete accuracy
please check actual product dimensions before drilling for installation.
The manufacturer reserves the right to change specifications at any time without giving prior
notification.
This product should be installed by a qualified plumber. Local authority, Water Board, and Building
Regulations may apply to the installation of this product, and you should consult the appropriate
bodies on these requirements. Failure to comply may invalidate the product warranty.
For further information please visit our website
www.sustainablesolutions.com
1"(25mm) approx.
9-7/8"
14-3/8"(365mm)
250mm
Sydney II Cistern
Center Line of Outlet
Fig. 3
Fixing
Bolt
Date of Issue: 5/9/2014
1"(25mm) approx.
12" (305mm)
P/N 591000
