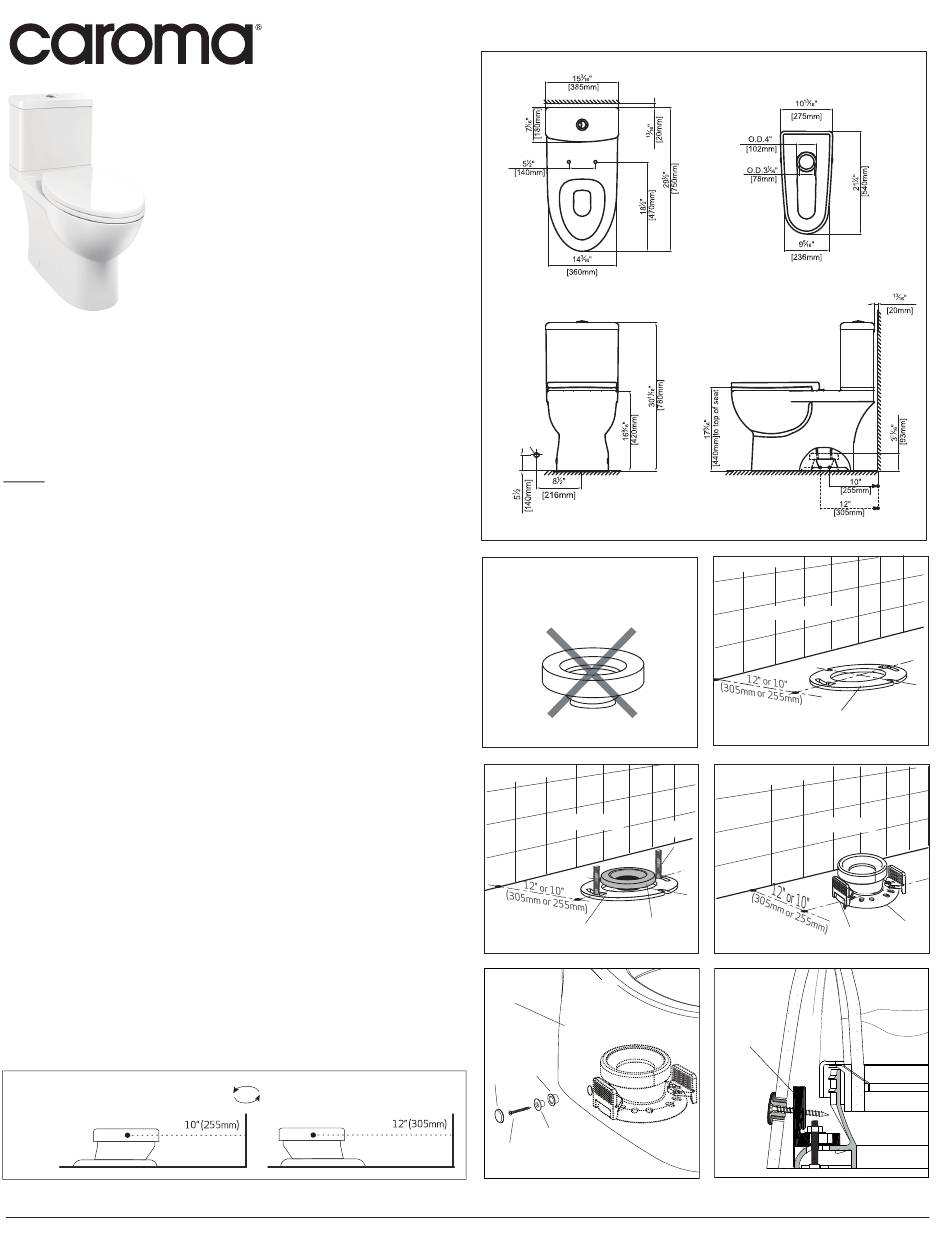

Caroma Caravelle Smart Two Piece 920102W Installation Instructions

Caravelle Smart Two Piece
1.28/0.8 gpf (4.8/3 lpf)
Easy Height & Elongated
Vitreous China Dual Flush High
Efficiency (HET) Washdown Toilet
Bowl: #920102W
Tank: #920100W
Plumbers Installation Instructions
PLEASE READ CAREFULLY BEFORE INSTALLATION.
Rough in:
This toilet can be installed into a 10" or 12" rough in, by rotating the
offset adapter.
IMPORTANT:
Do not use a wax ring with a reducing horn on this toilet as it reduces
the flushing efficiency as shown in Fig.1.
Working Water Pressure:
USA & Canada: Recommended working water pressure 20-80psi
(140-550Kpa).
Flushing Operation:
Push down firmly the large button for a full flush (1.28 gpf/4.8 lpf) and
the small button for a reduced flush (0.8 gpf/3 lpf).
Installation Procedure:
1. It is important for the installation of Caravelle Smart 2 PC washdown
bowl that the closet flange be accurately set out from the finished wall
as detailed in Fig.2.
2. Position wax ring and offset adapter onto closet bolts as detailed in
Fig. 3 and 4, ensuring that the offset adapter is positioned for 10"
(255mm) or 12" (305mm) rough in as shown in Fig.7 below.
3. Place a fixing bracket (#687088) onto each closet bolt and hand tighten
the nuts and washers onto the closet bolts as detailed in Fig.4.
Apply an additional turn by wrench for final installation.
4. Ensure that the area around the closet bowl is clean and free from
building materials.
5. Accurately align the closet bowl over the offset adapter and lower into
position.
6. Insert the plastic and brass bushings into the bowl fixing holes as shown
in Fig.5. Secure the bushings through the holes in fixing bracket with SS
screws as shown in Fig.6. Cover the holes with caps.
7. It is recommended that a bead of silicone caulking is applied fully
around base of the closet bowl, leaving 1-2" at the rear of the bowl.
8. Remove any excess silicone caulking.
Fig.7
Sustainable Solutions Vancouver, BC, Canada + Ferndale, WA, USA
Location of
Angle Stop
Wax Ring with Plastic Reducing Horn
Fig.1
Finished Wall
Closet Bolt
Wax Ring
Closet Flange
Fig.3
Closet Bowl
Plastic
Bush
Cap
Brass Bush
SS Screw
Fig.5
Finished Wall
Closet Flange
Fig.2
Finished Wall
Adaptor
Fixing
Fig.4
Bracket
Fixing
Bracket
Fig.6
Date of Issue: March 2024
