i�TOA
CEILING MOUNT SPEAKER
Thank you for purchasing TOA's Ceiling Mount Speaker.
Please carefully follow the instructions In this manual to ensure long, trouble-free use of your equipment.
1. SAFETY PRECAUTIONS
• Before Installation or use, be sure to carefully read all the instructions in this section for correct and safe operation.
• Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or cautions regarding safety.
• After reading, keep this manual handy for future reference.
& WARNING
Indicates a potentially hazardous situation which, if
mishandled, could result in death or serious personal
injury.
• Install the unit only In a indoor dry location that can structurally
support the weight of the unit and the mounting bracket. Doing
otherwise may result in the unit falling down and causing
personal injury an/or property damage.
• Do not use other methods than specified to mount the bracket. If
extreme force is applied to the unit, it could fall off and possibly
resulting in personal injuries.
&ATTENTION
lndique une situation potentiellement dangereuse qui, si
mal utilise, pourrait entra\'ner la mort ou des blessures
graves.
• Installer l'appareil uniquement dans un endroit sec interieur qui
peut structurellement supporter le poids de l'appareil et le
support de montage. Sinon, cela peut entra\'ner la chute de
l'appareil sur le sol et causer des blessures et / ou des
dommages materials.
• N'utilisez pas d'autres methodes que celles specifiees pour
monter le support. Si une force extreme est appliquee a l'unite, ii
pourrait tomber et entra\'ner des blessures corporelles.
2. GENERAL DESCRIPTION

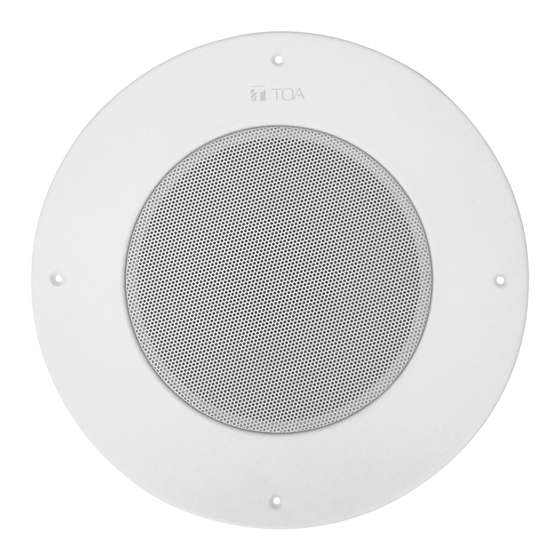

The PC-580RU Ceiling Mount Speaker is of all heavy-duty metallic construction with an 8-inch speaker and 5W transformer to be used in
25V/70V audio distribution systems. It is listed to UL 1480 UUMW/ULC-S541 (Fire Alarm Signaling) and UL2043 (use in air handling space)
for the use in a variety of commercial applications such as Mass Notification, Fire Voice Signaling, General Paging and Background Music
Distribution. The optional back can HY-BC580U shall be used for installing the speaker even in air handling spaces by meeting UL
requirements. The Input impedance can be easily changed by transformer tap position and its dual push-in temlnal helps quick daisy-chain
wiring.
3. SPECIFICATION
Model No.
Rated Input
Rated Impedance
Sensitivity
Freauencv Response
Speaker Component
Maqnet Size
Maanet Weiaht
Flux Density
Volume Control
Operatinq Temperature
Dimensions for Fixinq Hole
Applicable Cable
Connection
DC Blockinq Capacitor
Finish
Dimensions
Weiaht
Accessory
Option
PC-580RU
5W ( 70. 7 V line and 25 V line)
70.7 V line: 1 kO (5 W), 2 kO (2.5 W), 5 kO (1 W), 8.3 kO (0.6 W), 16 .6 kO (0.3 W)
25 V line: 125 0 (5 W), 250 0 (2.5 W), 6 25 0 (1 W), 1 kO (0.6 W), 2 kO (0.3 W)
97 dB ( 1 W, 1 m)
50 Hz - 16 .5 kHz
200 mm ( 8") Dual cone-type
¢80 X ¢32 X 15 mm (3.15" X 1.26 " X 0.59"l
315 a (11.11 oz)
11,300 qauss
·c
·c
-10
to +50
(14 'F to 122 'F)
Mountinq hole: ¢228.6 ±3 mm ( 9" ±0.12")
Solid wire: ¢0.8 - ¢1.6 (AWG 20 - 12)
Push wire connection (Bridqinq terminal-2 branch type)
33 µF
Frame: Steel plate, white, paint
Grille: Steel net, white, paint
x
¢324
103 (D) mm (12.76 "
1.6 0 ka (3.53 lbs)
Mountinq screw MS X 38 ... 4, Paper pattern
Back can ( for UL/ULC certified installation):
Back can ( for other installation): BB-580
Mount rail: Q-HY-TB2
INSTALLATION MANUAL
&CAUTION
Indicates a potentially hazardous situation which, if
mishandled, could result in moderate or minor personal injury,
and/or property damage.
• Avoid touching the unit's sharp metal edge to prevent injury.
• To avoid electric shocks, be sure to switch off the amplifier's
power when connecting speakers.
• Do not operate the unit for an extended period of time with the
sound distorting. This is an indication of a malfunction, which in
turn can cause heat to generate and result In a fire.
&AVERTIR
lndique une situation potentiellement dangereuse qui, si mal
utilises, pourralt entra\'ner des blessures moderees ou
mineures eVou des dommages materials.
• Evltez de toucher le bord metallique tranchant de l'appareil pour
eviter les blessures.
• Pour eviter les chocs electriques, assurez-vous de mettre hors
tension l'amplificateur lors de la connexion haut-parleurs.
• N'utilisez pas l'appareil pendant une periods prolongee avec
distorsion
du
son.
dysfonctionnement, ce qui peut provoquer de la chaleur et
provoquer un incendie.
Potentiometer screw driver type, Wire wound 50 0
x
x
4.05")
¢324
1.65 ka (3.64 lbs)
.. , 1
HY-BC580U
PC-580RU AM
PC-580RVU AM
Ceci
est
une
Indication
PC-580RVU
x
103 (D) mm (12.76"
4.05")
d'un
