Toa PC-580S AM Installation Manual

i�TOA
CEILING MOUNT SPEAKER
Thank you for purchasing TOA's Ceiling Mount Speaker.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
1. SAFETY PRECAUTIONS
• Before installation or use, be sure to carefully read all the instructions in this section for correct and safe operation.
• Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or cautions
regarding safety.
• After reading, keep this manual handy for future reference.
&
WARNING
Indicates a potentially hazardous situation which, if
mishandled, could result in death or serious
personal injury.
• Install the unit in a indoor location that can structurally
support the weight of the unit and the mounting bracket.
Doing otherwise may result in the unit falling down and
causing personal injury and/or property damage.
• Do not use other methods than specified to mount the
bracket. If extreme force is applied to the unit, it could fall
off and possibly resulting in personal injuries.
2. GENERAL DESCRIPTION

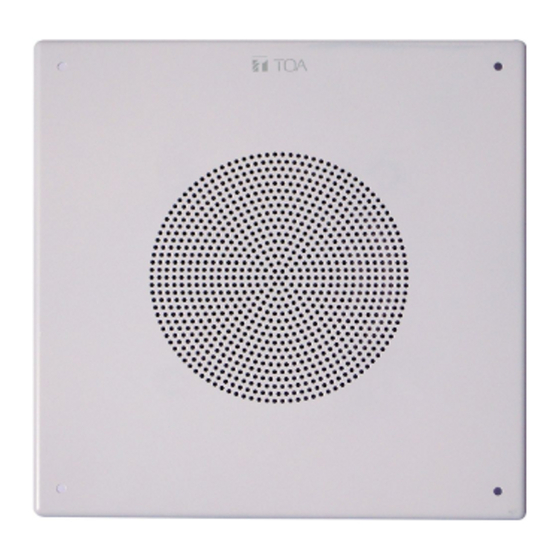

The PC-580S Square Ceiling Mount Speaker is of all heavy-duty metallic construction with an 8-inch speaker and 5W
transformer to be used in 25V/70V audio distribution systems. It delivers highly intelligible voice announcements and clear
music sounds in General Paging and Background Music Distribution applications. The optional back boxes are available for
flush or surface mount installations on the wall. The Input impedance can be easily changed by transformer tap position
3. SPECIFICATION
Model No.
Rated Input
Rated Impedance
Sensitivity
Frequency Response
Speaker Component
Maqnet Size
Maqnet Weiaht
Flux Density
Operatina Temperature
Dimensions for Fixinq Hole
Speaker Mountinq Method
Applicable Cable
Connection
Finish
Dimensions
Weiqht
Accessory
Option
5W ( 7 0. 7 V line and 25 V line)
70.7 V line: 1 kO (5 Wl, 2 kO (2.5 Wl, 5 kO (1 Wl, 8.3 kO (0.6 Wl, 16.6 kO (0.3 Wl
25 V line: 125 0 (5 W), 250 0 (2.5 W), 625 0 (1 W), 1 kO (0.6 W), 2 kO (0.3 W)
97 dB ( 1 W, 1 m)
50 Hz - 16.5 kHz
200 mmm ( 8") Dual cone-type
l'l80 X l'l32 X 15 mm (3.15" X 1.26" X 0.59")
315 q (11.11 oz)
11,300 qauss
-10 to +50 (14 'F to 122 'F)
·c ·c
Mountinq hole: l'l228.6±3 mm ( 9" ±0.12")
Screw in type
Solid wire: l'l0.8 - l'l1.6 (AWG 20 - 12)
Push wire connection ( Bridqinq terminal-2 branch type)
Panel: Steel plate, white, paint
318 X 318 87 mm (12.52" X 12.52"
X (D)
1.90 kq (4.19 lbs)
Screw M5 X 38 ... 4, Paper pattern ... 1
Flush mount back box: Q-BB-580S
Surface mount back box: Q-BB-580W
INSTALLATION MANUAL
&
CAUTION
Indicates a potentially hazardous situation which, if
mishandled, could result in moderate or minor personal
injury, and/or property damage.
• Avoid touching the unit's sharp metal edge to prevent
injury.
• To avoid electric shocks, be sure to switch off the
amplifier's power when connecting speakers.
• Do not operate the unit for an extended period of time
with the sound distorting. This is an indication of a
malfunction, which in turn can cause heat to generate and
result in a fire.
PC-580S
3.43")
X
PC-580S AM
