Toa PC-1860EN Instruction Manual

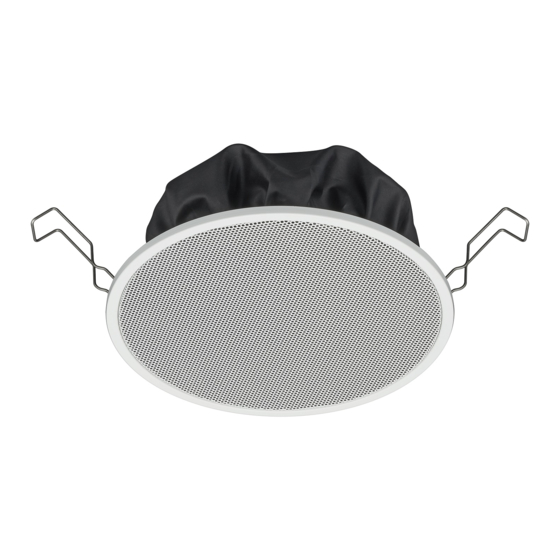

Ceiling mount speaker
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

CEILING MOUNT SPEAKER
Thank you for purchasing TOA's Ceiling Mount Speaker.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

TABLE OF CONTENTS

1. SAFETY PRECAUTIONS ............................. 1
3. INSTALLATION ............................................ 3

1. SAFETY PRECAUTIONS

• Before installation or use, be sure to carefully read all the instructions in this section for correct and safe
operation.
• Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or
cautions regarding safety.
• After reading, keep this manual handy for future reference.
WARNING
Indicates a potentially hazardous situation which,
if mishandled, could result in death or serious
personal injury.
When Installing the Unit
• Refer all installation work to the dealer from
whom the speaker was purchased. Installation
work requires extensive technical knowledge and
experience. The speaker may fall off if incorrectly
installed, resulting in possible personal injury.
• Install the speaker only in a location that can
structurally support the full weight of the unit and
mounting bracket. Doing otherwise may result in
the speaker falling down and causing personal
injury and/or property damage.
Manufacturer:
TOA Corporation
7-2-1, Minatojima-Nakamachi, Chuo-ku, Kobe, Hyogo,
Japan
4. WIRING DIAGRAMS .................................... 4
6. SPECIFICATIONS ........................................ 5
• Since the unit is designed for in-door use, do not
• Do not use other methods than specified to install
• Use screws that are appropriate for the ceiling's
• Ensure that all screws are securely tightened. If
Traceability Information for Europe
INSTRUCTION MANUAL
install it outdoors. If installed outdoors, the aging of
parts causes the unit to fall off, resulting in personal
injury. Also, when it gets wet with rain, there is a
danger of electric shock.
the speaker. Extreme force is applied to the speaker
and the speaker could fall off, possibly resulting in
personal injuries.
material and structure. Failure to do so may cause
the speaker to fall, resulting in material damage and
possible personal injury.
they are loose after installation, the speaker could
fall down, possibly resulting in personal injury.
Authorized representative:
TOA Electronics Europe GmbH
Suederstrasse 282, 20537 Hamburg,
Germany
PC-1860EN
PC-2360EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PC-1860EN and is the answer not in the manual?

Questions and answers

Related Manuals for Toa PC-1860EN

Summary of Contents for Toa PC-1860EN

  • Page 1: Table Of Contents

    INSTRUCTION MANUAL CEILING MOUNT SPEAKER PC-1860EN PC-2360EN Thank you for purchasing TOA’s Ceiling Mount Speaker. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment. TABLE OF CONTENTS 1. SAFETY PRECAUTIONS ......1 4. WIRING DIAGRAMS ........4 2. GENERAL DESCRIPTION AND FEATURES ... 2 5.

  • Page 2: General Description And Features

    2. GENERAL DESCRIPTION AND FEATURES The PC-1860EN and PC-2360EN are certified according to the European Standard EN 54-24: 2008. Integrated with a speaker unit and panel, the PC-1860EN and PC-2360EN Ceiling Mount Speakers are of metallic construction and ideal for use in a voice alarm system. They feature spring catch mechanism for easy speaker mounting to the ceiling.

  • Page 3: Installation

    3. INSTALLATION All the figures in this section show PC-1860EN. 3-2. Change the input impedance as needed. The speaker's input is factory-preset to 1.7 kΩ. When changing the input impedance, Step 1. Using the supplied paper pattern as a guide, detach the black wire connected to the open a mounting hole of the dimension matching transformer, and reinsert it into specified below in the ceiling.

  • Page 4: Wiring Diagrams

    HOT (black) 13 kΩ 8 Ω 6.7 kΩ 3.3 kΩ 1.7 kΩ* (–) COM (white) * Factory-preset 5. FREQUENCY RESPONSE (1 W, 4 M) 5.1. PC-1860EN [dB] [Hz] 10 k 20 k 5.2. PC-2360EN [dB] [Hz] 10 k 20 k...

  • Page 5: Specifications

    6. SPECIFICATIONS Model No. PC-1860EN PC-2360EN Standards Certified to the European Standard EN 54-24: 2008 Loudspeaker for voice alarm systems for fire detection and fire alarm 1438 systems Rated Input 6 W (100 V line), 3 W (70 V line) Rated Impedance 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W) 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W) Sensitivity 94 dB (1 W, 1 m) (500 Hz – 5 kHz, pink noise) 92 dB (1 W, 1 m) (100 Hz – 10 kHz, pink noise) 80 dB (1 W, 4 m) (100 Hz – 10 kHz, pink noise) Maximum 99 dB (6 W, 1 m) (100 Hz – 10 kHz, pink noise) Sound Pressure Level 87 dB (6 W, 4 m) (100 Hz – 10 kHz, pink noise) Frequency Response 80 Hz – 20 kHz (peak –20 dB)
  • Page 8 URL: https://www.toa.jp/ 133-01-00250-00...
