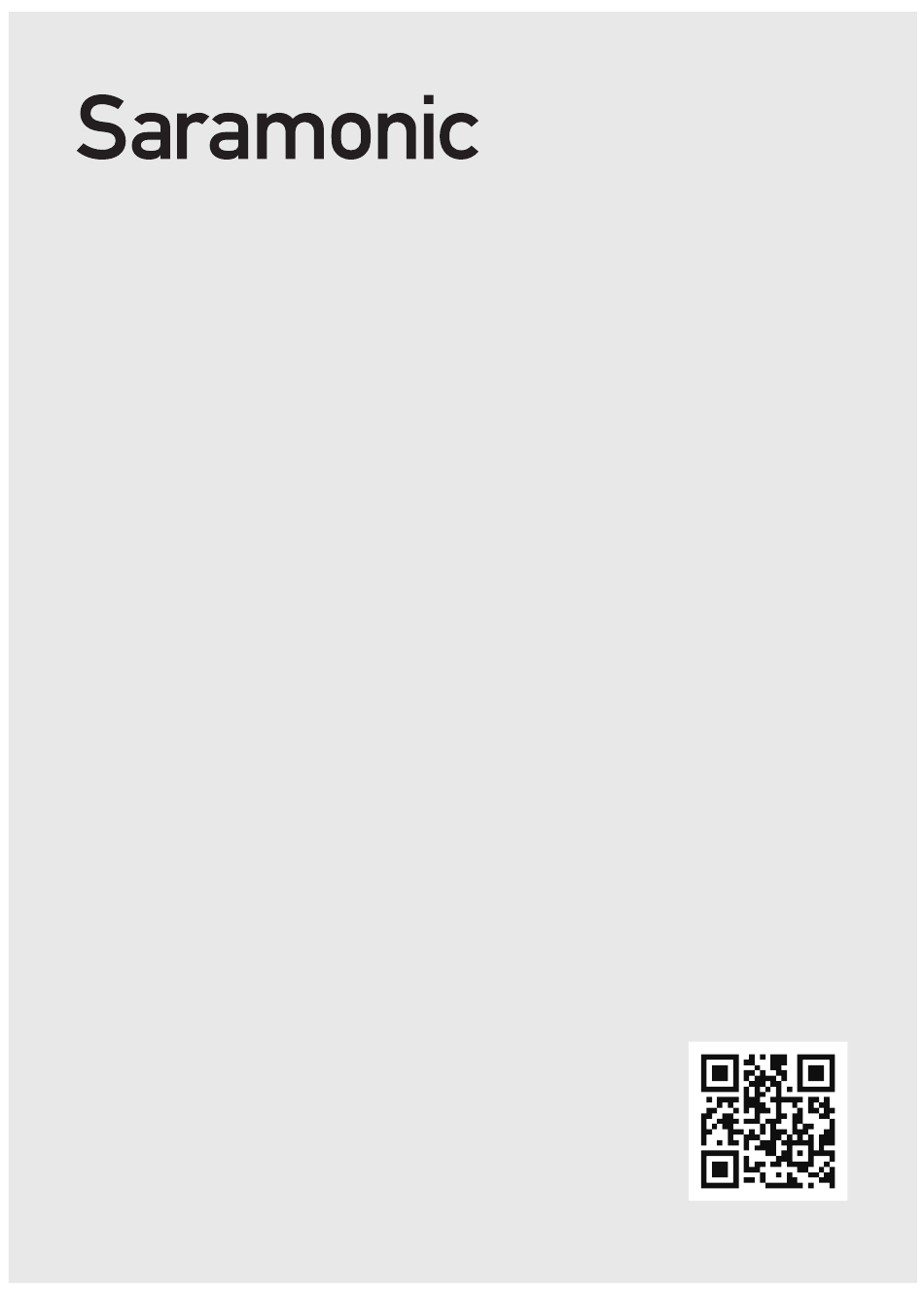

- Page 1 2.4GHz Wireless Smart Microphone with Touchscreen 2.4GHz无线触屏智能麦克风 BlinkMe User Manual ⽤⼾⼿册...
-
Page 2: General Introduction

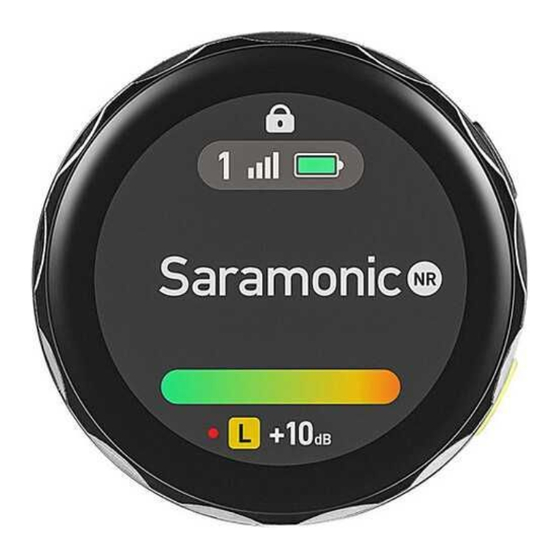

• When using and storing, please keep away from the dust and moisture. General Introduction The Saramonic BlinkMe, a professional dual channel wireless microphone system with touchscreen, which can be used with different magnetic accessories. This ultra-portable and incredibly lightweight mic system boasts universal compatibility with tablets, laptops, cameras, recorders, mixers, and other audio/ video recording devices. - Page 3 Overview Transmitter ① ② ③ ⑥ ⑦ ④ ⑤ ①Microphone Capsule ⑤NR Button • Press to enable or disable noise ②Touchscreen reduction. • Press twice to enable or disable onboard recording. ③Power Button • Press and hold for 1.5 seconds to •...
- Page 4 Receiver ① ⑥ ② ② ⑦ ③ ④ ④ ⑧ ⑤ ⑨ ①LED Indicator ⑤+/- Button Indicates the status of the receiver Press to turn up or turn down the when its screen is turned off. output gain level of the receiver in 3dB increments from -12dB to Indicator Status...
-
Page 5: Touchscreen Operations
Touchscreen Operations Transmitter • From the Home screen, press the power button to turn the screen on or off. • To return to the Home page from any other pages, press the power button once. • Press the power button twice to lock or unlock the screen and return to the Home page. - Page 6 From the Home screen, swipe up from the bottom of the screen to access device settings. Swipe up or down to select Onboard Recording, Noise Reduction, TX Gain, Brightness, Display and Settings. From device settings, tap to return to the previous screen. When the function is activated, the onboard recording can only be disabled by operating the screen instead REC Protection...
- Page 7 3. Tap the screen to apply the selected theme. If you want, you also can customize the wallpaper for your Home screen on the Saramonic app. To download the app, scan the QR code on the screen.
- Page 8 Receiver • To return to the Home page from any other pages, press the power button once. • Press the power button twice to lock or unlock the screen and return to the Home page. Indicates the screen of the receiveris locked or unlocked. It is recommended that you can lock your screen to avoid accidental taps during a recording.
- Page 9 From the Home screen, swipe down from the top of the screen to access device settings. Swipe left or right to select Recording Mode, RX Gain, TX Gain, Display and Settings. From device settings, swipe up from the bottom of the screen to return to the previous screen.
- Page 10 Tap to switch. Microphone unmuted Indicates the remaining available time for Memory recording. Tap to access a submenu. Tap to erase the onboard recording files Format of the transmitter. Using BlinkMe Transmitter Use the magnetic clip to attach the transmitter to clothes.
- Page 11 Use the magnets to attach the transmitter to clothes. Receiver 1. Connect a camera, a smartphone or a laptop to the 3.5mm auto-sensing audio output of the receiver with an adapter cable. 2. Plug your headphones for audio monitoring as your need.
- Page 12 How to Pair The transmitter and receiver are paired by default. If they are disconnected, please tap the screens of the transmitter and receiver to enter Settings, and then tap "Pair" to reconnect. 1. When both TX1 and TX2 need to be paired with RX, operate the transmitter first, and then operate the receiver.
- Page 13 Audio Output for Dual Devices To output audio simultaneously, connect the receiver to two devices via the 3.5mm auto-sensing output or USB-C output using a correct cable. Onboard Recording • The memory can store up to 22 hours of recording at the 48kHz/16bit sampling rate. The memory can store up to 15 hours of recording at the 48kHz/24bit sampling rate.
- Page 14 3GB free of 7.28GB 5GB free of 7.28GB Place the transmitters on the receiver, and then connect a laptop to the receiver's USB-C port to read the recording files of TX1 and TX2.(You can rename the device in the Saramonic app.)
-
Page 15: Specifications
Specifications Display 2.4GHz digital frequency Transmission Type Digital modulation Modulation Omnidirectional Polar Pattern Antenna In-built antenna Operating Range 328' (100m) (without obstacles) Sampling Rate 48KHz Frequency Response 20Hz-20KHz >80dB Signal-to-Noise Ratio 110dB SPL Maximum SPL Sensitivity -39±2dB Audio Input Connector TX: In-built condenser microphone Monitoring Connector RX: 3.5mm monitor port... -
Page 16: Troubleshooting
Troubleshooting If you encounter problems when using the unit, please refer to the following checklist before contacting technical support. If the problem cannot be solved, please contact the dealer's after-sales service department. • If there is no sound from the unit or no sound when connected to an external device ①... -
Page 17: Other Accessories
Other Accessories ① ② ③ Screen Protector for Transmitter 3.5mm TRS Male to Lightning Audio Cable (SR-C2000) (sold separately) ① ② ③ Screen Protector for Receiver ①Remove it 3.5mm TRS Male to USB-C ②Clear the dust on the screen Audio Cable (SR-C2001) ③... - Page 18 Contents of BlinkMe B2 2× 1× 2× Transmitter Receiver Magnetic Clip 1× 1/4'' Magnetic 4× 2× Fur Cold Shoe Adapter Magnet Windshield 1× USB-A to 1× MVC 1× 3.5mm TRRS to USB-C Cable Phone Holder 3.5mm TRRS Audio Cable 2× Screen Protector 1×...
- Page 19 FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 20 For better recording experience, the application Saramonic is recommended. 为获得更好的录制体验， 推荐使⽤枫笛Saramonic ⾃主研发应⽤软件Saramonic。 Scan the QR code and follow us！ Shenzhen Jiayz Photo Industrial., Ltd 深圳市⻓丰影像器材有限公司 A16 Building, Intelligent Terminal Industrial Park of Silicon Valley Power, Guanlan, Longhua District, Shenzhen, China 深圳市⻰华区观澜街道⼤富⼯业区硅⾕动⼒智能终端产业园A16栋...
