Summary of Contents for Saramonic SmartMic MTV500

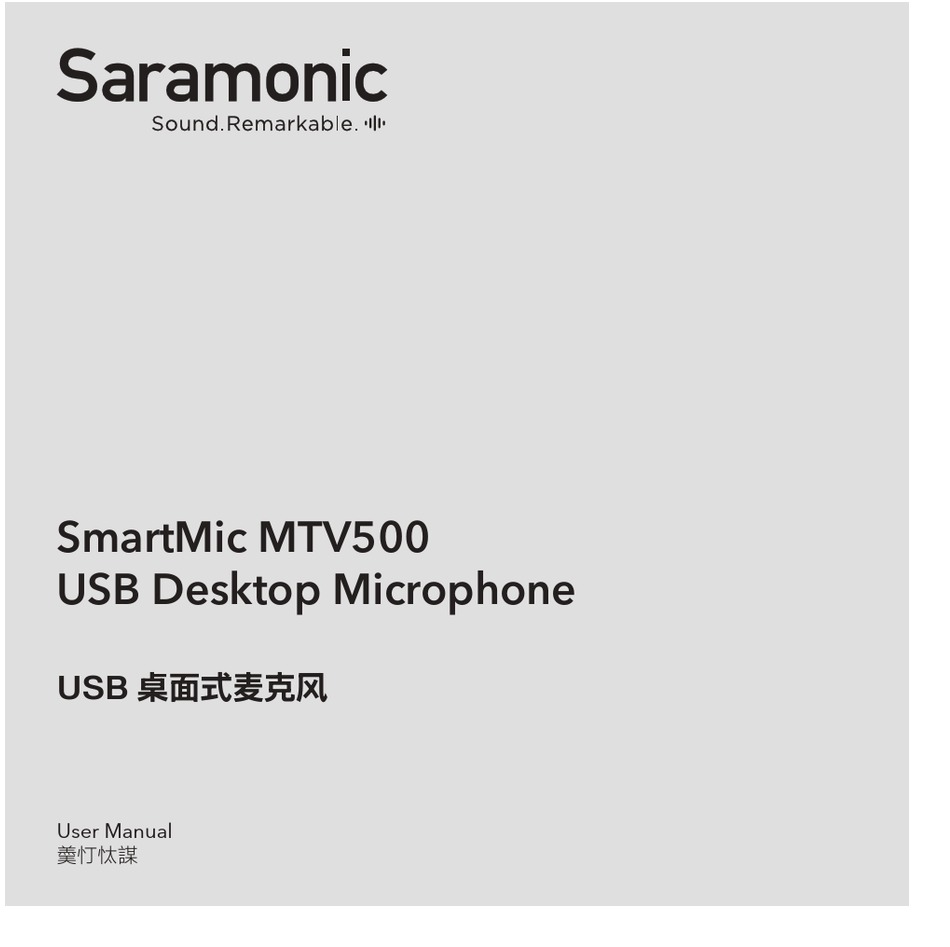

- Page 1 SmartMic MTV500 USB Desktop Microphone USB 桌面式麦克风 User Manual 鋀宔寯㘄...
- Page 2 Please save it for your future reference. If the user manual can not help you to solve problems, please ask your retailer for help or email us: info@saramonic.com. Cautions 1.Do not use the unit under moisture condition or water, don't expose it to rain.
- Page 3 The SmartMic MTV500 also incorporates real-time monitoring features, like a built- in headphone jack with a volume control, allowing you to directly monitor zero- latency microphone signal. No need to install any driver, the SmartMic MTV500 can be directly connected to the computer through the supplied cable.
-
Page 4: Product Structure

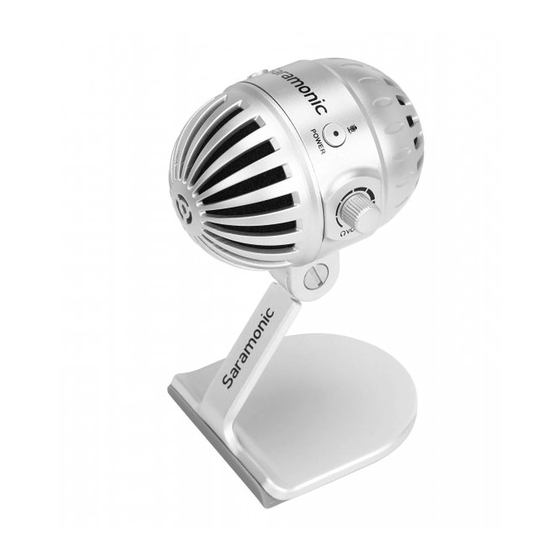

Product Structure ② ④ ① ⑥ ③ ⑤ ⑦ ⑧ ① Pop filter ④ Power/Mute button Mode Indicator Status ② Polar pattern switch Power ON Solid Green Light Mute ON Flashes Green Light Mode Indicator Status Omnidirectional Lights off ⑤ Volume control Cardioid Green Light ③... -
Page 5: Operational Instruction
⑦ Standard USB-C output (DC 5V) ⑧ Desktop stand Operational Instruction 1. Unfold the microphone and lay it flat on the table, adjust it to an ideal angle, And always face the front side of the microphone's pop filter to you. - Page 6 GAIN VOLUME 3. No need to install any driver, the SmartMic MTV500 can be directly connected to the computer. Connect to the computer through the supplied cable, and plug into the USB-C output at the back of the microphone. The POWER indicator lights...
- Page 7 4. Select SmartMic MTV500 as the input/output device on your computer. 5. Polar Pattern Introduction Omnidirectional Pick up sound equally from all directions, capturing a natural blend of voice and ambiance with low sensitivity to wind and handling noise, as well as to vocal plosives.
-
Page 8: Setups Procedure
5.Choose "SmartMic MTV500" as output device and click "OK". Windows Setup Procedure 1. Connect the microphone to your computer via the supplied USB-C to USB-A cable. 2. Open the control panel and select the "SmartMic MTV500" 3. Select "Audio" tab and choose "SmartMic MTV500" as input device. - Page 9 Tips VOLUME 5-30cm To get optimum sound performance, adjust the microphone's pick-up angle. For maximum clarity and intelligibility, position the microphone pointed directly at the subject's mouth. Before adjusting the angle, slightly loosen the knobs. Avoid tightening or loosening knobs with great force as it might damage the screw threads. Always mount the pop filter to avoid plosive when recording.
-
Page 10: Specifications
Specifications Polar Pattern Omnidirectional/Cardioid Frequency Response 20-20kHz Sensitivity -36±3dB(0dB=1V/Pa,1kH 1.5V 2.2K) Signal-to-noise ratio 80dB Maximum SPL 130dB Gain Control 0~39dB Operating Voltage 5V 150mA >16ohms Impedance 130mW Output power 0.01% Headphone Amplifier 15Hz-20,000Hz Frequency Response 100dB Signal-to-noise ratio 0~35 dB Headphone gain Material ABS housing... -
Page 11: Packing Lists
Packing Lists • SmartMic MTV500 Microphone • 1.2m (3.9') USB-C to USB-A audio cable • Warranty Card • User Mannual...
