Saramonic Vmic Pro Manual

1 Product Introduction
1.1 General Introductions

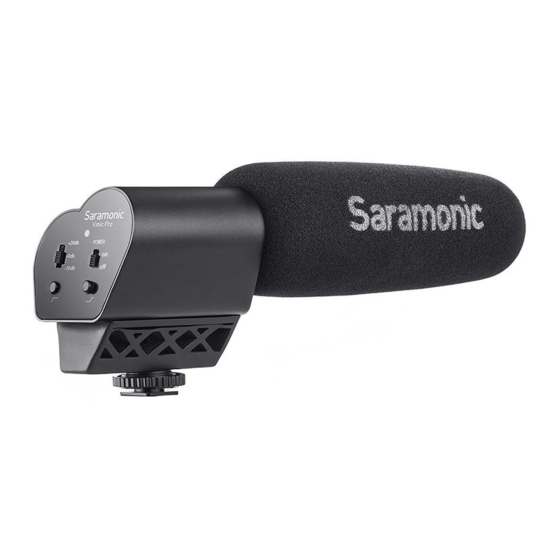

The Saramonic Vmic Pro is a super directional video condenser
microphone that provides professional audio for DSLR cameras and
camcorders. The Vmic Pro allows you to adjust level control (-10dB,
0dB, +20dB), high-pass filter (150 Hz) and high-frequency boost
(+6dB) to increase intelligibility of dialogue. The detachable 3.5mm
cable connects the Vmic Pro to your camera's audio input, while the
stereo headphone output allows you to monitor the incoming audio.
The Saramonic special designed shock mount system provides
isolation from vibration and mechanical noise.
1.2 Highlights
• Super directional video microphone
• Integrated shock mount system
• High pass filter (150 Hz)
• High frequency boost (+6dB)
• Three position level control (-10dB, 0dB, +20dB)
• Headphone monitor output
• 1/8'' audio output to camera
• LED power on/low battery indicator
• Pop shield included
• Lightweight all-metal construction
• Powered by two AA batteries
1.3 Product Structure
1
2 3
4
5
LED indicator
1
2 Three position level control (-10dB, 0dB, +20dB)
3 Power button
4 High-pass filter (150Hz)
High frequency boost (+6dB)
5
Vmic Pro
Super Directional Video Condenser Microphone For DSLR Cameras
and Video Cameras
Audio output jack
6
Headphone output
7
Battery compartment
8 9
Integrated shock mount
9
Cold shoe
10
2 Set Up Guide
2.1 Install the battery
Lock the battery compartment
1
Unlock the battery compartment
2
Insert the AA batteries into place aligning + and - polarity as shown.
