Saramonic SR-M500 User Manual

2.5 Specifications
Type Condenser Microphone
Directional Pattern Cardioid
Capsule 14mm condenser capsule
Frequency Range 22Hz to 18kHz
Sensitivity -40±3dB (0dB=1V/Pa,at 1kHz)
Output Impedance 200 ohm
Maximum SPL 135 dBU
Signal / Noise 75 dB SPL
24V phantom power
Power Requirements
48V phantom power
Output Connection 3 Pin XLR
Dimension 100 × 20 × 20 mm
Net Weight 39g (about 1.4 oz)
Frequency Response
Frequency Response :(0dB =1V/Pa, 1KHz)
+20
+10
0
-10
-20
-30
50 100 200 500 1K 2K 5K 10K

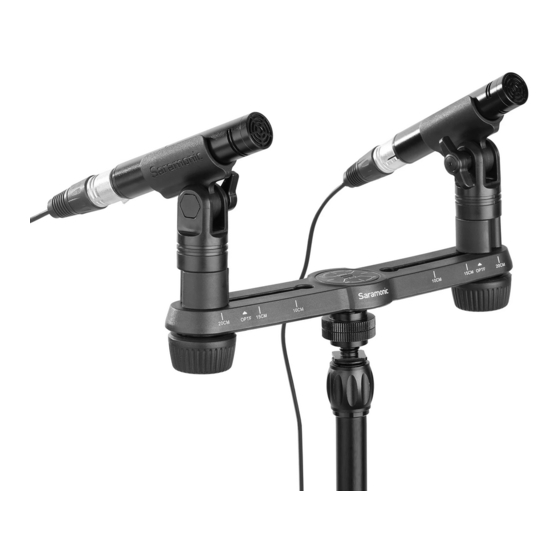

3 Packing List
SR-M500 microphone * 2
Stand mount * 2
Windshield * 2
www.saramonic.com
The Saramonic logo is trademark which is registered and owned by Saramonic International.
COPYRIGHT 2011-2021 SARAMONIC INTERNATIONAL ( A brand of DSQN )
Email: info@saramonic.co
m
20K
Matched Pair
Compact Cardioid
Condenser Microphones
User Manual
SR-M500
