Jiajia Horch 930V Owner's Manual

Battery powered ride-on
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

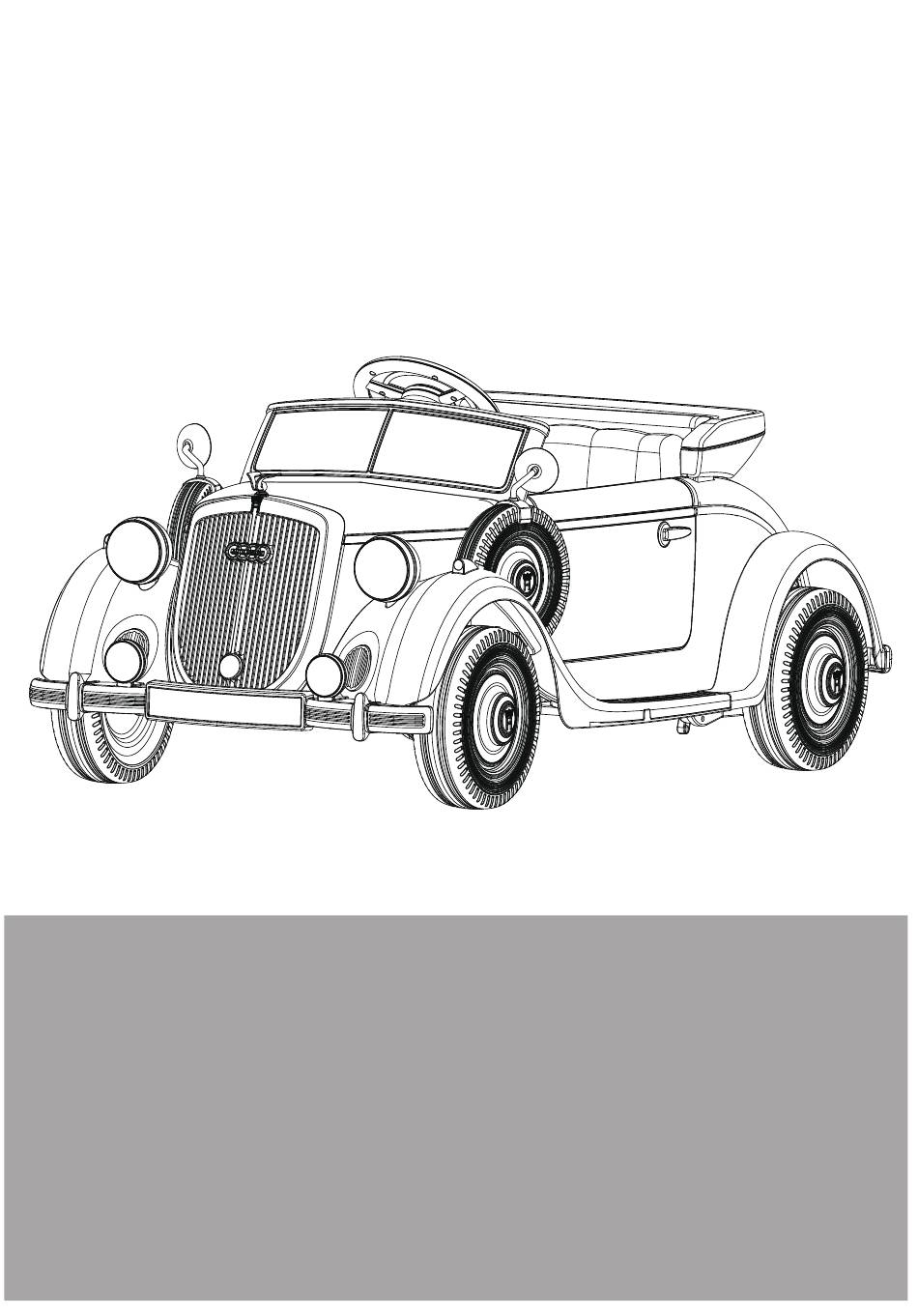

BATTERY POWERED RIDE-ON
BATTERY POWERED RIDE-ON
Styles and colo(u)rs may vary.
Made in China.
The owner's manual contains important safety information as well as assembly, use and
maintenance instructions.
The Ride-on Car must be assembled by an adult who has read and understands the
instructions in this manual.
Keep the package away from children and dispose of properly before use.
Keep this manual for future reference.
Horch 930V
Owner's Manual
with Assembly Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Horch 930V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jiajia Horch 930V

Summary of Contents for Jiajia Horch 930V

  • Page 1 Horch 930V BATTERY POWERED RIDE-ON BATTERY POWERED RIDE-ON Owner’s Manual with Assembly Instructions Styles and colo(u)rs may vary. Made in China. The owner’s manual contains important safety information as well as assembly, use and maintenance instructions. The Ride-on Car must be assembled by an adult who has read and understands the instructions in this manual.
  • Page 2 Follow the recommendations in this manual, they are designed to improve the safety and operation of your ride-on car and it’s rider. Horch 930V Electric Ride-on manufactured by Zhejiang Jiajia Ride-on Co.,Ltd. (Address: Xincang Industrial Zone, Xincang Town, Pinghu City, Zhejiang Province, China).

  • Page 3: User Notice

    User Notice │ 2 WARNING! • CHOKING HAZARD - Small parts. Not suitable for children under 36 months. The product contains small parts, keep children away when assembling. • ADULT ASSEMBLY REQUIRED. • Always remove protective material and poly bags and dispose before assembly.

  • Page 4: Parts Diagram

    Parts Diagram │ 3 HINT: Some parts shown are assembled on both sides of vehicle...

  • Page 5: Parts List

    Parts List │ 4 Q’ty (pcs) PART REMARKS PART NAME Vehicle body Ø12 washer Rear wheel Front wheel Lock nut Hubcap Rear axle Horch hood emblem Fog light Headlights Left and right Side mirror Steering wheel Windshield Seat For the rear wheels Split pin Spanner Charger...

  • Page 6: Attach The Rear Wheels

    Attach the Rear Wheels │ 5 Rear Bottom View Remove all the parts from the rear axle. 1. Align the holes on the gear box with the holes in the vehicle body, then insert the rear axle through the holes on the gear box and into the hole in the vehicle body, when inserting it half way, lift the another gear box so that the rear axle can go through it and protrude out.
  • Page 7 Attach the Front Axle │ 6 M5x16 machine screw Steering column Steering linkage Front axle plate Ø5 washer Ø5 lock nut Steering linkage Front axle plate Front Bottom View Cut off the plastic tie on the front axle with scissors. 6-1.

  • Page 8: Attach The Front Wheels

    Attach the Front Wheels │ 7 Front Bottom View Remove all the parts from the front axle. 1. Slide a Ø12 washer onto the front axle. 2. Slide a front wheel onto the front alxe. 3. Slide a Ø12 washer onto the front axle. 4.
  • Page 9 Attach the Headlights, Fog lights & Horch Hood Emblem │ 8 Turn the vehicle body upright. 1. Plug the light connector on the headlight into the connector on the vehicle body, 2. Insert the headlight into the hole on the vehicle body. Repeat for the other headlight. 3.
  • Page 10 Attach the Windshield, Side Mirrors & Steering Wheel │ 9 1. Insert the tabs on the windshield into the slots on the vehicle body. Push until it “click” into place. 2. “Snap” the side mirror to side of the vechiel. Repeat for the other side. 3-4.
  • Page 11 Connect the Power Supply & Attach the Seat │ 10 Rear Top View Battery connector Vehicle connector 1. Plug the Red vehicle connector into the Red motor connector on body as shown above. 2. Fit the seat to the vehicle body. 3.
  • Page 12 Use Your Ride-on │ 11 1. Power button: Turns the product on and off. 2. Inner pedal / outer pedal switch: ● Switch to "inner pedal” position, only the inner pedal is allowed to work, and the outer pedal has no effect. ●...
  • Page 13 Use the Outer Pedal │ 12 WARNING: The outter pedal and adult seat are only allowed to be used by an adult. Adult Adult seat Outer pedal 1. The guardian sits on the adult seat. 2. Turn on the power of the product. 3.

  • Page 14: Battery Disposal

    Charging │ 13 WARNING! • ONLY an adult is allowed charge and recharge the battery! • This product with Charging Protection: when charging, all functions will be cut off. • The POWER SWITCH (BUTTON) must be turned in OFF position when charging. •...

  • Page 15: Troubleshooting Guide

    Troubleshooting Guide │ 14 Possible Cause Solution Problem Vehicle does not run Battery low on power Recharge battery. Thermal fuse has tripped Reset fuse, see <Fuse> Check that the battery connectors are firmly plugged Battery connector or wires into each other. If wires are loose around the motor are loose contact your distributor please.
  • Page 16 Maintaining │ 15 • It is parents' responsibility to check main parts of the toy before using, Must regularly examine for potential hazard, such as the battery, charge, cable or cord, plug, screws are fastening enclosure of other parts and that in the event of such damage, the toy must not be used until that damage had been properly removed.
