Jiajia JJ012A Owner's Manual

Children's electronic toy car with remote control function
Hide thumbs Also See for JJ012A:
Table of Contents

Advertisement

Quick Links

Download this manual

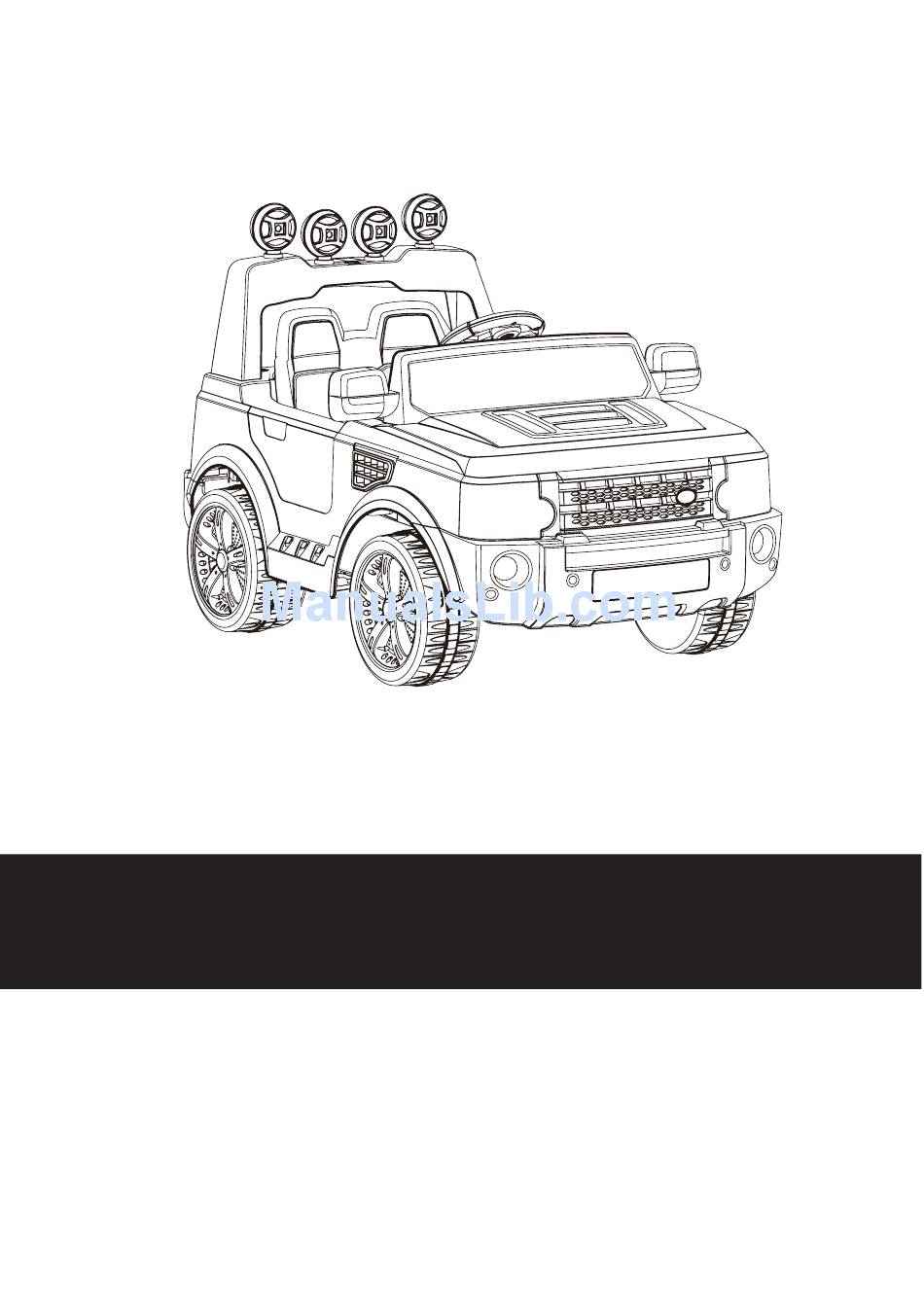

CHILDREN'S
ELECTRONIC TOY CAR
with remote control function
• Suitable for 37~96 months
• Maximum user weight: 30kg
• Adult assembly required
OWNER'S MANUAL
Read and understand this entire manual before using!
Please keep this manual for future reference as it contains important
information.
Before first time use, charge the battery for at least 4-6 hours.

Advertisement

Table of Contents
loading

Related Manuals for Jiajia JJ012A

Summary of Contents for Jiajia JJ012A

  • Page 1 CHILDREN'S ELECTRONIC TOY CAR with remote control function • Suitable for 37~96 months • Maximum user weight: 30kg • Adult assembly required OWNER'S MANUAL Read and understand this entire manual before using! Please keep this manual for future reference as it contains important information.
  • Page 2 caution WARNING CHOKING HAZARD - Small parts. Not suitable for children under 37 months. Use the vehicle on generally level ground ONLY! IMPORTANT This label means the information or assembly for One Wheel Drive version ONLY! This label means the information or assembly for Two Wheels Drive version ONLY! H/L SPEED This label means the information for High/Low Speed version ONLY! WARNING!

  • Page 3: Parts List

    Parts List Q’ty REMARKS Q’ty REMARKS PART PART PART PART Par t Par t PICTURE PICTURE (pcs) (pcs) NAME NAME Vehicle Seat body Light Window Dashboard Dashboard support Steering Gear shaft Driving Wheel wheel Front Rear wheel axle Motor Charger hood...
  • Page 4 Parts List Q’ty REMARKS Q’ty REMARKS PART PART PART PART Par t PICTURE PICTURE (pcs) (pcs) NAME NAME Placed M5x16 Ø4x12 in the machine vehicle screw screw body Placed on the M5x50 Bush steering machine wheel screw 2pcs placed on the Ø10 front axle;...
  • Page 5 Parts List Assembly package Q’ty REMARKS Q’ty REMARKS PART PART PART PART Par t Par t PICTURE PICTURE (pcs) (pcs) NAME NAME Cap nut Spanner 1pcs Ø10 Ø12 For spare for spare wahser wahser Split Ø4x12 2pcs 1pcs for spare for spare screw...

  • Page 6: Parts Diagram

    Parts Diagram Note: Some parts shown are assembled Tools Required on both sides of vehicle Screwdriver(not included) Pliers(not included) Spanner...

  • Page 7: Assembly Steps

    Assembly Steps • Your new vehicle requires adult assembly. Please set aside at least 40 minutes for assembly. Children can be harmed by small parts, sharp edges and sharp points in the vehicle's unassembled state. Care should be taken in unpacking and assembly of the vehicle.
  • Page 8 Assembly Steps ● Slide the gear box onto the Driving wheel rear axle from the left side of vehicle Ø12 body(standing at rear of vehicle). Washer Gear box ● Slide the driving wheel on to rear axle, make it match to the gear box. Ø...
  • Page 9 Assembly Steps Match with the Split pin Ø10 wahser steering gear Ø10 wahser Split pin Split pin Ø10 wahser Steering shaft ● Turn the vehicle on its side. ● Turn the vehicle on its side. Ø ● Slide a ● Insert the straight end of steering shaft through the hole in the vehicle body. And make the 10 washer *1 onto the steering shaft from the straight end, insert a split pin and bend the ends of the split pin back using a pair of paliers(PIC4-1).
  • Page 10 Assembly Steps ● Insert the tabs on the dashboard support into the holes in the vehicle body. Ø4x12 screw ● Insert the tabs on dashboard into the Dashboard holes in bonnet and make the steering Slots shaft passes through the hole in the (in vehicle body) dashboard .

  • Page 11: Battery Information

    Assembly Steps BATTERY INFORMATION Batteries may leak fluids that can cause chemical burn injury or ruin your product. To avoid battery leakage: ● Do not mix old and new batteries. ● Do not mix different types of batteries: alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium). Insert batteries as indicated inside the battery compartment.
  • Page 12 Assembly Steps ● Fit the motor hood on the motor. Motor Ø4x12 ● Tighten the Ø4x12 screws*4 to secure hood screw ● Fit the motor hood on the motor. ● Tighten the Ø4x12 screws*4 to secure ● Repeat for the other side. M5x16 machine screw Seat...

  • Page 13: How To Operate Your Vehicle

    How To Operate Your Vehicle WARNING! PREVENT INJURIES AND DEATHS: • NEVER LEAVE CHILD UNATTENDED. DIRECT ADULT SUPERVISION IS REQUIRED. Always keep child in view when child is in vehicle. • This toy should be used with caution since skill is required to avoid falls or collisions causing injury to the user or third parties.
  • Page 14 How To Operate Your Vehicle Use Operation( Ensure the power switch has been turned on IMPORTANT! Conversion Always stop vehicle switch Power switch Sound button when changing the speed or direction to avoid damage the gears and motor. Forward-backward switch Foot pedal Power switch Audio input...
  • Page 15 HOW TO USE THE REMOTE CONTROLLER ADULT OPERATING REQUIRED LEFT JOY STICK INDICATOR LIGHT RIGHT JOY STICK ON-OFF SWITCH ASSEMBLY 1. Insert the the antenna into the controller by tweak the antenna clockwisely; 2. Lift the the battery compartment door on the back of the controller and insert two AA(LR6) batteries.

  • Page 16: Charging Your Vehicle

    Charging Your Vehicle ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY! WARNING! • PREVENT FIRE AND ELECTRIC SHOCK: - Use the only rechargeable battery and charger supplied with your vehicle. NEVER substitute the battery or the charger with another brand. Using another battery or charger my cause a fire or explosion. - Do not use the battery or charger for any other product.
  • Page 17 Charging Your Vehicle 1. Open the cover of the socket (the socket is under the rear light bar) 2. Plug the charger port into the input socket. 3. Plug the charger plug into a wall outlet. The battery will begin charging. WARNING! This product with CHARGING PROTECTION: When charging, all the functions will be cut off!

  • Page 18: Troubleshooting Guide

    Troubleshooting Guide PROBLEM: The vehicle does not run ■ PROBLEM CAUSE: The battery may low on power. After each use, or once a month minimum, charge the battery for a full 10 hours. Do not leave the battery on the charger for more than 20 hours. POSSIBLE CAUSE: Thermal fuse has tripped.

  • Page 19: Maintaining Your Vehicle

    Troubleshooting Guide PROBLEM: The vehicle does not run very long. ■ POSSIBLE CAUSE: Battery may be undercharged. You may not be charging the battery long enough. After each use, or once a month minimum, charge the battery for 8 to 10 hours. Do not leave the battery on the charger for more than 20 hours. POSSIBLE CAUSE: Battery is old.

  • Page 20: Disposal Of Battery

    Disposal Of Battery Disposal Of Batter y ● Your sealed lead-acid battery must be recycled or disposed of in an environmentally sound manner. ● Do not dispose of your lead-acid battery in a fire. The battery may explode or leak. ●...
