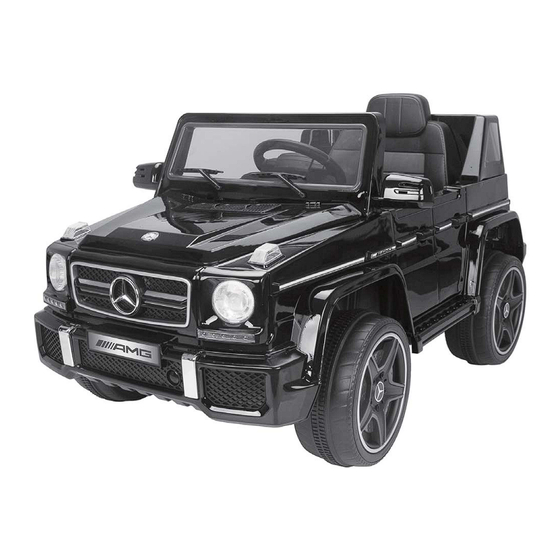

Mercedes g63 amg; children electric ride on

Advertisement

Children Electric RIDE ON
MODEL: JJ263
Styles and colo(u)rs may vary.
Made in China.
The owner's manual contains important safety information as well as assembly, use and
maintenance instructions.
The Ride-on Car must be assembled by an adult who has read and understands the
instructions in this manual.
Keep the package away from children and dispose of properly before use.
Keep this manual for future reference.
Owner's Manual
with Assembly Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JJ263 and is the answer not in the manual?

Questions and answers

Peter Weygang
February 21, 2025

The display shows fully charged, however car will not drive. There is also a beeping noise.

User image 67b8cdb8c8f13

Subscribe to Our Youtube Channel

Summary of Contents for Jiajia JJ263

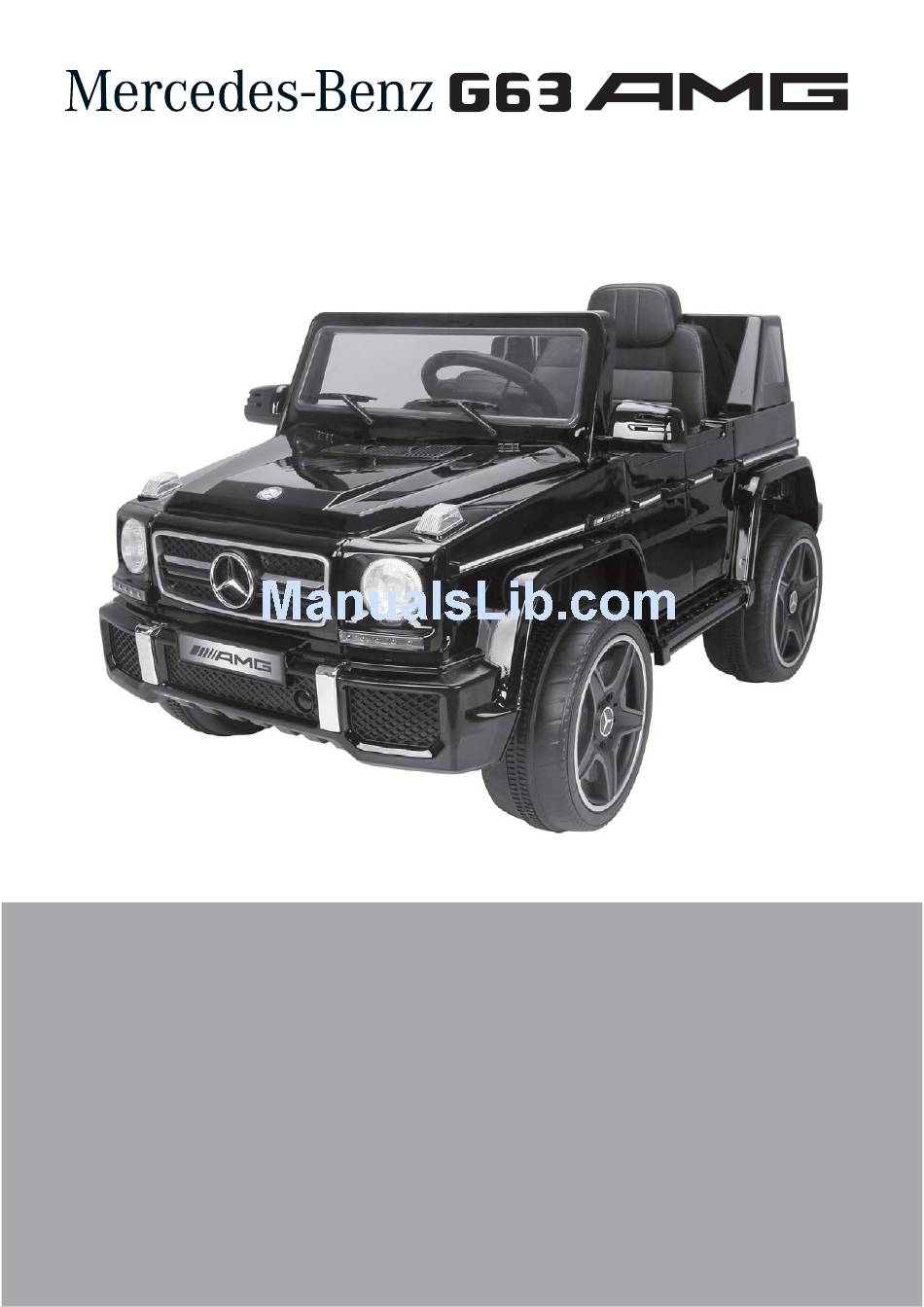

  • Page 1 Children Electric RIDE ON MODEL: JJ263 Owner’s Manual with Assembly Instructions Styles and colo(u)rs may vary. Made in China. The owner’s manual contains important safety information as well as assembly, use and maintenance instructions. The Ride-on Car must be assembled by an adult who has read and understands the instructions in this manual.
  • Page 2 “Mercedes-Benz”, and the design of the enclosed product are subject to intellectual property protection owned by Daimler AG. They are used by Zhejiang Jiajia Ride-On Co., Ltd. under license. Battery 6V7Ah*2 Charger 14.5V1000mA...
  • Page 3: Table Of Contents

    Parts List │ 2 PART REMARKS PART NAME Q’ty (pcs) Gear box One labeled “L”, and the other one labeled “R” Driving wheel Ø12 washer Bushing Normal wheel Placed in a plastic bag Motor hood IF EQUIPPED Shock tube IF EQUIPPED Shock spring Vehicle body Rear axle...
  • Page 4 Parts Diagram │ 3 NOTE: Some parts shown are assembled on both sides of vehicle...
  • Page 5: Battery Information

    Before You Begin Assembly │ 4 WARNING! • CHOKING HAZARD - Small parts. Not suitable for children under 36 months. The product contains small parts, keep children away when assembling. • ADULT ASSEMBLY REQUIRED. • Always remove protective material and poly bags and dispose before assembly. •...
  • Page 6 Attach the Rear Window │ 5 Rear View 1. Fit the tabs on the rear window into the slots on the rear vehicle. 2. Turn the vehicle body over and tighten four Ø4x16 flat head screws to secure it. Rear Bottom View...
  • Page 7 Attach the Rear Support & Side Supports │ 6 Rear Bottom View 1. Fit the rear support onto the rear vehicle. And keep the longer end of the rear support fit into the groove inside the rear bumper. 2. Tighten seven Ø4x12 round head screws to secure it with a screwdriver. 3.
  • Page 8 Attach the Rear Shock Absorber │ 7 Rear Bottom View 1. Insert the shock spring into the hole on the rear vehicle. 2. Fit the shock tube to the vehicle body. Pushing it and ensure it’s working. 3. Repeat for the other side.
  • Page 9 Attach the Rear Axle │ 8 Remove all the parts from the rear axle. 1. Insert the rear axle into the hole near the rear vehicle.
  • Page 10: Gear Box

    Attach the Rear Wheels │ 9 Driving Wheel Rear axle 1. Slide the gear box onto the rear axle. “R” labeled gear box should be fit to the “R” side of vehicle body; “L” labeled gear box should be fit to “L” side of vehicle body.
  • Page 11: Ø12 Washer

    Attach the Front Wheels │ 10 Front Bottom View Front axle Normal Wheel Remove all the parts from the front axle. Slide a Ø12 washer onto the front axle. Insert the bushing into the central hole on the wheel. Slide the normal wheel onto the front axle Tighten a Lock nut to the end of the front axle with a spanner.
  • Page 12: Vehicle Body

    Attach the Steering Column │ 11 Front Bottom View Hole in the front axle linkage Steering Gear Box Turn the vehicle body on its side. Remove the M5x22 machine screw and Ø5 from the R/C driver with a screwdriver. 1. Attach the R/C driver to the steering gear box, and make it match with steering gear box.
  • Page 13: Windshield

    Attach the Windshield │ 12 Turn the vehicle body upright. 1. Insert the tabs on the mirror into the slot on the windshield. 2. Insert the Ø4x12 round head screw through the windshield and into the mirror, and tighten it with a screwdriver. Repeat for the other mirror. 3.
  • Page 14 Attach the Steering Wheel │ 13 HINT: If the steering wheel of your vehicle equipped with the sound function, please follow the steps 1~4 to add the batteries (Not Included), and refer to the battery information on page 4. 1. With a screwdriver remove the screw on the battery cover located in the center of the steering wheel.
  • Page 15 Connect the Power Supply │ 14 Rear Top View Fuse box Vehicle connector Battery Motor connector 1. Plug the Vehicle Connector into the Motor Connector on body as shown above. Repeat for the other side. 2. Plug the Red fuse connector into the terminal on battery.
  • Page 16 Attach the Motor Hood │ 15 1. Fit the motor hood on the motor. 2. Tighten four Ø4x12 flat head screws to secure it. Repeat the above steps for the other Motor hood.
  • Page 17: Seat

    Attach the Normal Seat │ 16 1. Fit the seat board to the vehicle body. 2. Tighten four Ø4x12 roud head screws to secure it with a screwdriver. 3. Fit the tabs on the back of seat into the slots on the rear vehicle. 4.
  • Page 18: Spare Wheel

    Attach the Spare Wheel │ 17 Fit the tabs on the back of the spare wheel into the opening on the rear vehicle.
  • Page 19 Safety │ 18 WARNING! PREVENT INJURIES AND DEATHS: • NEVER LEAVE CHILD UNATTENDED. DIRECT ADULT SUPERVISION IS REQUIRED. Always keep child in view when child is in vehicle. • This toy should be used with caution since skill is required to avoid falls or collisions causing injury to the user or third parties.
  • Page 20 Use Your Ride-on │ 19 IMPORTANT! Always stop vehicle when changing the speed or direction to avoid damage the gears and motor. 1. Power Switch: Turns the vehicle on and off. 2. Forward/reverse switch: Changes the direction that vehicle moves from forward to reverse.
  • Page 21 Use the 2.4G Remote Controller │ 20 High speed indicator light emergency stop switch forward switch Normal speed indicator light Decelerate switch turn right switch power switch/connection accelerate switch Low speed indicator light built switch turn left switch HOW TO USE THE REMOTE CONTROL 1.
  • Page 22 Use The Locks On the Vehicle (IF EQUIPPED) │ 21 Steering Wheel Bottom View Lock Unlock position Lock position When the lock in the lock position, the steering wheel can control the direction of the vehicle. When the lock in the unlock position, the steering wheel can be free rotation, but CAN NOT control the direction of the vehicle.
  • Page 23: Charger

    Charging │ 20 Charging │ 22 ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY! WARNING! • PREVENT FIRE AND ELECTRIC SHOCK: - Use the only rechargeable battery and charger supplied with your vehicle. NEVER substitute the battery or the charger with another brand. Using another battery or charger may cause a fire or explosion. - Do not use the battery or charger for any other product.
  • Page 24 Charging │ 21 Charging │ 23 • The magnitude of voltage will tell you how much power is remaining in the battery when you must recharge the battery. Make sure the vehicle is stop! BATTERY MAGNITUDE OF VOLTAGE BATTERY STATE The battery is full.
  • Page 25 Battery Replacement & Fuse │ 22 Battery Replacement & Fuse │ 24 The battery features a thermal fuse with a rest fuse that will automatically trip and cut all power to the vehicle if the motor, electric system or battery is overloaded. The fuse will reset and power will be restored after the unit is turned OFF for 20 seconds and then turned ON again.
  • Page 26 Troubleshooting Guide │ 23 Troubleshooting Guide │ 25 Possible Cause Solution Problem Vehicle does not run Battery low on power Recharge battery. Thermal fuse has tripped Reset fuse, see <Fuse> Check that the battery connectors are firmly plugged Battery connector or wires into each other.
  • Page 27 Maintaining │ 24 Maintaining │ 26 • It is parents' responsibility to check main parts of the toy before using. Regular examination of transformer or battery charger for any damage to their cord, plug, enclosure and other parts, and that, in the event of such damage, toy must not be used with the transformer or battery charger until such damage has been repaired.
  • Page 28 WEEE Directive & Product Disposal At the end of its serviceable life, this product should not be treated as household or general waste. It should be handed over to the applicable collection point for the recycling of electrical and electronics equipment, or returned to the supplier for disposal.
