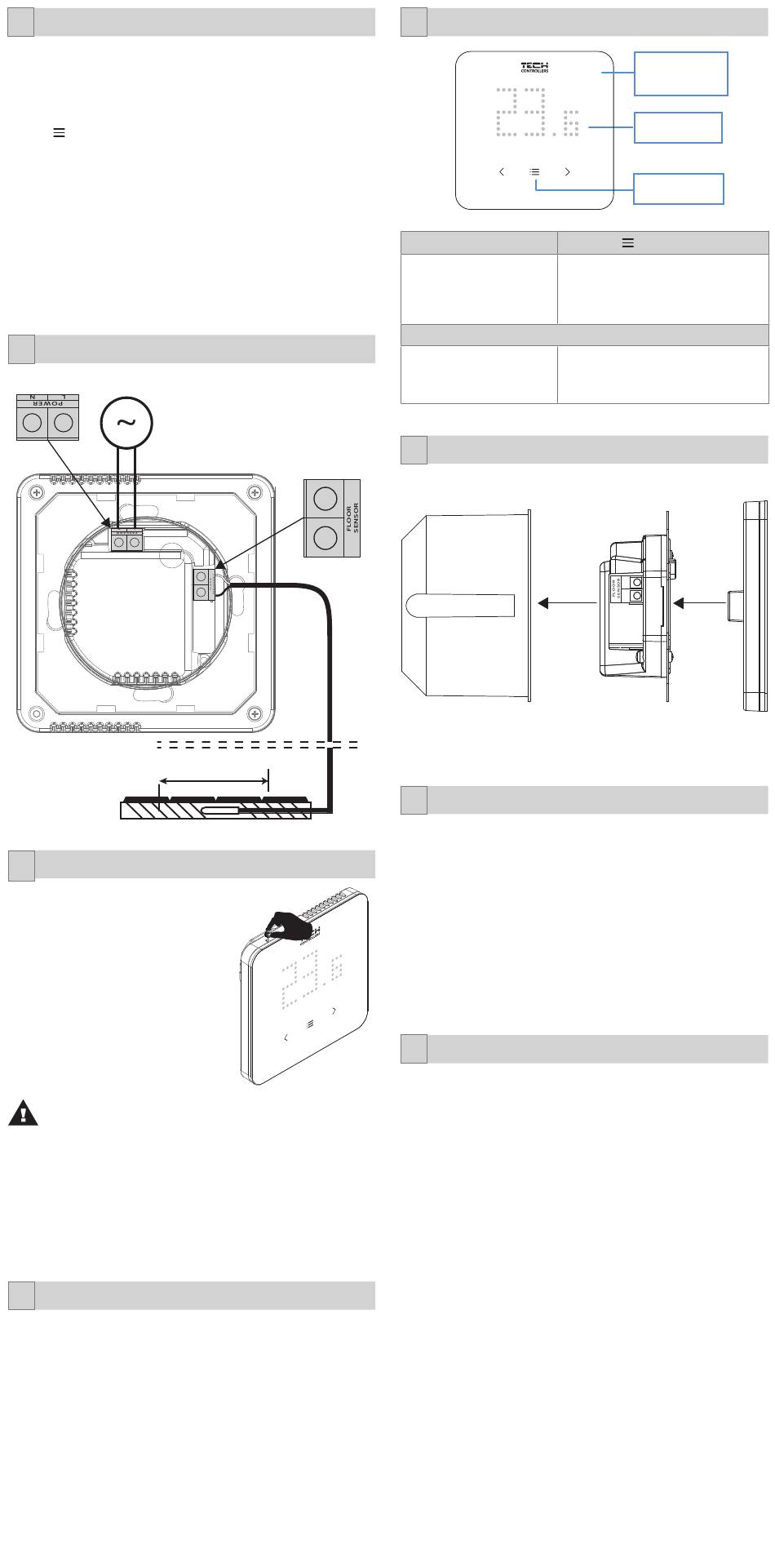

DESCRIPTION
1
The EU-R-8 LED room regulator is designed to control the heating device.
It cooperates with zone controllers communicating wirelessly with them.
The regulator is designed to maintain the set temperature in the room by
sending a signal to the heating device with information about reaching the
set temperature value.
The current temperature is displayed on the display in real time. By
pressing the middle Menu button, you can switch the display between
the room temperature, current time and humidity.
A „---" displayed on the screen indicates a faulty sensor.
The regulator, enables you to change the set temperature in the zone
permanently or with a time limit.
Regulator equipment:
• built-in temperature sensor (option of registering an additional
sensor)
• air humidity sensor
• floor sensor (optional)
INSTALLATION
3
Power supply and floor sensor connection diagram:
N L
REGULATOR REGISTRATION
5
The room regulator must be registered in a
specific zone.
From the main controller menu, select
Zones > Registration > Room Sensor
> Wireless or Fitter's menu > Zones >
Registration > Room sensor > Wireless:
1. briefly press the registration button on the
room regulator
or
2. select the function No. 7 Registration
in the Regulator Menu and press the Menu
button.
After the registration process has been
successfully completed, a relevant message
will appear on the bar display, and in the
controller display showing "Registered" or
"Registration failed" in the case of failed
registration.
CAUTION
• Only one room regulator can be assigned to one zone.
• The regulator can act as a floor sensor. To do this, connect the NTC
sensor to the regulator, select the Zone > Floor Heating > Floor
Sensor function in the respective zone in the main controller and
register by double-clicking the registration button (the second click
once the registration animation appears). The controller will display
the appropriate message whether the registration was successful.
PRE-SET TEMPERATURE
7
From the temperature screen, you can change the setpoint value using
the <> buttons. After confirming with the Menu button, the time setting
options will appear:
- 0-24H (for a specified time) - press the <> button until the desired
number of hours of applicability of preset temperature is displayed, e.g.:
1h (the preset temperature will apply for 1 hour, and then the previously
selected setting will apply: schedule or the Con constant temperature
mode). Select "0H" to return to the previously selected setting (schedule
or constant temperature). Press the Menu button to confirm the setting.
- CON (constant) - press the > button until CON is displayed (the preset
temperature will apply permanently, regardless of schedule settings).
Press the Menu button to confirm the setting.
- OFF (time setting disabled) - pres < button repeatedly until
OFF is displayed (the temperature preset of the weekly schedule
will apply). Press the Menu
230V
100cm
button to confirm
2
LED display
current temperature, time
(after registering with the
main controller),
- changes the set
temperature (at the
screen with the current
temperature)
4
Installation of individual parts of the regulator:
6
Registration rules:
- The registered regulator can be removed or disabled at the board by
disabling the "ON" option in the submenu of the zone.
- Attempt to register the regulator in a zone where another regulator is
already registered will deregister the first one and register the second.
- Attempt to register a regulator that is already registered in another zone
will deregister it from the first zone and register it in the new zone.
For every
can set
Changing these settings can be made both in the board menu
and in the
8
Holding the Menu button - enters the regulator menu.
The <> buttons navigate between individual menu items.
Pressing the Menu button - confirms the settings.
1. Sensor - Press the Menu and Registration button to register the
additional wireless sensor, and then briefly press the registration button
on the sensor. The controller will display the appropriate message whether
the registration was successful. After registering the sensor, there will be
options to view the battery and signal levels and the option to delete the
sensor.
2. Calibration - Press the Menu button to view the sensor calibration.
3. Lock - press the Menu button and select YES/NO - to activate/
deactivate the button lock. Press the Menu button to confirm the setting.
To unlock the buttons, hold down the < > buttons at the same time
until the temperature or humidity display appears.
4. Screen - Press the Menu button to adjust the screen to your needs
Backlight:
- Automatic mode - the regulator has a built-in light intensity sensor, so it
adjusts the backlight automatically
- Constant mode - the option to manually set the backlight intensity
Animations: (YES/NO) - the option to enable/disable animations on the
main screen
5. Factory settings - Press the Menu button and select YES to restore the
factory settings. Press the Menu button to confirm the setting.
After restoring the factory settings, it will be necessary to re-register the
controller with the main controller.
6. Language - Press the Menu button and select the language version.
Press the Menu button to confirm the setting.
7. Registration - registration of the regulator with the main controller.
Select the Registration function in the main controller, then the
Registration function in the room regulator and press the Menu button.
The room regulator and the controller will display the message confirming
whether the registration was successful.
8. Service menu - the function is available only to authorized persons
and is code protected.
9. Version - Press the Menu button to view the software version number.
This number will be required when contacting the service.
10. Exit - Press the Menu button to exit the regulator menu.
the setting.
REGULATOR OPERATION
- pressing - changes the preview
from the room temperature, time or
humidity, it also approves the settings
humidity
- holding - enters the Menu
<> button
- toggles between Menu items
- unlocks the buttons (hold both
buttons at the same time)
room regulator assigned
a separate temperature preset
emodul.eu application
MENU FUNCTIONS
light intensity
sensor
LED display
Menu button
Menu button
to a specific zone, you
and weekly schedule.
(after applying the module).
