HOMCOM 370-301V70 Assembly Instruction Manual page 5

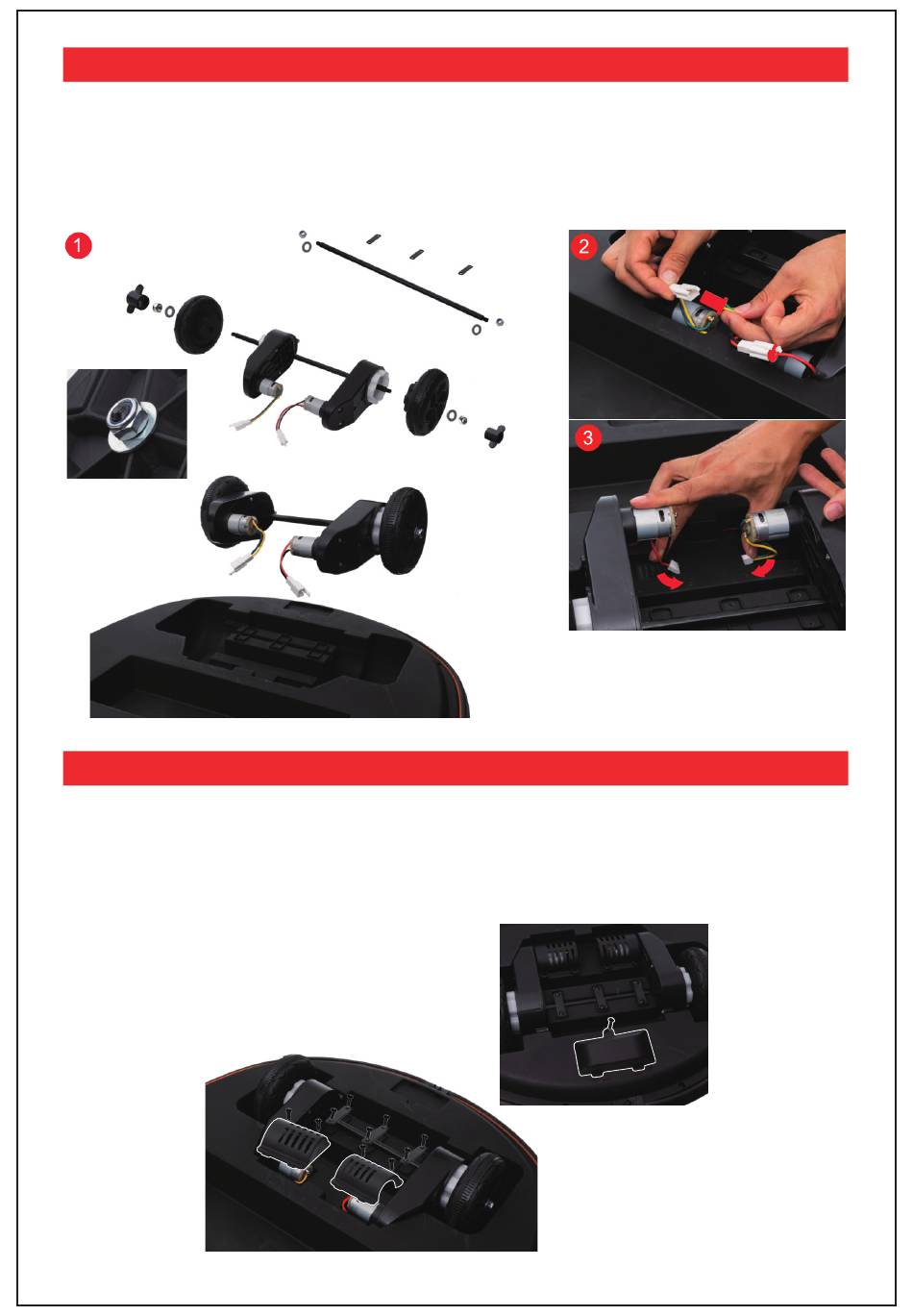

2. Install the motor and drive wheel
First remove the three clamps securing the rear axle to the baseboard. Sequentially
place the motor, drive wheel, and washer on both sides of the rear axle. Secure them
with nuts. Next, connect the wire terminals of the motor to the connector cables and
feed them through the wiring holes in the baseboard. Finally, insert the rear axle and
motor back into the baseboard.
I
E
3. Fixed pressure plate, motor cover, rear parts
According to the diagram, secure the pressure plate to the base plate using M4×12
screws.
According to the diagram, secure the motor cover to the base plate using M4×12
screws.
According to the diagram, secure the rear parts to the base plate using M4×12 screws.
B
E
J J
J
J
I
J
