Epson SureColor F1070 Quick Start Manual

Epson SureColor
®
Start Here
IMPORTANT: Before using this product, make sure you read these instructions
and the safety instructions in the online User's Guide.
Choose a Location for the Printer
Choose a location for the printer that is near a wall outlet where the power cord
can be easily unplugged. Avoid places subject to rapid changes in temperature
and humidity. Also keep the printer away from direct sunlight, strong light, or
heat sources.
Make sure to place the printer on a flat, stable surface capable of supporting
approximately 187 pounds (85 kg) and with enough space on all sides (see
illustrations below). The surface supporting the printer should be wider than
the space between the rubber feet on the bottom of the printer, between 23.6 to
31.5 in. (60 to 80 cm) off the ground, and at least 27.55 in. (70 cm) in depth.
37 in.
(94 cm)
27.55 in.
(70 cm)
19.68 in. (50 cm)
47.24 in.
(120 cm)
35.43 in.
Unpack and Place Printer
1
Make sure you have these items:

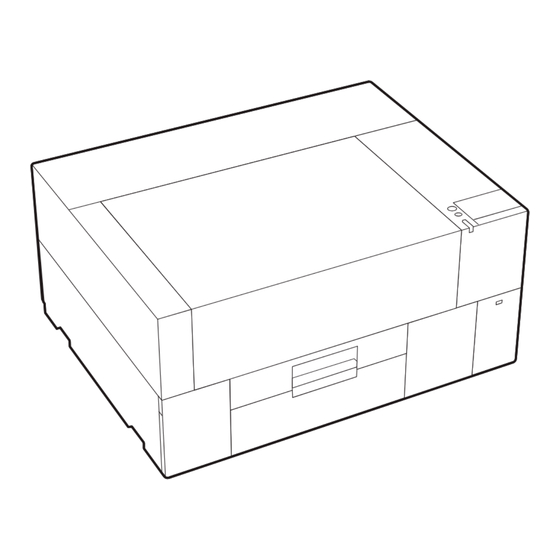

Printer
Platen and frame Grip pad
Ink packs (6)/maintenance liquid (1)
Note:
See the online User's Guide for information on installing the grip pad,
using the grip pad tool, and using the maintenance kit and tweezers.
F1070
®
29.62 in.
(75.25 cm)
24.4 in.
(62 cm)
(90 cm)
Caution label Limited warranty
Grip pad tool Tweezers
Maintenance kit Wipes
2
Remove all the packaging materials and tape. Check carefully for all the
tape inside and outside the printer and platen.
WARNING:
to grip the printer where indicated by the gray stickers as shown in the
illustration. The stickers denote the handholds under the printer where hands
should be placed. All three people should lift simultaneously to avoid tilting
the printer and trapping their hands.
3
Open the printer cover and press down on the part as shown to make
sure it is secure.
WARNING:
closing the printer cover.
4
Remove the transportation supports. Refer to the instruction sheet inside
the printer for details.
5
Open the maintenance box cover and place the caution label for your
language over the English label, if necessary.
6
Close the maintenance box cover, then close the printer cover
7
Connect the power cord to the back of the printer and plug the other
end into an outlet. (Do not connect the printer to your computer yet.)
Power cord
The printer requires three people to lift and move it. Make sure
Be careful not to trap your hands or fingers when opening or
.
