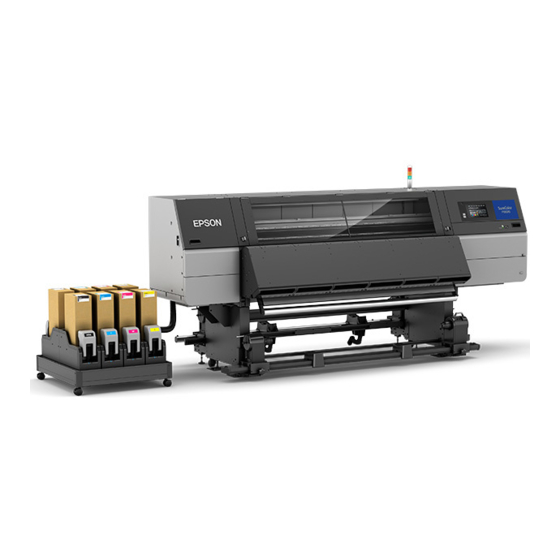

- Page 1 Epson SureColor F10070 ® ® Carton Handling and Unpacking Instructions for the Main Unit and Option Set * No Stacking * Carton Handling Instructions for Forklift * Unpacking Instructions UNPACKING Included in the Box Confidential 1...
- Page 2 SC F10070 Shipment Overview Size (ft (lb) (lb) 12.6 1259 1991 12.6 UNPACKING Included in the Box Confidential 1...
- Page 3 SC F10070 No Stacking Note： No Stacking UNPACKING Included in the Box Confidential 1...
- Page 4 SC F10070 Lifiting Points Main Unit 12.6 ft 6.56 ft 6.1 ft 3.8 ft Confidential 1...
- Page 5 SC F10070 Positioning the Forklift Main Unit Allowable load: Printer load is less than 1.5t Forklift forks thickness should be within 7.3 in. Forklift forks length 3.3 ft or more Forklift forks length 8.2 ft or more Confidential 1...
- Page 6 SC F10070 Lifting Position on Sides Main Unit 3.7 ft 3.7 ft 2.0 ft 2.0 ft 3.8 ft 3.8 ft Confidential 1...
- Page 7 SC F10070 Lifting Position on Sides Main Unit 2.62 ft Confidential 1...
- Page 8 SC F10070 Option Set Lifting Position 12'6" 6'1" 4'4" 1'87" IMPORTANT Move the box inside the building near the main unit setup location. Do not unbox the Option Set at this time. Confidential 1...
- Page 9 SC F10070 Option Set Lifting Position 3.7 ft 3.7 ft 22.2 in 0.79 in 0.79 in 0.79 in 22.4 in 22.4 in 22.2 in 0.79 in Confidential 1...
- Page 10 SC F10070 Option Set Cardboard Removal IMPORTANT 1. After moving the Option Set box to the printer setup location, remove the top and side cardboard pieces from the pallet. 2. Leave the option components on the pallet. 3. Do not open the Bundled Accessories box. Confidential 1...
- Page 11 SC F10070 Accessories Included with Main Unit Accessories Box (not packed Main Unit Accessories Box inside Main Unit box) Printer Main Unit Accessories Box (includes items below) Accessories Includes power cords and User's Guide Kit IMPORTANT Leave all accessories in their boxes and keep with the Main Unit. UNPACKING Included in the Box Confidential 2...
- Page 12 SC F10070 Main Unit Unpacking Open the Boxes 1. Unload the printer from the truck. Cutouts for the insertion are on the right side of the printer. Enlargement Remove the plastic fixing plugs by pulling them out while pinching the handles.
- Page 13 SC F10070 Main Unit Unpacking Remove the feet four corners fixing bolts (1 x 4 bolts) with a 19 mm wrench. Insert the forklift forks from the rear of the main unit. Remove the fixing brackets from the pallet with a 19 mm wrench. (1 x 4 double nuts.) Enlargement 19 mm...
- Page 14 SC F10070 Lifting Position on Main Unit Confidential 1...
