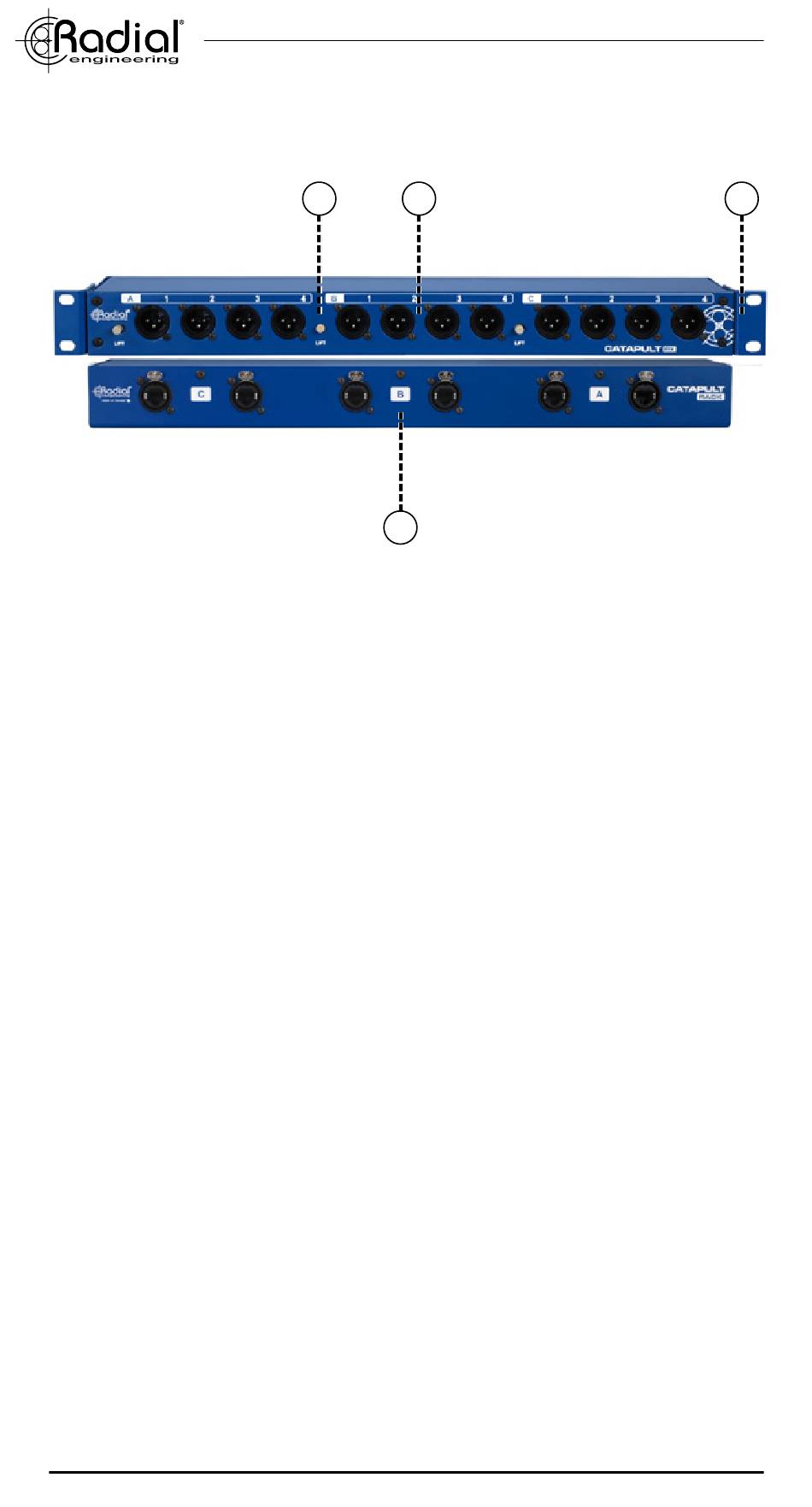

FEATURES - CATAPULT RACK RX
5. GROUND LIFT: Lifts pin-1 on all four of the corresponding XLR
connectors to remove hum and buzz caused by ground loops.
6. XLR OUTPUTS: Locking male XLRs are provided in banks of four,
each bank corresponds to a pair of rear panel RJ45 connectors to
receive analog audio over Cat 5 cabling.
7. REVERSIBLE RACK EARS: Can be placed on either side of the
Catapult Rack, allowing for the XLRs or the RJ45 connectors to face
outwards for added flexibility.
8. RJ45 INPUT AND THRU: Standard Ethernet style connectors for
receiving four channels of audio from another Catapult module.
Both connectors are wired in parallel with the front panel XLRs.
Rugged Neutrik etherCON jacks provide a robust connection for live
touring use.
