Summary of Contents for Omer TRIPARK 25

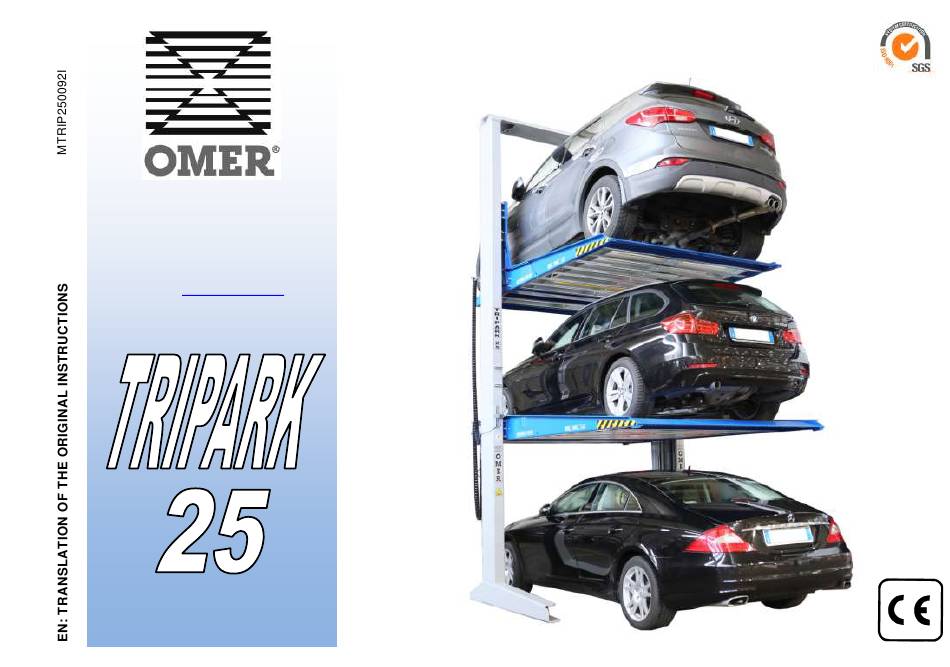

- Page 1 USE AND MAINTENANCE MANUAL O.ME.R. S.p.A. Via Galileo Galilei, 20 30035 MIRANO (VENEZIA) Italy Tel.+39 041.5700303 Fax +39 041.5700273 Numero verde 800 017745 E-Mail: info@omerlift.com www.omerlift.com Capacity 2500 Kg for each platform Noise emissions 70dB(A)
-
Page 3: Table Of Contents
STICKERS AND PLATES ............... 3-5 3.7. CUSTOMER RESPONSIBILITIES ..........3-7 3.7.1. Reference standards ............ 3-7 3.7.2. Platform documentation ..........3-8 USE ................4-1 4.1. DESCRIPTION ................4-1 4.1.1. CAR STACKER SEQUENCE ........4-1 4.2. COMMANDS ................... 4-1 cod.MTRIP250092I TRIPARK 25... -
Page 5: Symbols Used In The Manual
Non- IMPORTANT compliance with the indications can be dangerous for the operator and can damage the system. Indicates that the specific activity or operating sequence must PROHIBITION avoided cod.MTRIP250092I TRIPARK 25... -
Page 7: General Information
Pagina 1-1 di 44 1.2. Declaration of conformity GENERAL INFORMATION 1.1. Marking data Lift identification plate: cod.MTRIP250092I TRIPARK 25... -
Page 8: Installer Responsibilities
MAINTENANCE: all activities, which shall be done to keep the system in efficiency and in good condition. DPI: (PPE) Personal protection equipment. cod.MTRIP250092I TRIPARK 25... -
Page 9: Description Of The Machine
Model Electrical supply speed 400V 3ph 50Hz 35,8 0,05 230V 1ph 50Hz 0.03 TRIPARK 2500 +2500 5500+5500 208-220V 1ph 60Hz 0.03 208V 3ph 60Hz 13,5 0.05 OPERATING TEMPERATURE: INSTALLATION SITE: INDOOR FROM -10 TO 40 ° C. cod.MTRIP250092I TRIPARK 25... -
Page 10: Nomenclature
Pagina 2-2 di 44 N° DESCRIPTION 2.1. Nomenclature Columns Upper platform (2) Lower platform (1) Hydraulic control unit Command button panel Electric box cod.MTRIP250092I TRIPARK 25... -
Page 11: Stacker Dimensions And Foundation Loads
Pagina 2-3 di 44 2.2. Stacker dimensions and foundation loads cod.MTRIP250092I TRIPARK 25... -
Page 12: Type Of Platform Loading
Pagina 2-4 di 44 2.3. Type of platform loading 2.4 Maximum vehicle load distribution The vehicle can be loaded on both directions CARICO 2500Kg 1500Kg 1000Kg cod.MTRIP250092I TRIPARK 25... -
Page 13: Safety
Residual risks the certification of start-up Use as described in this manual only. Always use the accessories recommended by the manufacturer. O.ME.R. S.p.A. declines all responsibility for non-compliance with the indications given in this manual cod.MTRIP250092I TRIPARK 25... -
Page 14: Precautions
Avoid contact between parts of the body and/or clothing Do not tamper with the lift's upstroke and downstroke and moving parts. speeds, which have been adjusted by OMER during factory tests in compliance with applicable legislation. Protect the control unit adequately if used outdoors. -
Page 15: Misuse
LEAVE THE KEYS INSERTED IN THE PUSHBUTTON PANEL TAMPER WITH THE SAFETY SYSTEMS OVERLOAD THE MACHINE MACHINE OUT OF USE THE PLATFORM WHEN “MACHINE UNDERGOING MAINTENANCE” AND/OR “MACHINE OUT OF SERVICE” SIGNS SERVICE ARE POSTED machine undergoing maintenance cod.MTRIP250092I TRIPARK 25... -
Page 16: Characteristics Of The Protective Device
Pinion and rack Positioning of the platform Locks the lowering of the platform Upper platform CAR PRESENCE CHECK ON LOWER PLATFORM Photocell and reflector Lower platform Car on lower platform Stop the lifting of the platform (OPTIONAL) cod.MTRIP250092I TRIPARK 25... -
Page 17: Stickers And Plates
Pagina 3-5 di 44 3.6. Stickers and plates LIFTING PLATFORM MARKING cod.MTRIP250092I TRIPARK 25... - Page 18 Pagina 3-6 di 44 THE PLATFORM INTRUCTION NOTICE IS INSTALLED IN A CLEAR AREA NEXT TO EACH FLOOR PUSHBUTTON PANEL cod.MTRIP250092I TRIPARK 25...
-
Page 19: Customer Responsibilities
Electromagnetic compatibility (EMC) EN 61000-6-3 Safety Of Machinery - Equipment For Power Driven Parking Of Motor Vehicles - Safety And Emc EN 14010 Requirements For Design, Manufacturing, Erection And Commissioning Stages Local standards of the installation site cod.MTRIP250092I TRIPARK 25... -
Page 20: Platform Documentation
User's Manual Date performed Installation Manual (if the installation is performed by any Name of tester party other than OMER) The persons charged by the customer to receive consignment Hydraulic diagram of the lift platform Electrical diagram ... -
Page 21: Use
4.1. Description The stacker Tripark 25 is a dependent parking system for three cars, with two platforms stopping at different levels. The lower vehicle parks directly on the ground floor while the other two cars are parked one on each platform Before lowering any platform, the car parked below has to be removed. - Page 22 Platform 1 brings up platform 2 at the highest top level. After this operation, platform 1 get back at its original position at the ground floor, ready to park the second car Platform 2 is moved UP and DOWN by the Platform 1. cod.MTRIP250092I TRIPARK 25...
- Page 23 In order to park the second car, place it on top of platform 1 and, switching D1 At this point, it ready to park the third car on the ground floor button, it goes from ground floor up to the first position, stopped by a micro-switch cod.MTRIP250092I TRIPARK 25...
-
Page 25: Commands
Pagina 4-1 di 44 4.2. Commands The Command button panel must be positioned so as to guarantee the operator a full view of the machine during use. cod.MTRIP250092I TRIPARK 25... - Page 26 SELECT BUTTON RETRIEVE 2 AND KEEP PRESSED UNTIL: LIFTING OF PLATFORM 1 TO RETRIEVE THE PLATFORM 2 LOWERING OF PLATFORMS 1 & 2 UP TO GROUND COLLECT THE CAR REMOVE KEY TO DISABLE THE PUSH BUTTON BOARD cod.MTRIP250092I TRIPARK 25...
-
Page 27: Residual Risks
During manual lowering, check that the load moves TIPPING OVER OF THE Maintenance smoothly, without being thrown out of balance. MAINTENANCE LOAD technician Operate the valves so that the bridge is realigned step by step. REDUCED VISIBILITY Operator OPERATING Possible outstanding person damage cod.MTRIP250092I TRIPARK 25... -
Page 29: Maintenance
identify system cut-off switches; post signs reading “DO NOT PERFORM ANY OPERATIONS, machine undergoing maintenance” make certain that the system is not repowered while the works are in progress. cod.MTRIP250092I TRIPARK 25... -
Page 30: Routine Maintenance
PINION AND INSPECTION AND WEAR months RACK OPERATION HYDRAULIC TANK + CLEAN years UNIT FILTER HYDRAULIC TANK OIL CHANGES HYDROIL GF 46 years UNIT Periodically check the electrical safety devices and report any faults to the Service Centre. cod.MTRIP250092I TRIPARK 25... - Page 31 Pagina 5-3 di 44 LUBRICATION POINTS (to be performed symmetrically) cod.MTRIP250092I TRIPARK 25...
-
Page 32: Lift Adjustment Procedure
It must be cut perpendicular to the axis It must be burr-free. ON SITE OF INSTALLATION Manually fit the nut. OGIVE Close with wrench as follows: 0.5 TURNS for DIAMETER < 16 MM 0.75 TURNS for DIAMETER >= 16 MM TUBE cod.MTRIP250092I TRIPARK 25... -
Page 33: Pressure Relief Valve Calibration
If pressure is equal to P, close the nut loosened in point 6 by turning clockwise, paying attention not to alter the adjustment performed in point 4. Restore the hydraulic unit to the initial condition. P (*) MODEL CAPACITY TRIPARK 25 2500x2 (*) working pressure cod.MTRIP250092I TRIPARK 25... -
Page 34: Chain Maintenance Instruction
Check for the wear or breakage of some meshes Check the stretching of the chain (max 3% FLT chains, 2% for roller chains) Check for the rotation or spillage of the pins Check the cleaning of the components cod.MTRIP250092I TRIPARK 25... -
Page 35: Emergency Lowering Operation
Operate the hand pump to lift the platform Unlock the mechanical locks and keep them open with some shims (~11 mm, SEE PHOTO) Manually open the descending flow regulating valve (EV1) Let the platform go down Restore everything HAND PUMP OPTIONAL cod.MTRIP250092I TRIPARK 25... -
Page 36: By Using A Backup Panel (Optional)
If necessary, disconnect the backup panel from the power supply. Red lamp: Green lamp of of 24Vdc output 230Vac power supply voltage Yellow lamp: Selector: In case of low voltage output voltage level or damaged OFF/ON batteries, switches on cod.MTRIP250092I TRIPARK 25... - Page 37 The red warning Close EV1 light, of 24Vdc output voltage, switches on. Take the backup control panel near the electrical panel of the stacker. Turn the power switch to "0 OFF" and open the electrical panel of the stacker. cod.MTRIP250092I TRIPARK 25...
- Page 38 "1 ON". ended, turn the selector to "OFF". The red warning light, of 24Vdc output voltage, switches off. Warning: never leave the selector on "ON" to avoid a short circuit between the cables marked 0 and +24 5-10 cod.MTRIP250092I TRIPARK 25...
-
Page 39: Software Operating Specifications
Platform 2 manoeuvre request with platform 1 PLATFORM 2 STOP LIMIT ENGAGED engaged. SWITCH 2 A08-ALARM LIMIT Platform 1 place request with anti-crush bypass ANTI-CRUSH BYPASS LIMIT SWITCH SWITCH BYPASS limit switch enabled. SECURITY BAR ANTI-CRUSH LIMIT SWITCH cod.MTRIP250092I TRIPARK 25... -
Page 41: Troubleshooting
CHECK GASKETS HYDRAULIC CYLINDERS GASKETS LEAKING PLATFORM LOWERS REPLACE GASKETS CHECK JOINTS CLOSURE HYDRAULIC CIRCUITS LEAKING TUBE BROKEN OR JOINTS LOOSE REPLACE TUBING FOLLOW PROCEDURE TO PURGE AIR FROM HYDRAULIC CYLINDERS FILLING AIR IN HYDRAULIC CIRCUIT HYDRAULIC CIRCUIT cod.MTRIP250092I TRIPARK 25... - Page 42 PLATFORM 1 COMMANDS NOT LIMIT SWITCH NO ADJUSTMENT OR PLATFORM 2 STOP LIMIT SWITCH ADJUST OR REPLACE THE LIMIT SWITCHES WORKING DAMAGED PLATFORM 2 COMMANDS NOT PHOTOCELL (OPT) PHOTOCELL NOT WORKING CHECK AND/OR REPLACE THE PHOTOCELL WORKING cod.MTRIP250092I TRIPARK 25...
-
Page 43: Accessories
Pagina 8-1 di 44 8. ACCESSORIES CODE DESCRIPTION PHOTO SPRINKLER ATTACHMENT PLATES EMERGENCY LOWERING 3047002400 BACKUP CONTROL PANEL PUSH-BUTTON ARM HOLDER PLATES 1120109011 HAND PUMP METALLIC TANK PHOTOCELL KIT FOR CAR PRESENCE ON PLATFORM 1 cod.MTRIP250092I TRIPARK 25... - Page 44 Pagina 8-2 di 44 cod.MTRIP250092I TRIPARK 25...
