Summary of Contents for Volkswagen VAS 6558/19

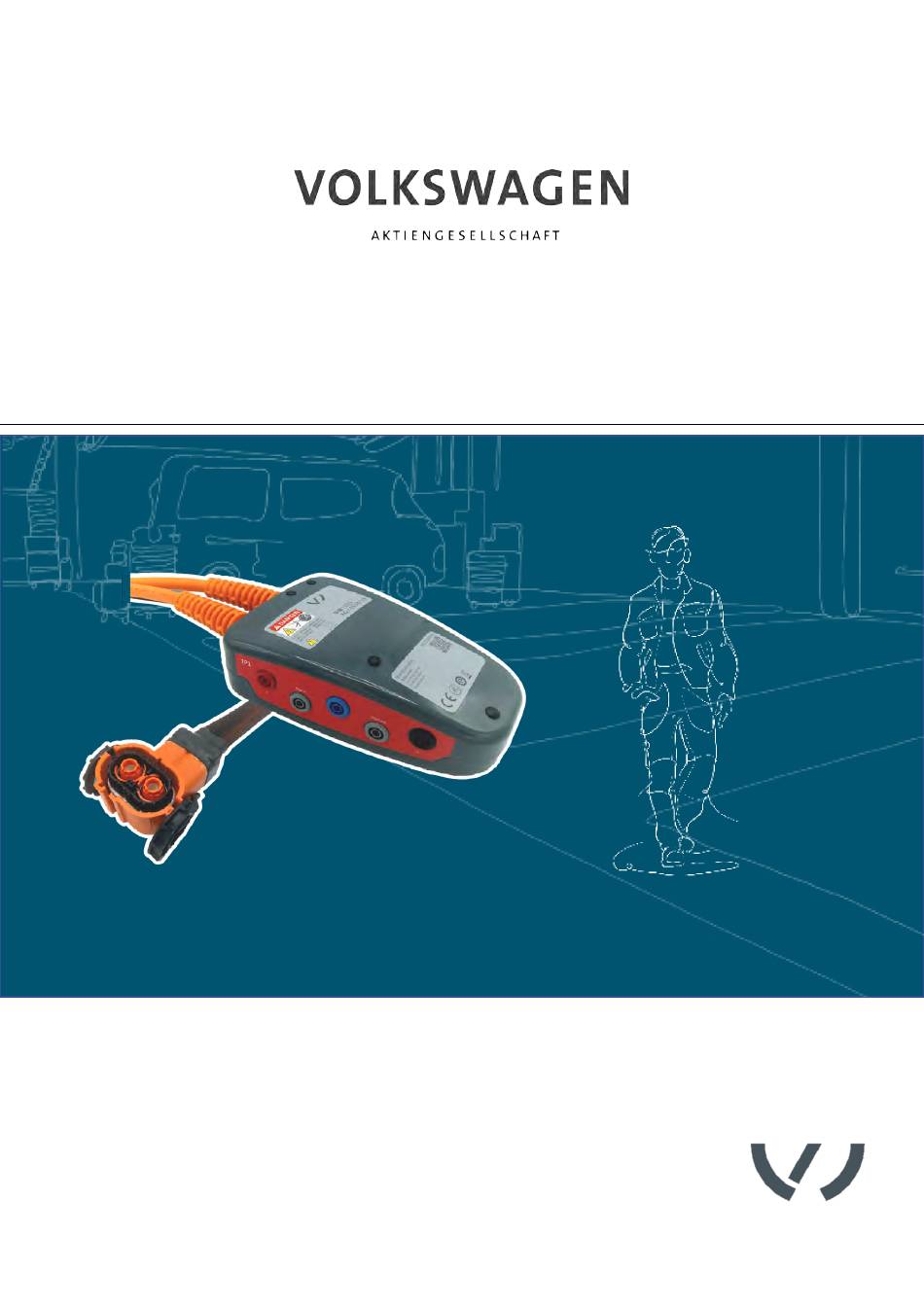

- Page 1 Operating manual H i g h - v o lt a g e t e s t a da p t e r V A S 6 5 5 8 / 1 9 12.VW.2210.0591_BA_V05_EN VAS 6558/19...
-
Page 2: Legal Notice
Symbols for warnings, prohibitions, mandatory actions and standards are taken from publicly accessible sources, such as the Internet. CAD product images and product photos are provided by the manufacturer. Images showing the product in use are provided with a reference to the source. 12.VW.2210.0591_BA_V05_EN VAS 6558/19... -
Page 3: Table Of Contents
Requirements for the target group Duties of the operator PRODUCT DESCRIPTION Scope of delivery Design Symbols and connections Wiring diagram Technical data OPERATION Startup Detaching the plug connections Detaching the high-voltage plug connection Cleaning Storage Disposal Maintenance HELP Warranty Customer service 12.VW.2210.0591_BA_V05_EN VAS 6558/19... -
Page 4: Introduction
STODIA's portfolio also includes smart charging and battery technology, diagnostic systems, battery and cell management, and vehicle-wide measurement and diagnostic technology. With experience in both software and hardware development, STODIA GmbH is your dependable partner at every production stage, from prototyping to series production. 12.VW.2210.0591_BA_V05_EN VAS 6558/19... -
Page 5: Safety
This operating manual is only valid for the following product: Item number 22100591 Designation High-voltage test adapter VAS 6558/19 Warning levels This chapter provides information about the warning levels used in this operating manual. DANGER Failure to observe the safety instructions WILL result in death or serious injury! -
Page 6: Intended Use
The product is suitable for the following measurements: • Insulation resistance measurement • Continuity measurement In this operating manual, vehicle manufacturers are exclusively defined as vehicle manufacturers in the Volkswagen Group. Any use beyond what is listed here is prohibited. 12.VW.2210.0591_BA_V05_EN VAS 6558/19... -
Page 7: Requirements For The Target Group
The operator is also responsible for ensuring that the following conditions are met: • The measurement adapter is always in perfect working order. • The regular inspection intervals for the measurement adapter are observed and recorded. 12.VW.2210.0591_BA_V05_EN VAS 6558/19... -
Page 8: Product Description
Immediately check the condition of the product and the completeness of the delivery. If anything is missing or defective, please contact the manufacturer immediately. (1) High-voltage test adapter (2) USB stick with operating manual Design Product design: (1) Socket (2) Test sockets (see wiring diagram) 12.VW.2210.0591_BA_V05_EN VAS 6558/19... -
Page 9: Symbols And Connections
Indicates which measurement categories the product is intended for according to IEC CAT I Umax = 1.000V CAT II Umax = 600V 61010-31. The rated voltage is based on the measurement category. CAT III Umax = 300V QR code for accessing the product documentation on mobile devices. 12.VW.2210.0591_BA_V05_EN VAS 6558/19... -
Page 10: Wiring Diagram
EN | Product description The product has the following test sockets: Connector Function Ground socket Positive socket Negative socket Pilot socket Wiring diagram 12.VW.2210.0591_BA_V05_EN VAS 6558/19... -
Page 11: Technical Data
Elevation above sea level Max. 2000 m No limitation. Humidity Max. 80% up to 31°C, Max. 85% decreasing linearly to 50% at 40°C Pollution rating Condensation Not permitted. Maximum permissible relative humidity: 60% in environments with corrosive gas/air. 12.VW.2210.0591_BA_V05_EN VAS 6558/19... -
Page 12: Operation
The electrical voltage in high-voltage systems is lethal and can cause death by electric shock! • Use the product only for the applications intended by the vehicle manufacturer! Observe the safety instructions. Connect the plug to the disconnected socket of the connection you want to test. Lock this connection. 12.VW.2210.0591_BA_V05_EN VAS 6558/19... -
Page 13: Detaching The Plug Connections
Make sure that the lever (red) is pulled out. Push the locking mechanism (gray) in and pull the plug connection completely apart. Swivel the clip (black) upward. This motion pushes the plug connection apart. The plug connection is now detached. 12.VW.2210.0591_BA_V05_EN VAS 6558/19... -
Page 14: Cleaning
Observe the safety instructions! National and local requirements for regular testing must be observed! Test the product for proper function at intervals of no more than 24 months. Contact the manufacturer to have a professional function test performed. 12.VW.2210.0591_BA_V05_EN VAS 6558/19... -
Page 15: Help
Always include the item number and, if available, the serial number with any product queries. Both numbers are found on the product. STODIA GmbH Battery and Diagnostics Technology Im Freitagsmoor 45 38518 Gifhorn, Germany Phone: +49 (0) 5371 / 945 93 96-0 service@stodia.de www.stodia.de 12.VW.2210.0591_BA_V05_EN VAS 6558/19... - Page 16 Volkswagen Aktiengesellschaft K-GVO-LW Group After Sales – Group Service Literature and Systems Repair Shop Equipment PO box 011/4915 38442 Wolfsburg, Germany For internal use only Subject to technical changes Edition 01/2024 12.VW.2210.0591_BA_V05_EN VAS 6558/19...
