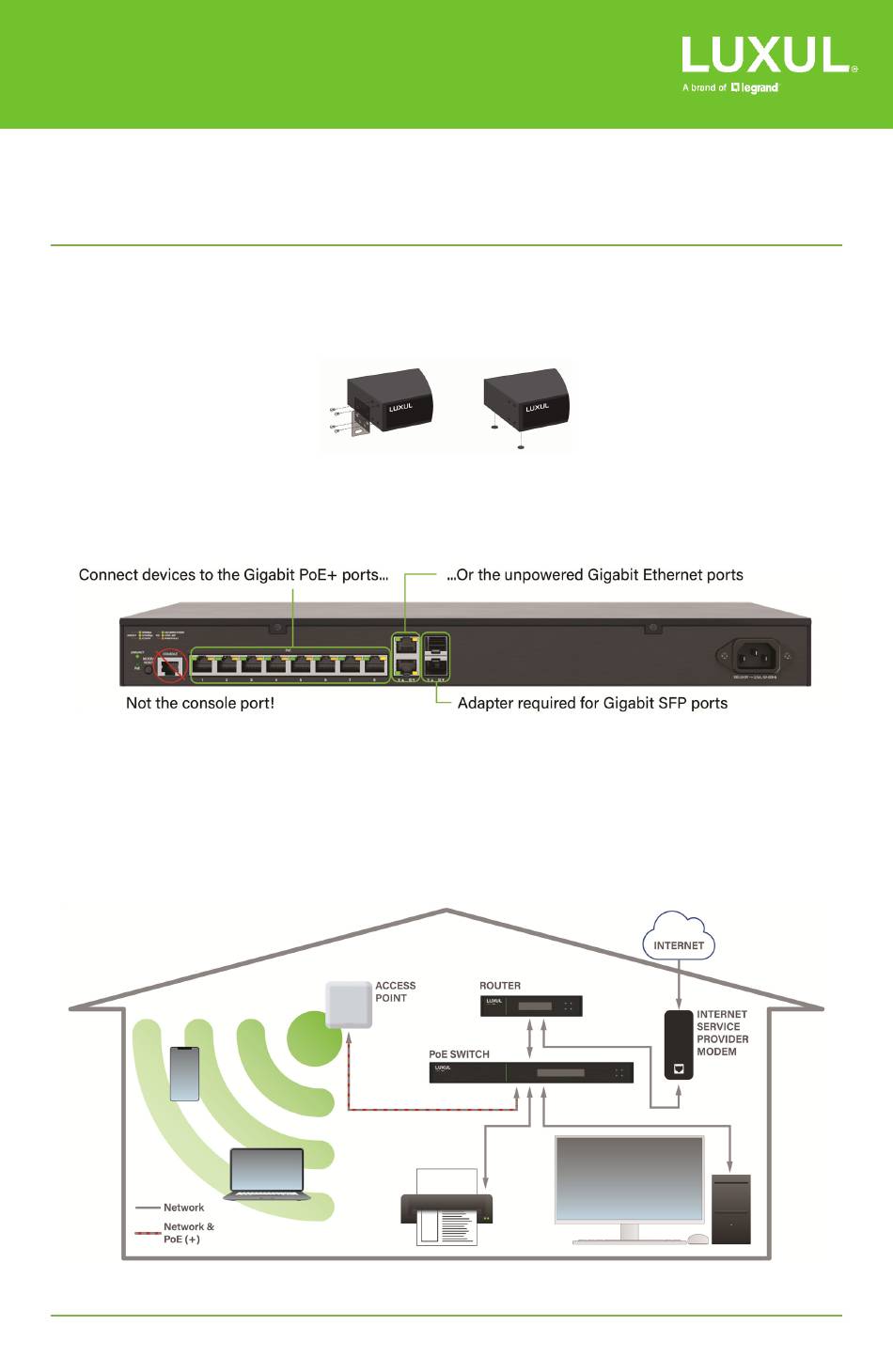

SW-505-8P-R Managed PoE+ Switch
Quick Installation Guide
Placement
1. Attach either the rack mounting ears or the adhesive feet.
2. If applicable, mount the device in the rack.
Connections for service
1. Connect one of the LAN ports on your router to one of the unpowered Gigabit Ethernet
ports on the switch.
2. Connect your PoE/PoE+ powered devices to the Gigabit PoE+ ports.
3. Use either the unpowered Gigabit Ethernet ports or the SFP ports (with the
appropriate modules) for devices that have their own power. SFP modules are not
included with this product.
4. Connect the power cord to the switch and to a properly grounded power outlet. The
switch takes a minute or more to boot.
Document 411-3003-01 Rev D June 2023
