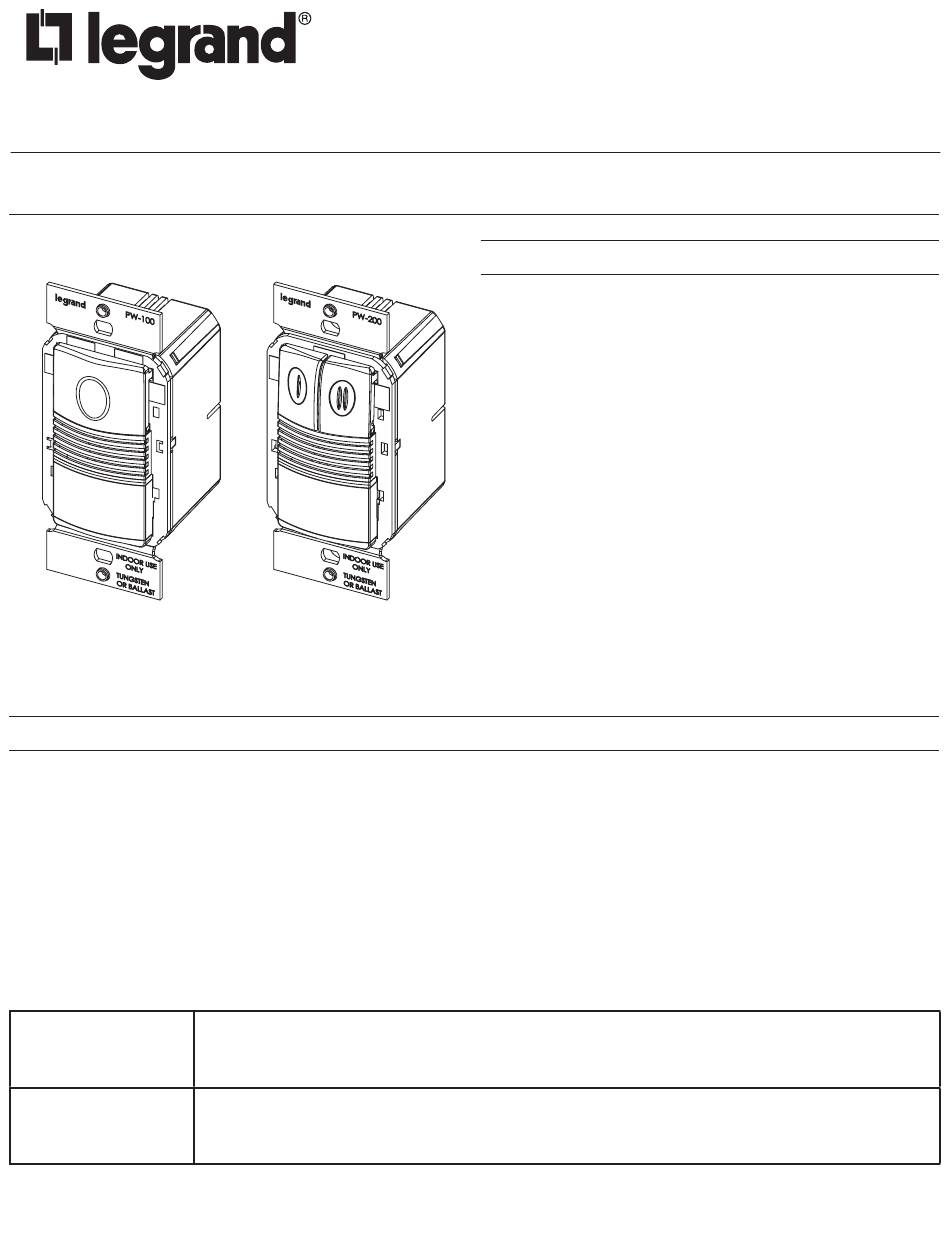

LEGRAND PW-100 Installation Instructions Manual

No: 23950 – 10/18 rev. 3
Catalog Numbers • Les Numéros de Catalogue • Números de Catálogo: PW-100/PW-100-347/PW-200/PW-200-347
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
PW-100

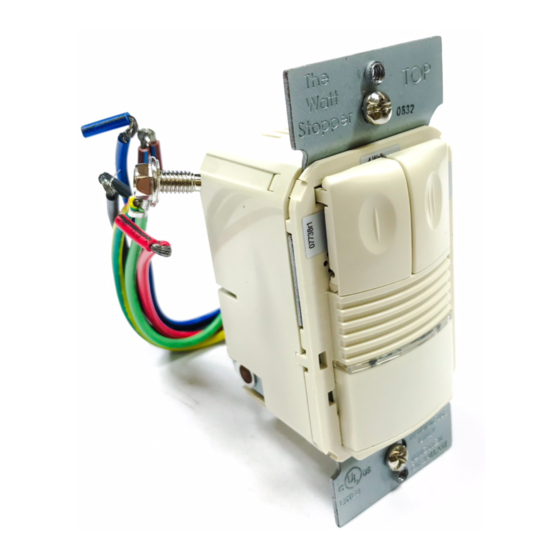

The PW Passive Infrared Wall Switch sensors use advanced passive infrared (PIR) technology.
The PW sensor can turn a load on, and hold it on as long as the sensor detects occupancy. After no movement is detected for the
selected time delay, the lights switch off. A "walk-through" mode can turn lights off after only 3 minutes, if no activity is detected after 30
seconds following an occupancy detection.
The PW-100 has one relay and one ON/OFF button. The PW-200 contains two relays and two ON/OFF buttons to allow control of one
or two loads independently. Pressing a button toggles the state of the corresponding relay.
PW sensors contain a light level sensor. If adequate daylight is present, the sensor holds the load OFF until light levels drop, even if the
area is occupied. In the PW-200, light level only affects the load on Relay 2. Users can overrule the hold OFF function by pressing the
ON/OFF button. See Light Level Adjustment.
Turning Load(s) ON (ON Mode)
The relays are programmed independently for either Auto ON or Manual ON. In either mode, the load can be turned ON or OFF using
the ON/OFF button.
Manual ON
DIP 8 ON for Relay 1
DIP 9** ON for Relay 2
Auto ON
DIP 8 OFF for Relay 1
DIP 9** OFF for Relay 2
** PW-100: Switch 9 is not used. PW-200: Switch 9 default is ON to comply with CA Energy Commission Title 24 bi-level switching
requirements.
PW-200
DESCRIPTION AND OPERATION
With an ON Mode DIP switch in the ON position, the occupant must press the ON/OFF button to turn ON
the load. The sensor keeps the load ON until no motion is detected for the selected time delay. There is a
30 second re-trigger delay. If occupancy is detected during the delay, the sensor turns the load back ON.
After the re-trigger delay elapses the ON/OFF button must be pressed to turn ON the load.
With an ON Mode DIP switch in the OFF position, the load turns ON and OFF automatically based on
occupancy. If the load is turned OFF manually, Presentation Mode operation applies. This prevents the
load from turning ON automatically after it was deliberately turned OFF. Pressing the button to turn lights
ON returns the sensor to Auto ON mode.
Wattstopper
Passive Infrared Wall Switch Occupancy Sensor (version 3)
Détecteur de présence interrupteur mural infrarouge passif (v3)
Sensor de ocupación con interruptor a la pared y tecnología de
infrarrojo pasivo (v3)
Installation Instructions • Instructions d'Installation • Instrucciones de Instalación

SPECIFICATIONS

Voltages:
PW-100 & PW-200 .......................................120/277VAC, 50/60Hz
Load Limits for each relay:
@120VAC ...............................0-800W tungsten or ballast, 1/6 HP
@277VAC .............................................................0-1200W ballast
Load Type Compatibility:
Incandescent, fluorescent, magnetic or electronic ballast
Horsepower Rating (each relay) ........................ 1/6 HP @120VAC
Time Delay Adjustment .................................................. 5 to 30 minutes
Walk-Through Mode ................3 minutes if no activity after 30 sec.
Test Mode ...................... 5 sec. for 10 min. with DIP switch setting
PIR Adjustment ................................................ High or Low (DIP switch)
Light Level Adjustment ....................................................... 8fc to 180+fc
Alerts ........................................................... Selectable Audible & Visual
US Patents: 5640113, 6617560
®
